Welcome to the power plant section,  If you are purchasing three or more items please contact us for discounted delivery charges.  Please be sure to check this section on a regular basis as new products are added weekly.

1

Click to enlarge the picture

This belongs in the instruments section as it is closely related to RPM indicator's listed in these pages.

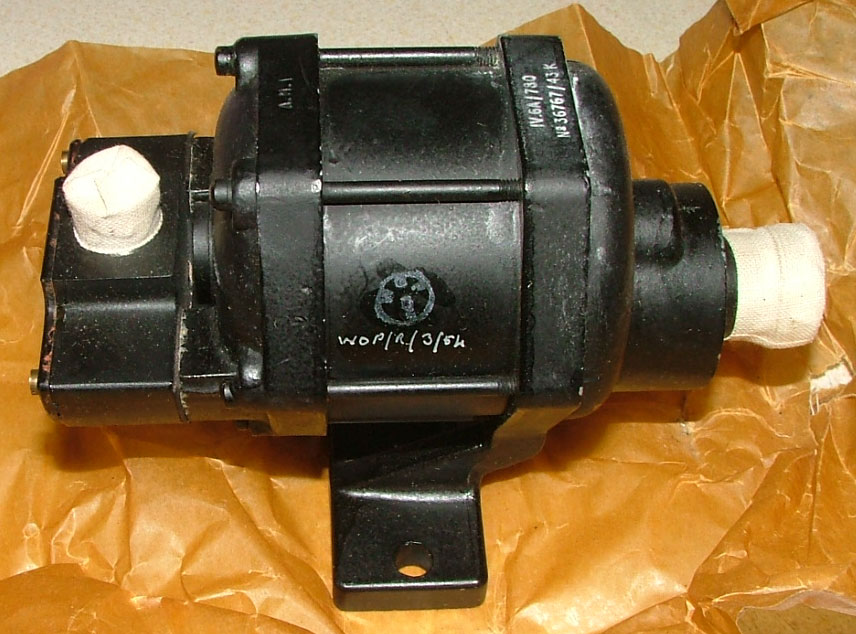

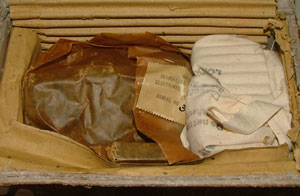

RPM Counter drive(pg10 ins)

This is in superb boxed serviceable condition (subject to required check's and permits only opened for the picture and immediately resealed. These drives were connected to the Merlin by the normal direct drive cable that  powered the mechanical Rev counters .It generates an electric current and power's the electrical type RPM indicator. This  type of indicator was used where it was impractical to use direct drive cable's. They were used in all Mk's of Lancaster's and many other Bombers where the cockpit or engineers panel was far remote from the engine. It was actually used to power the RPM gauge in the rear cockpit of the very rare two seat Spitfire's. These do appear from time to time but never in this condition, this should end up on a flying aircraft.

Click here to see this in the instrument's section

The first Griffons had single-stage superchargers, and were fitted to the Spitfire MK XII.

These aircraft arrived just in time to take on the Focke-Wulf 190 "Tip and Run" fighter bombers that were attacking England's South Coast. Their impressive low-level performance was used to good effect.

Click on pictures to enlarge

For high altitude a two-stage supercharger was needed and these arrived in the Spitfire XIV

and XVIII. This enabled the Spitfire to stay in the forefront of fighter performance until the end of the war

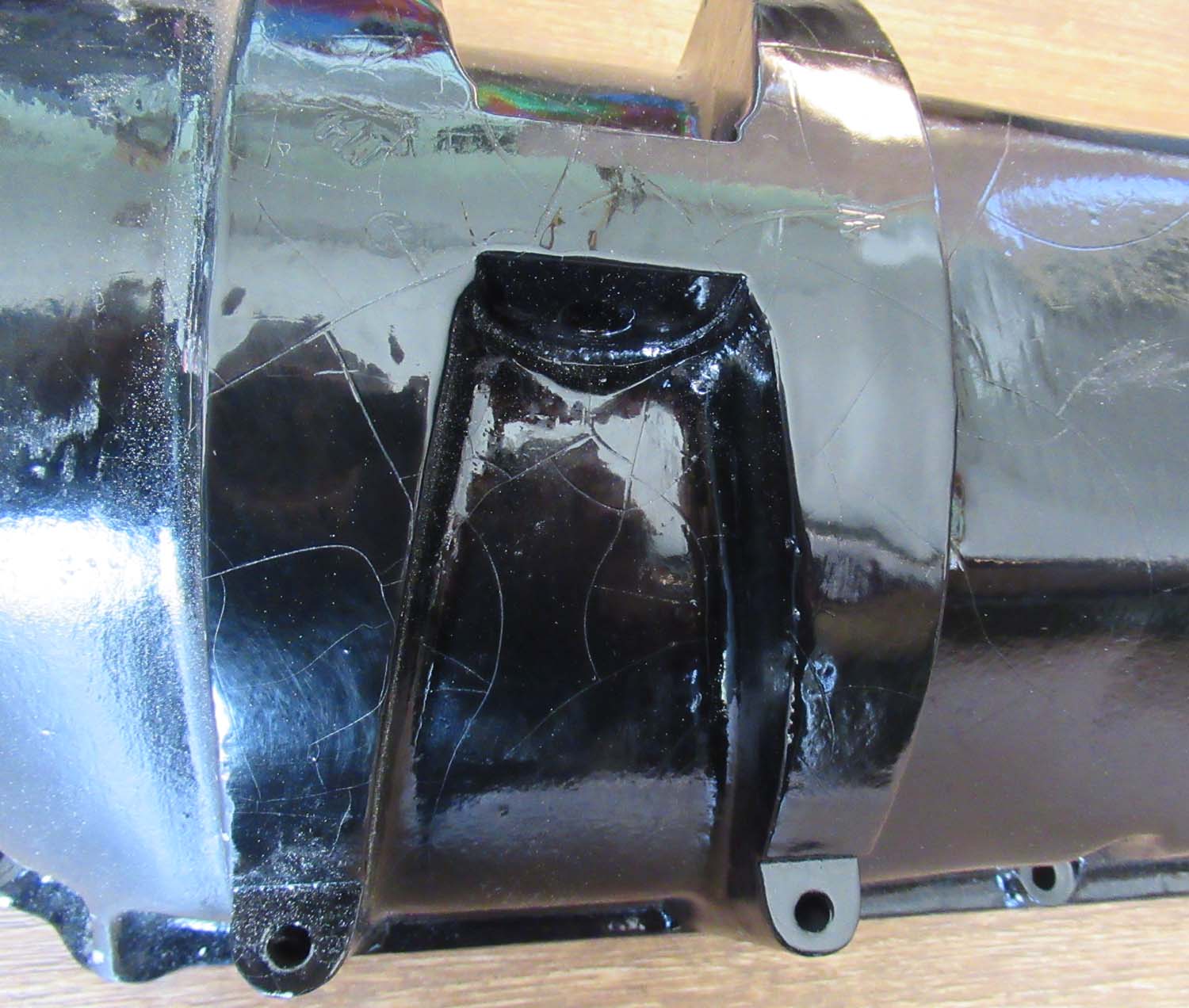

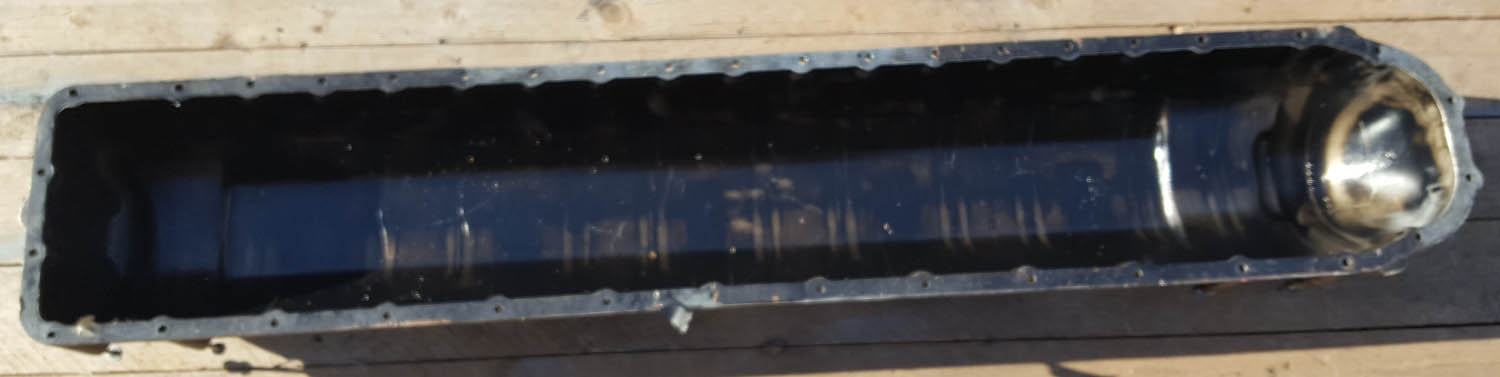

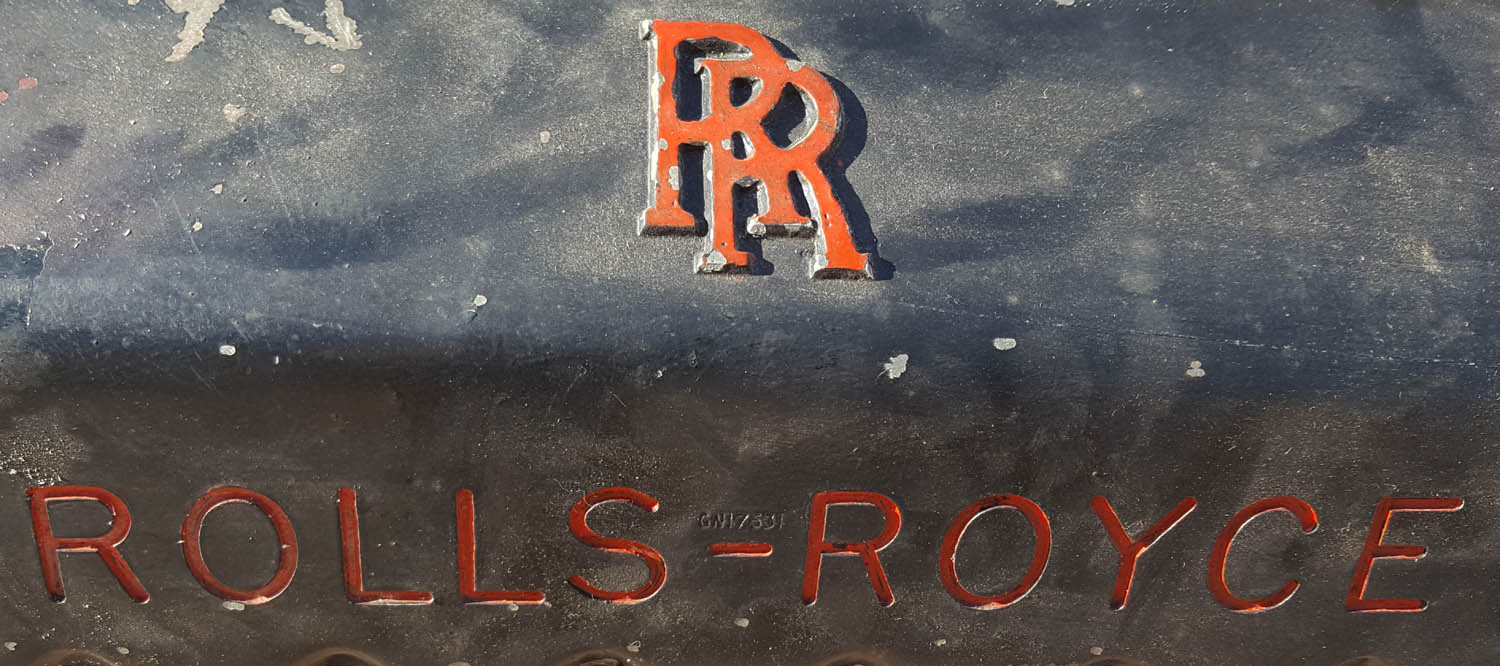

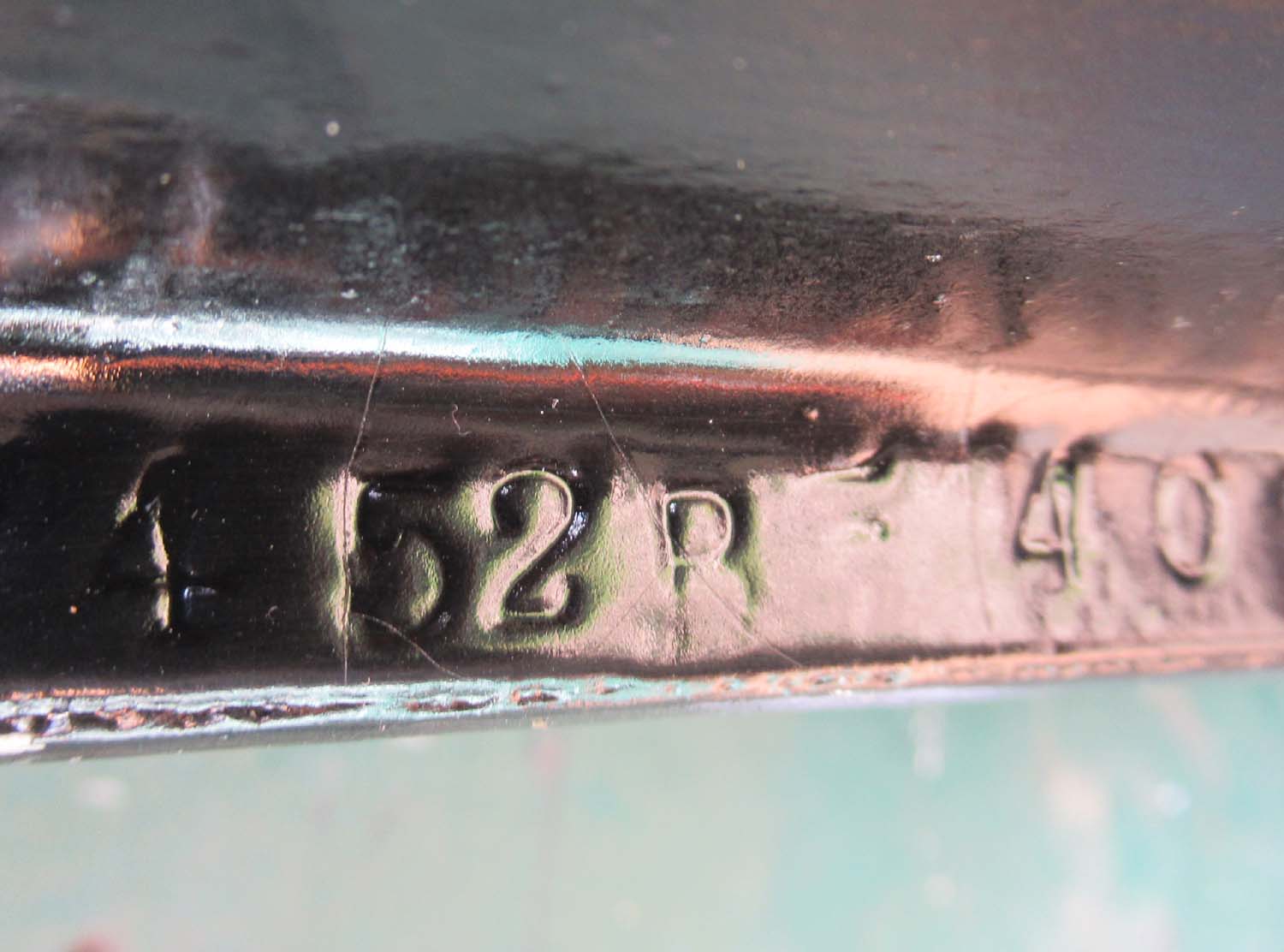

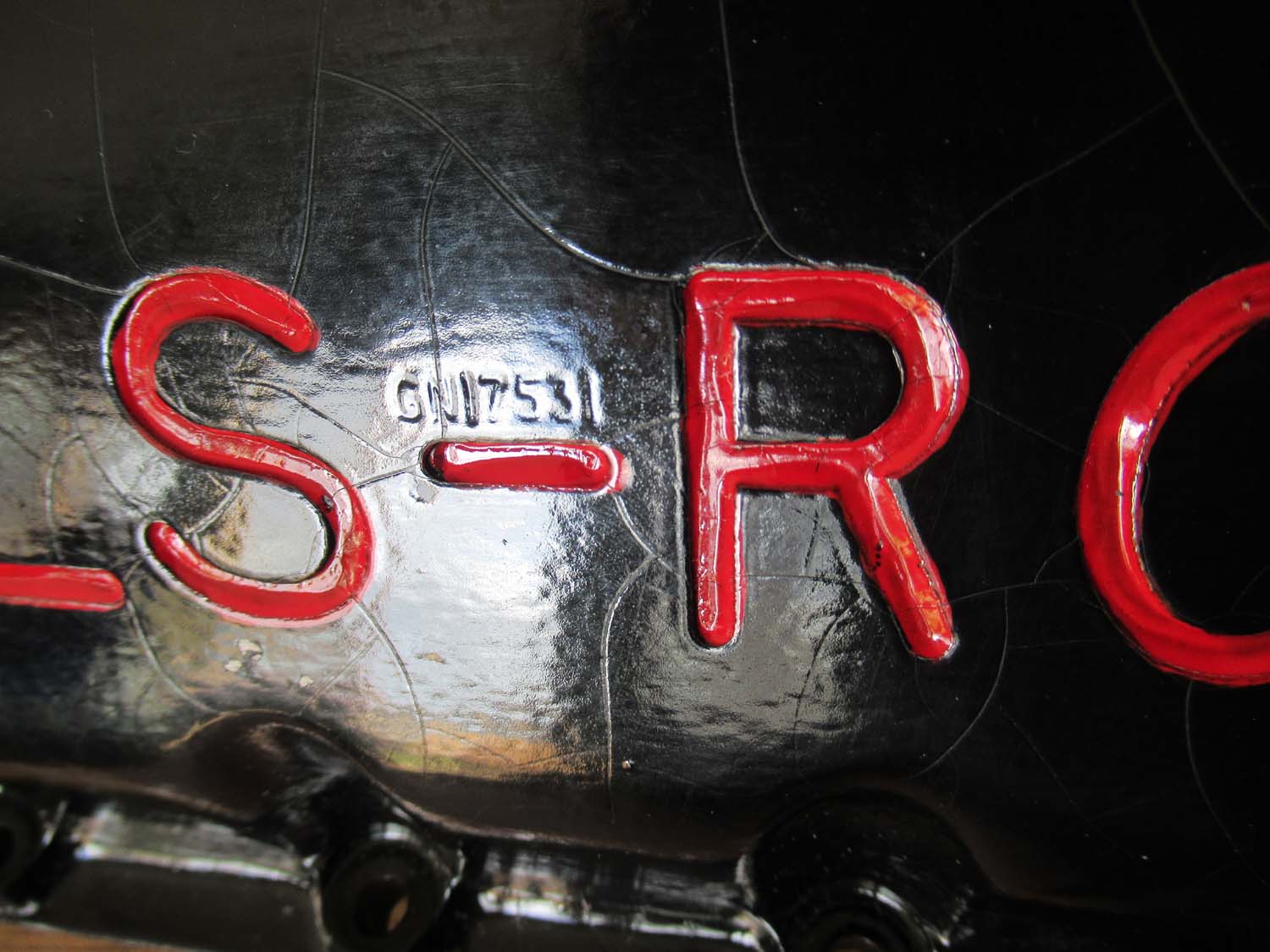

Rolls Royce Griffon Engine Rocker Cover 1 (pg1 pwr)

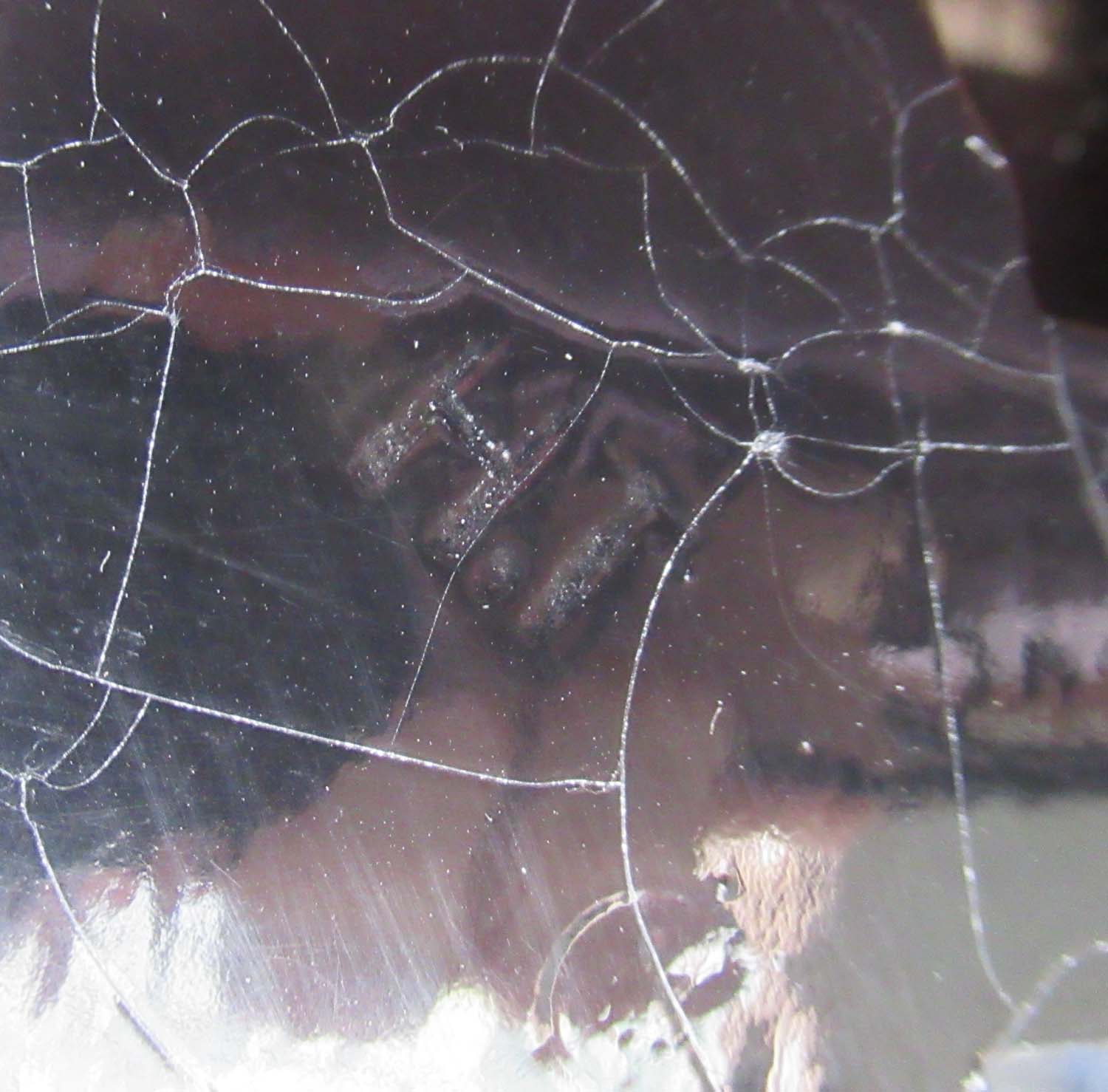

This is a  rocker cover from a Rolls Royce Griffon. The Griffon was a 36 Litre monster replacement for the Merlin, its in good condition with some cracking to the paint but overall perfect for display.

The cover is straight.

Click on pictures to enlarge

Other aircraft which used the Griffon engine were the Firefly naval two-seat fighter, and the Avro Shackleton Maritime patrol aircraft .

Sorry now out of stock more always wanted please contact me

This is a large heavy item overseas buyers please contact me for a shipping quote.

Click on the pictures to enlarge

Out of stock more required please contact me

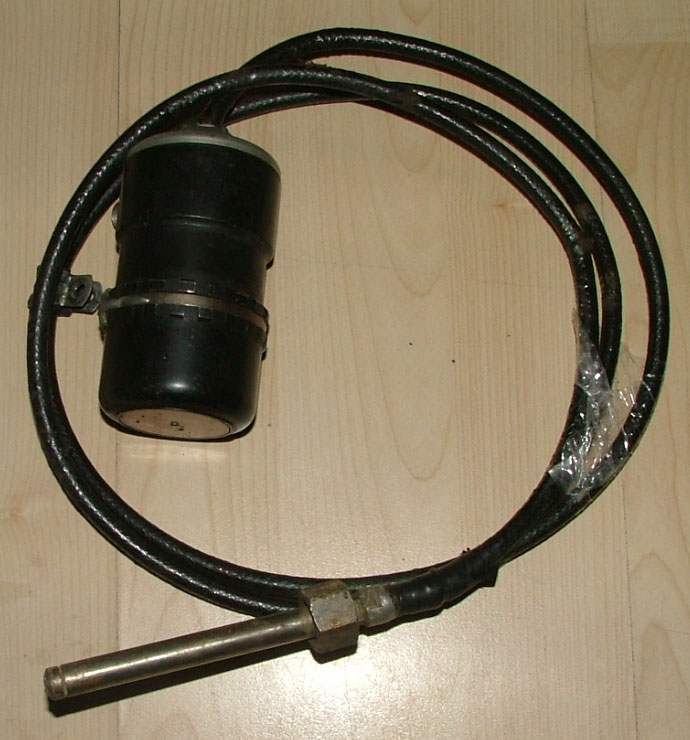

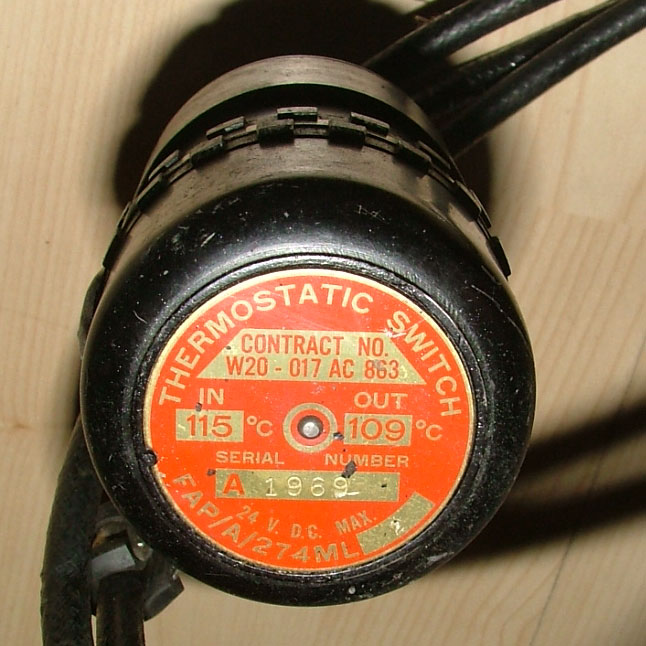

RAF RCAF (MERLIN ENGINE) RADIATOR SHUTTER THERMO SWITCH (pg1 Pwr)

LANCASTER BOMBER MERLIN ENGINE RADIATOR SHUTTER THERMO SWITCH. THIS SWITCH WAS REMOVED FROM LANCASTER BOMBER FM 215 AS TIME EXPIRED OCT 26/1959.

Superb item with great provenance, connection to both Merlin and Lancaster. A very rare event is to have a picture of the actual aircraft a part has been removed from, the part was almost certainly in situ when this picture was taken of

Lancaster  FM 215.

History of Lancaster FM 215

TOS 21.8.45 in RCAF; was the 4th. Converted by Avro Canada to Mk.10P; issued to #408(P) Squadron with code 'MN215'; did extensive test on SHORAN; was used for short time at Winnipeg as a SAR aircraft with #111 Composite Unit about Aug. 1959; SOC 28.9.62

Click on the picture to enlarge

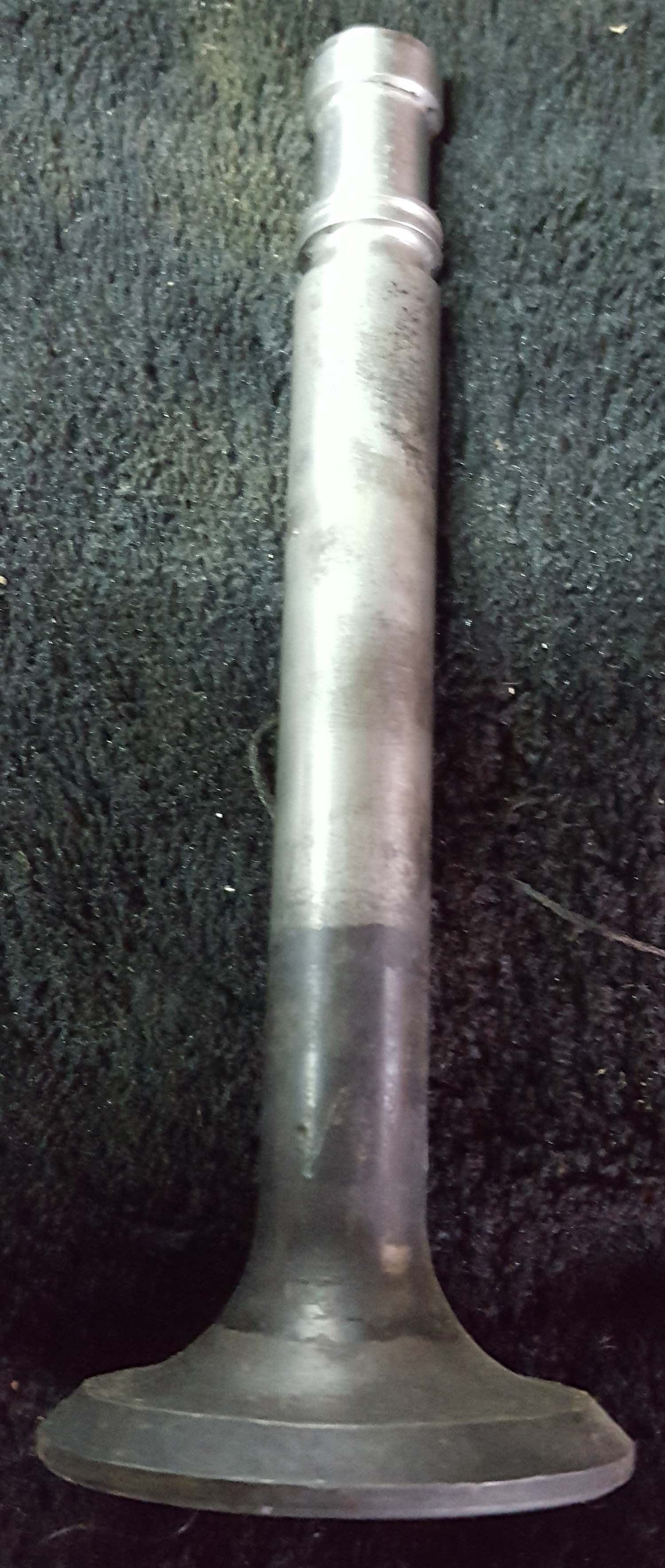

Rolls Royce Griffon Valve (pg1 pwr)

Here we have a Rolls Royce Griffon valve.

The Griffon engine followed the Merlin into the Spitfire starting with the MK XIV and other front line WWII and post war aircraft. At 36 Litres it was considerably more powerful than the Merlin whilst being physically slightly bigger. The Griffon went on to power RAF aircraft into the 1950's notably the Avro Shakleton.

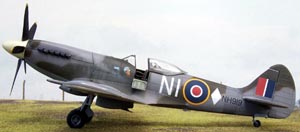

Shown above the Mk XIV Spitfire fitted with a Griffon engine , note the bubble canopy 5 blade prop larger tail and slightly extended nose to accommodate the extra power and size of the Griffon.

Out of stock more wanted contact me

Click on the pictures to enlarge them

Out of stock more Merlin parts and complete engines always wanted please contact me

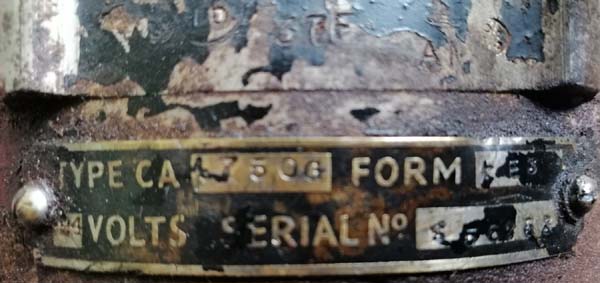

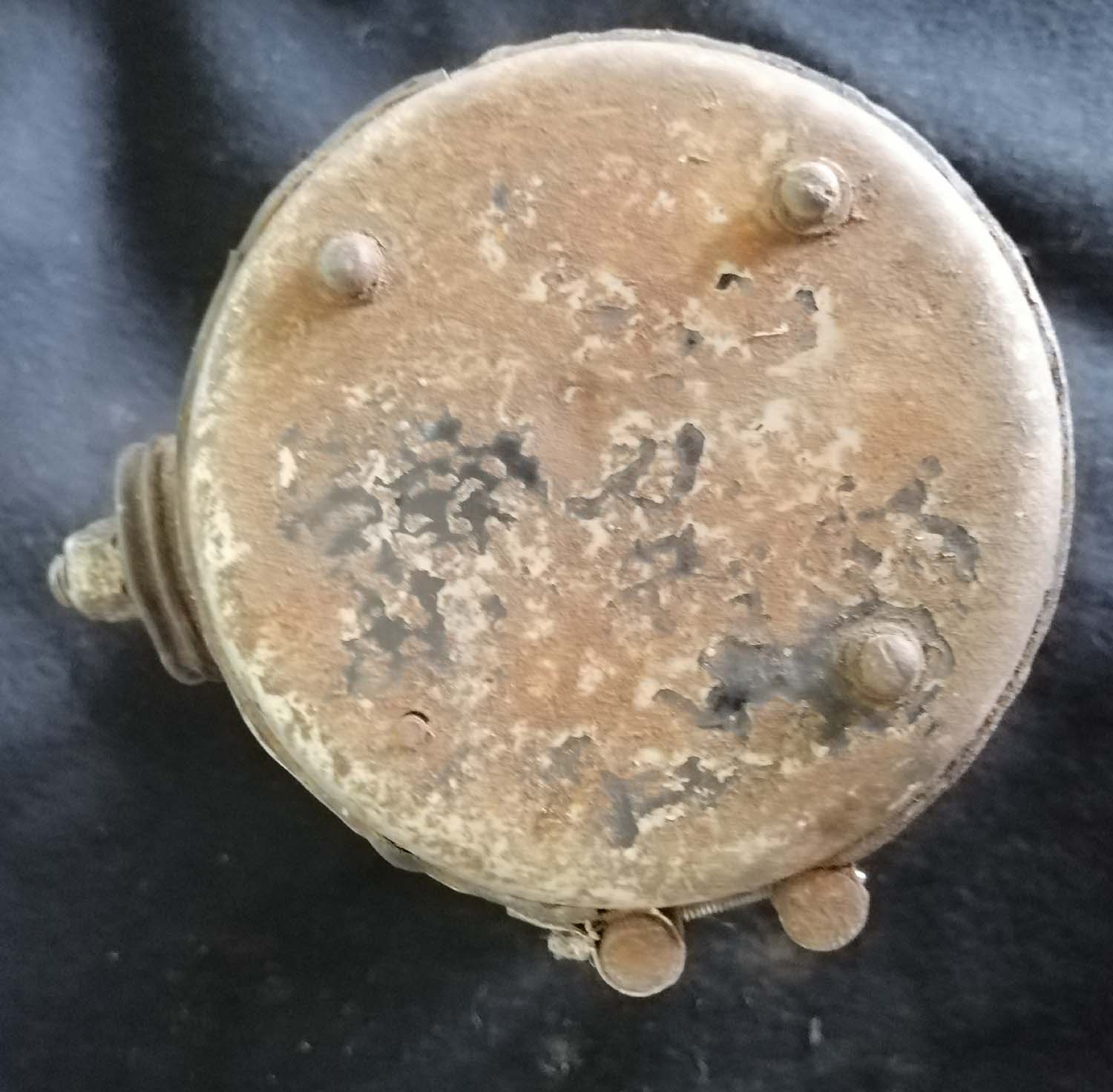

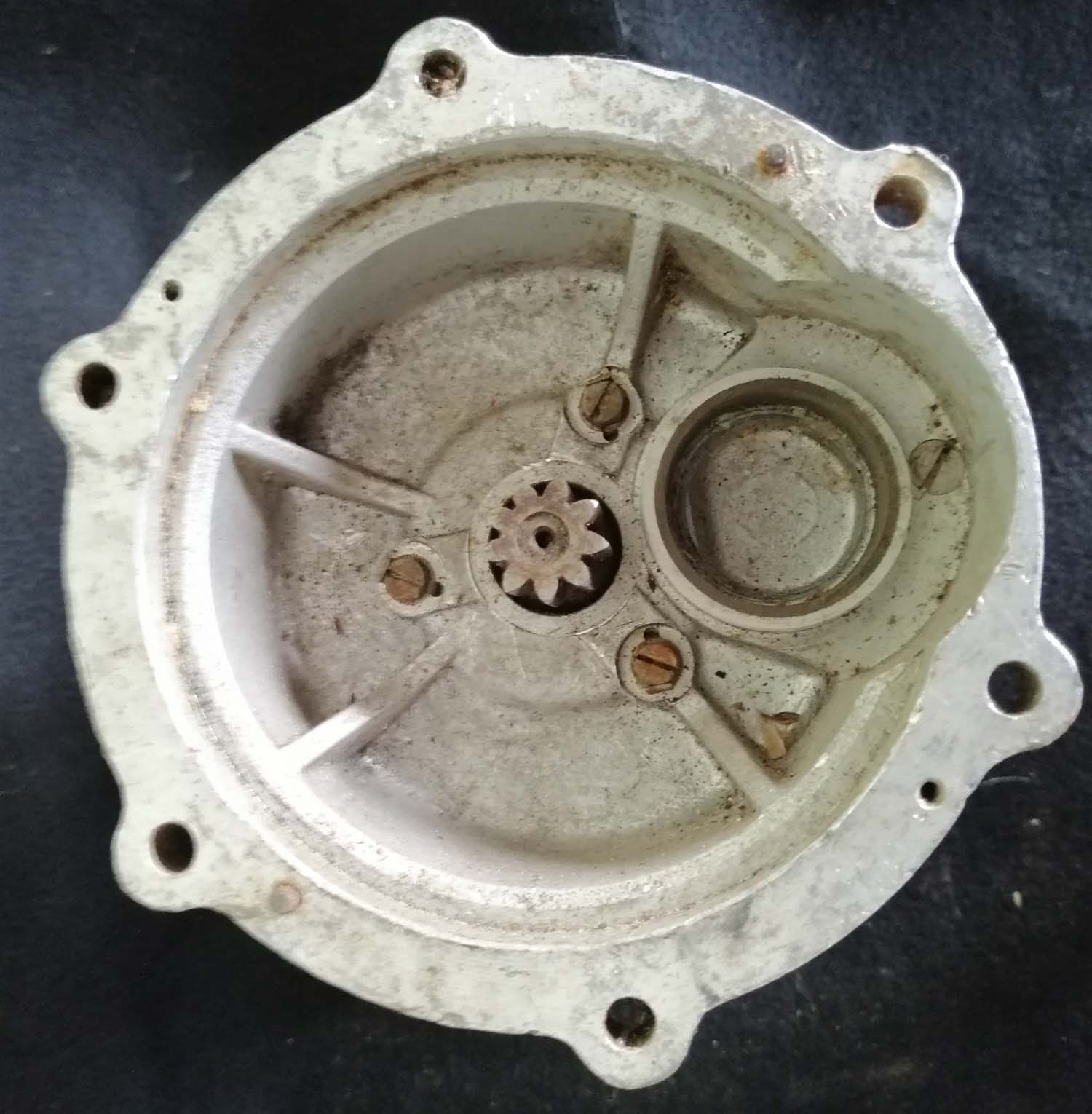

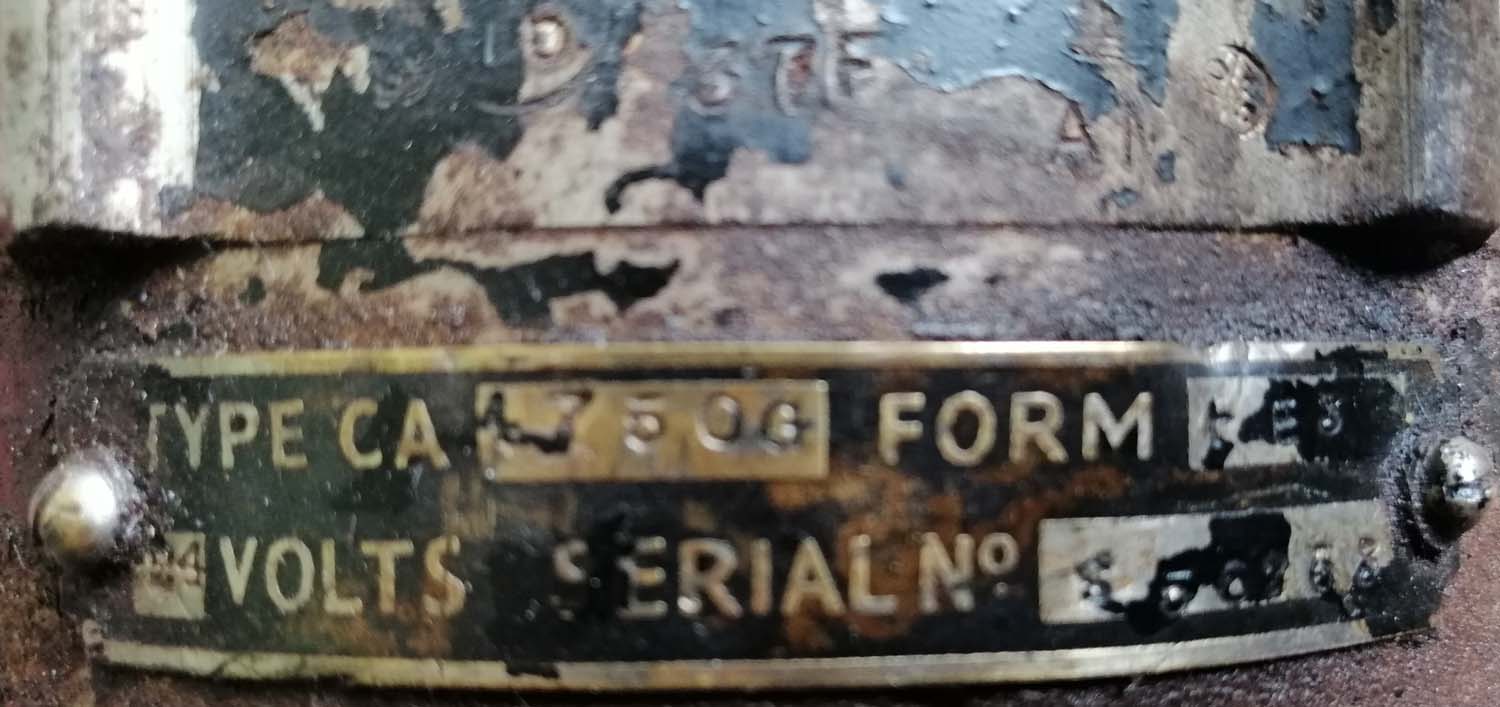

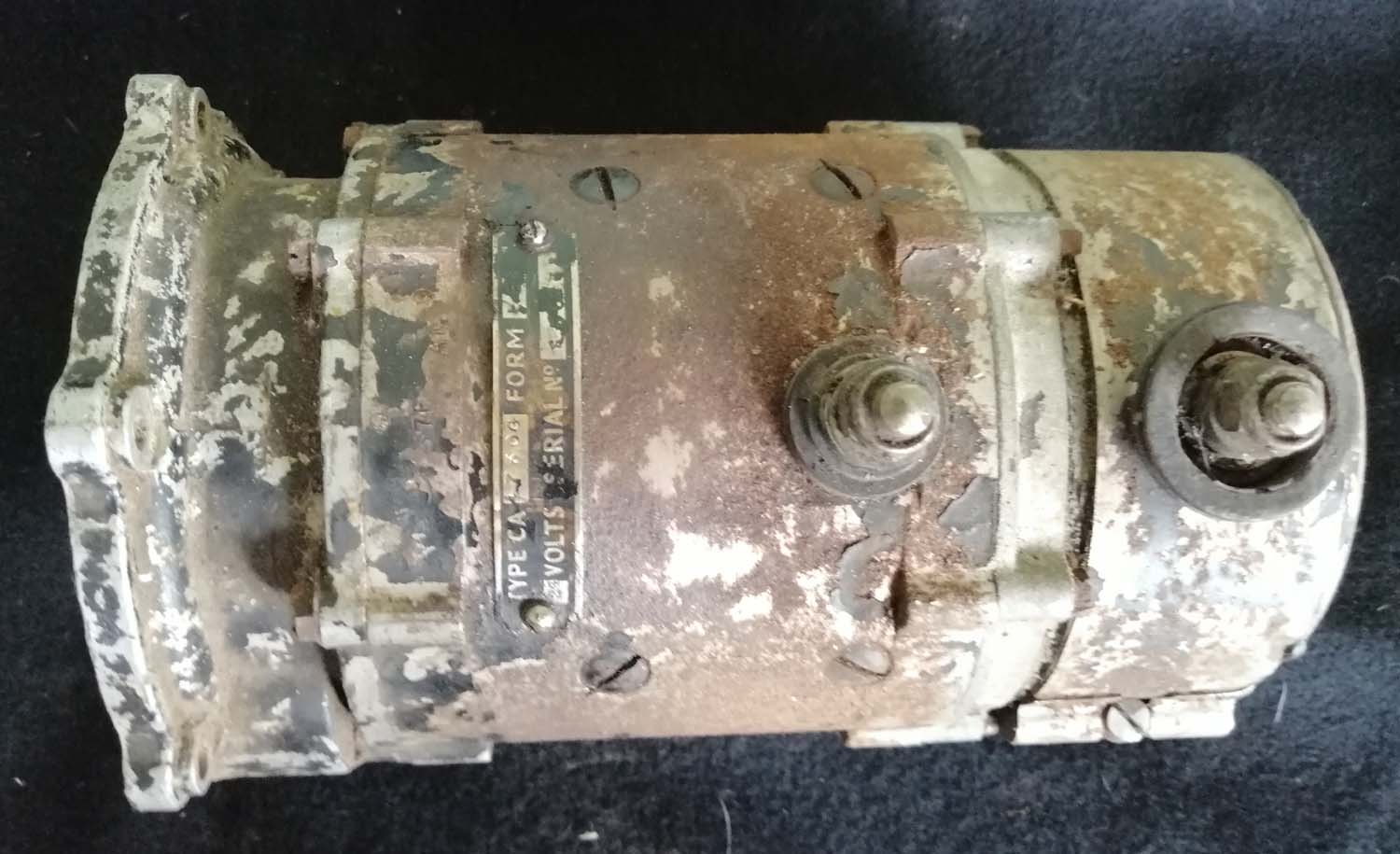

Merlin Starter motor Type CA 24 volt 37 F (pg1 Pwr)

Here is a starter motor Type CA 24 volt. It turns over freely but i have not tested it. It was fitted to the Merlin.

Click on the pictures to enlarge them

The first Griffons had single-stage superchargers, and were fitted to the Spitfire MK XII.

These aircraft arrived just in time to take on the Focke-Wulf 190 "Tip and Run" fighter bombers that were attacking England's South Coast. Their impressive low-level performance was used to good effect.

Click on the pictures to enlarge

For high altitude a two-stage supercharger was needed and these arrived in the Spitfire XIV

and XVIII. This enabled the Spitfire to stay in the forefront of fighter performance until the end of the war

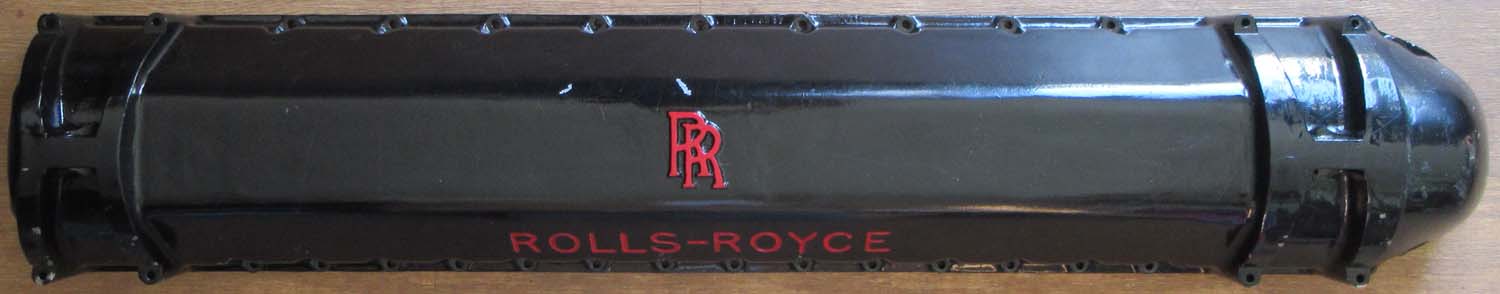

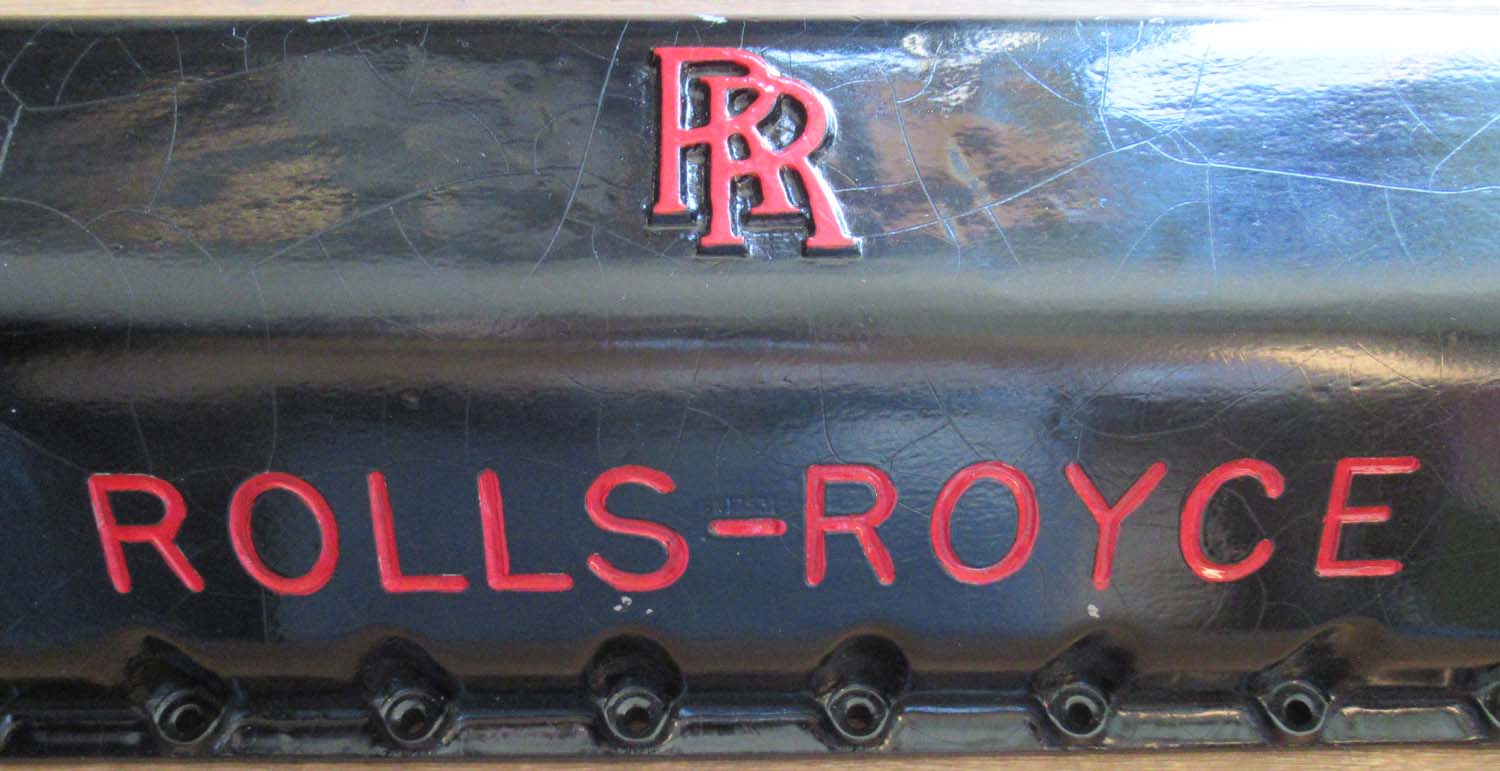

Rolls Royce Griffon Engine rocker cover (pg1 pwr)

This is a  rocker cover from a Rolls Royce Griffon. The Griffon was a 36 Litre monster replacement for the Merlin,

. The cover is straight and still has a coating of oil on the inside with its original paint..

click on the pictures to enlarge



Other aircraft which used the Griffon engine were the Firefly naval two-seat fighter, and the Avro Shackleton Maritime patrol aircraft .

Out of stock more always wanted please contact me

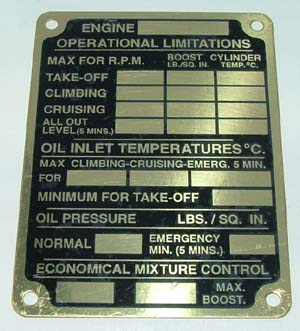

Spitfire/Hurricane engine plate (pg1 pwr)

This brass plate is an unused BLANK cockpit engine data plate typically fitted to large numbers of 2nd WW British aircraft, especially in the early war days.  They were usually riveted to the cockpit side, alongside the pilot.  Often found in Battle of Britain Hurricane and Spitfire wrecks, these are highly collectable as well as forming an essential addition to a restoration or display.  The figures were usually engraved to suit the particular engine and application, but the boxes are BLANK in this case. These are NOT cheap screen printed reproductions but are etched and black printed in brass relief.



Out of stock more wanted please contact me

Click on the picture to enlarge

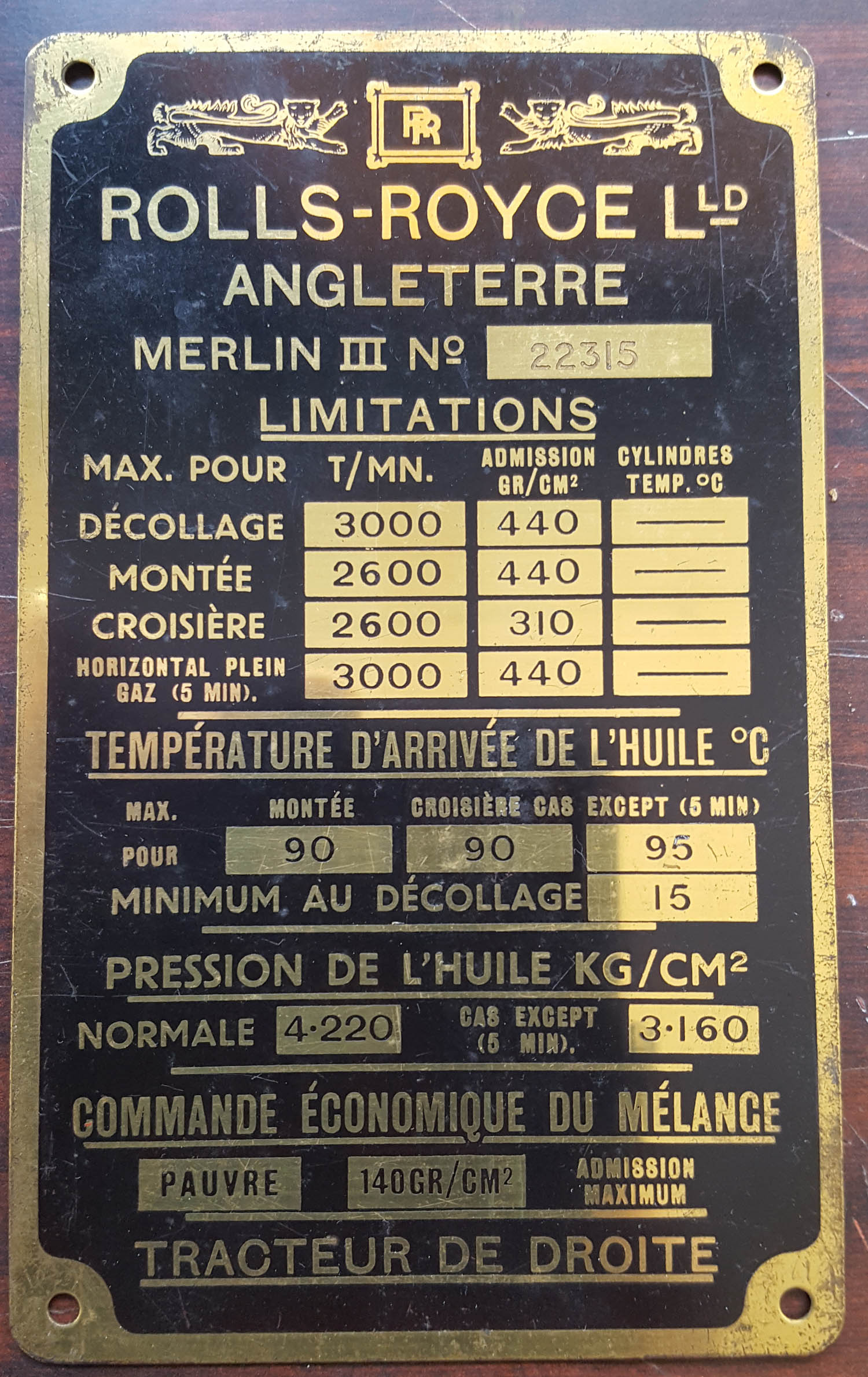

Merlin III Hurricane cockpit plate (pg1 pwr)

This is superb a real rarity , I could not work out why this plate was written in French so wrote to Rolls Royce to find out and trace the engine number.

Dear Graham,

This is an unusual one. Engine number 22315 was allocated as part of a batch of 75 Merlin III for Belgium (for Hurricanes) on order number 0/4930, contract No. T.9064. The contract was cancelled in May 1940 when Belgium was invaded. Engine 22315 was never built and its engine number was cancelled. It is likely that the cockpit plate may have been prepared (in French) because the engine had been allocated to the Belgian contract, but then upon cancellation the plate was withdrawn – and potentially taken as a souvenir. Part of that batch had already been despatched from Derby, but were recalled and intercepted at the docks. Of the 75 engines in the order, 61 were not built.

Head of Spitfire Engineering, Rolls-Royce Heritage Flight



Out of stock more wanted please contact me

Click on the picture to enlarge

The De Havilland Hornet represents in many ways the peak of piston engine fighter design. With its slim fuselage, clean lines and tightly cowled engines, great attention was paid from the outset on maximising performance.


The prototype (RR915) was built on a private venture basis and flew for the first time on 28th July 1944.

Designed around the successful wooden construction principals of the De Havilland Mosquito, the Hornet was powered by a pair of 2,070 hp Merlin engines driving opposite-handed propellers and Boscombe Down trials revealed the astonishing maximum speed of 485 mph at 22,000 ft. The type also possessed superb handling characteristics, particularly in respect of its high rate of roll.



Initially conceived for operations in the Pacific Theatre against the Japanese, the conflict had ended before the aircraft reached operational status. Two main marks saw service with the RAF Fighter Command: The F Mk 1 and the F Mk 3 with the latter having increased fuel capacity and a large dorsal fin. Armament was four 20mm cannon and wing hard points eight ground attack rockets or a pair of 1,000 lb bombs. Alternatively, two 200 gallon drop tanks could be carried.



It saw active service in the Far East as a Strike Fighter during the Malayan Emergency in 1951, replacing Bristol Beaufighters and Supermarine Spitfires.

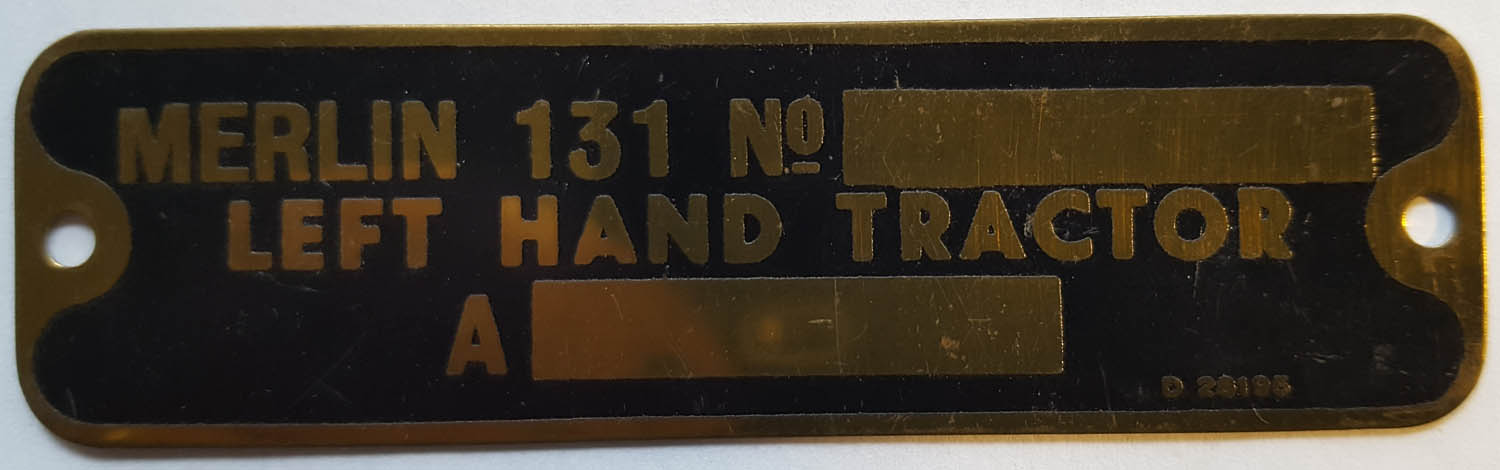

Merlin 131De Havilland Hornet engine plate (pg1 pwr)

This is a brass identification plate plate as fitted to the Merlin Mk 131 it is original and never fitted new old stock.

The Merlin 131 was a redesigned "slimline" versions for the De Haviland Hornet. The engine was modified to decrease frontal area to a minimum and was the first Merlin series to use down-draught induction systems. The two-speed, two-stage supercharger and S.U. injection carburettor giving a maximum boost of +25 psi . On the Hornet the Merlin 130 was fitted in the starboard nacelle the Merlin 131 fitted in the port nacelle, and was converted to a left-hand tractor engine using an additional idler gear in the reduction gear casing.

Out of stock more always wanted please contact me

Click on the pictures to enlarge them

Out of stock more wanted contact me

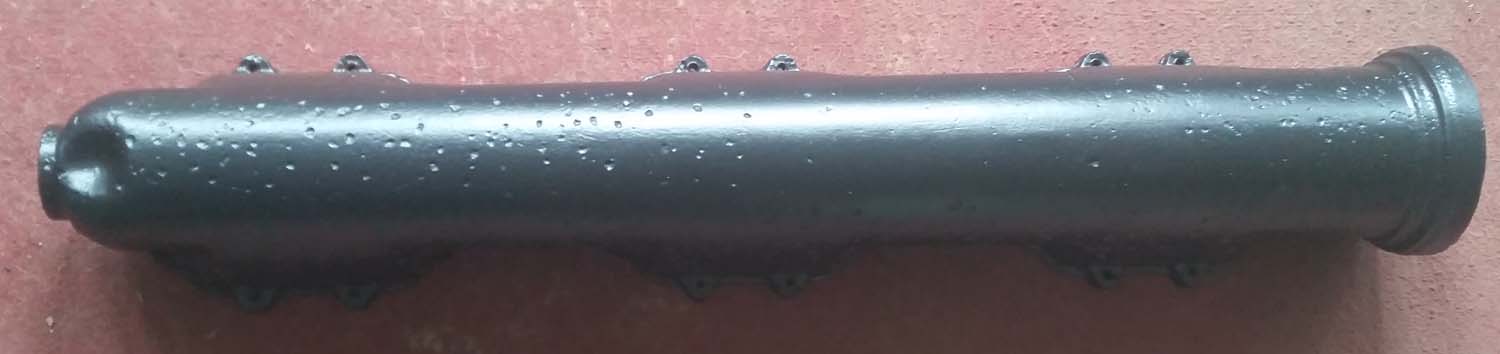

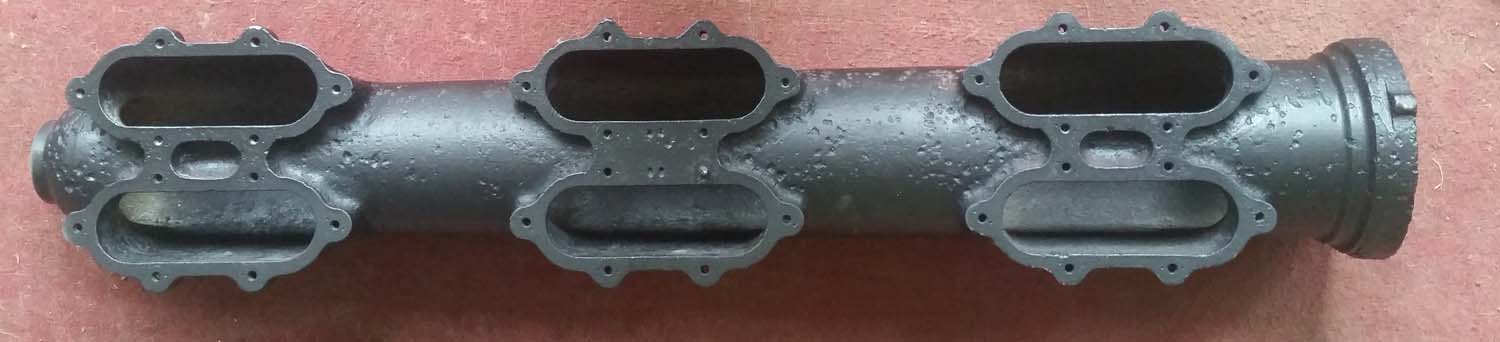

RR Merlin Induction Manifold(pg1 Power)

Here we have a an Induction Manifold  for a Merlin XX onwards. It carries the fuel mix from the supercharger to the heads and sits in the middle of the V of the cylinder banks.

This is in an ok condition with some pitting and would be good for a Static Rebuild

Rolls Royce Merlin



Click on the picture's to enlarge them.

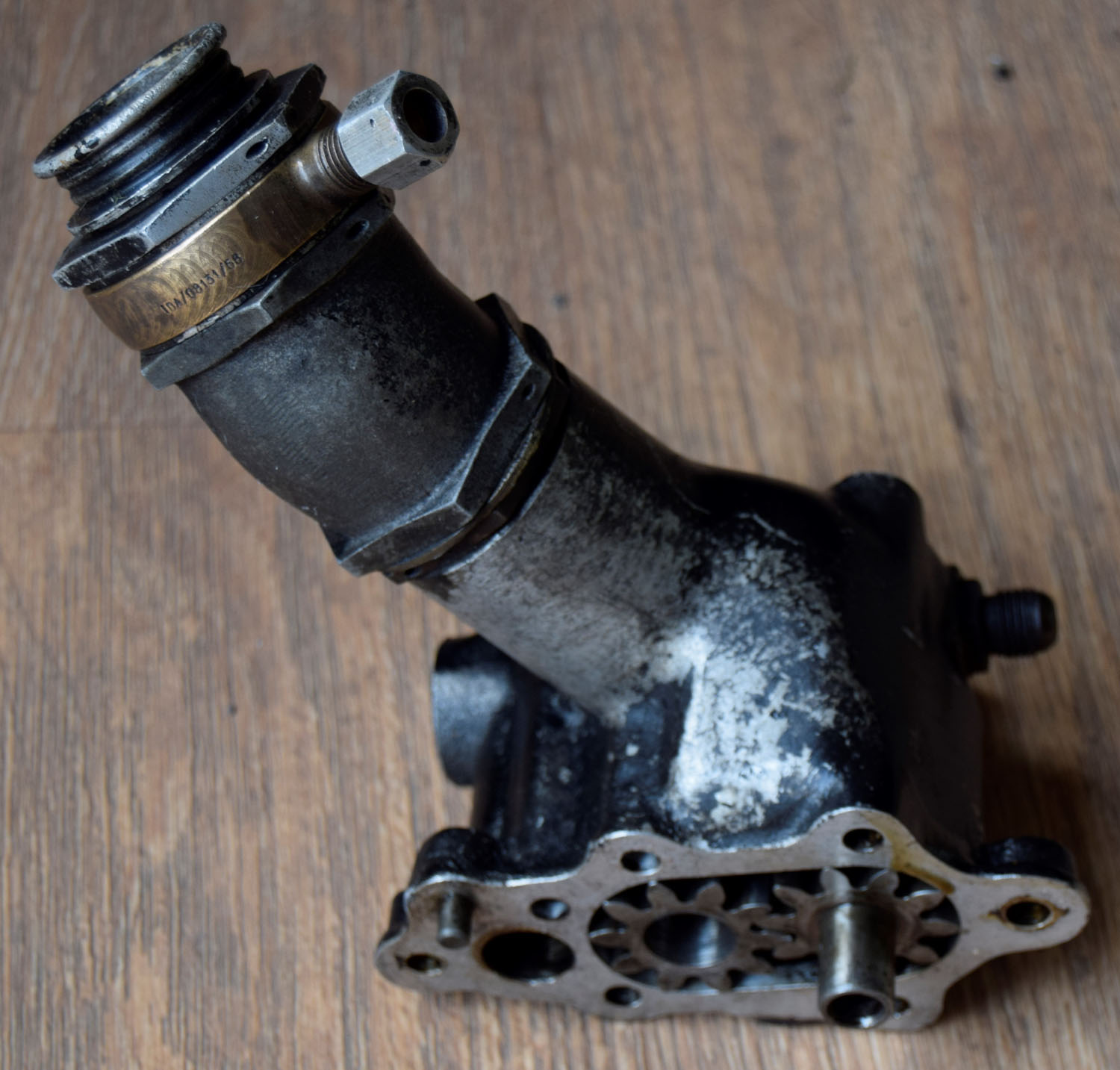

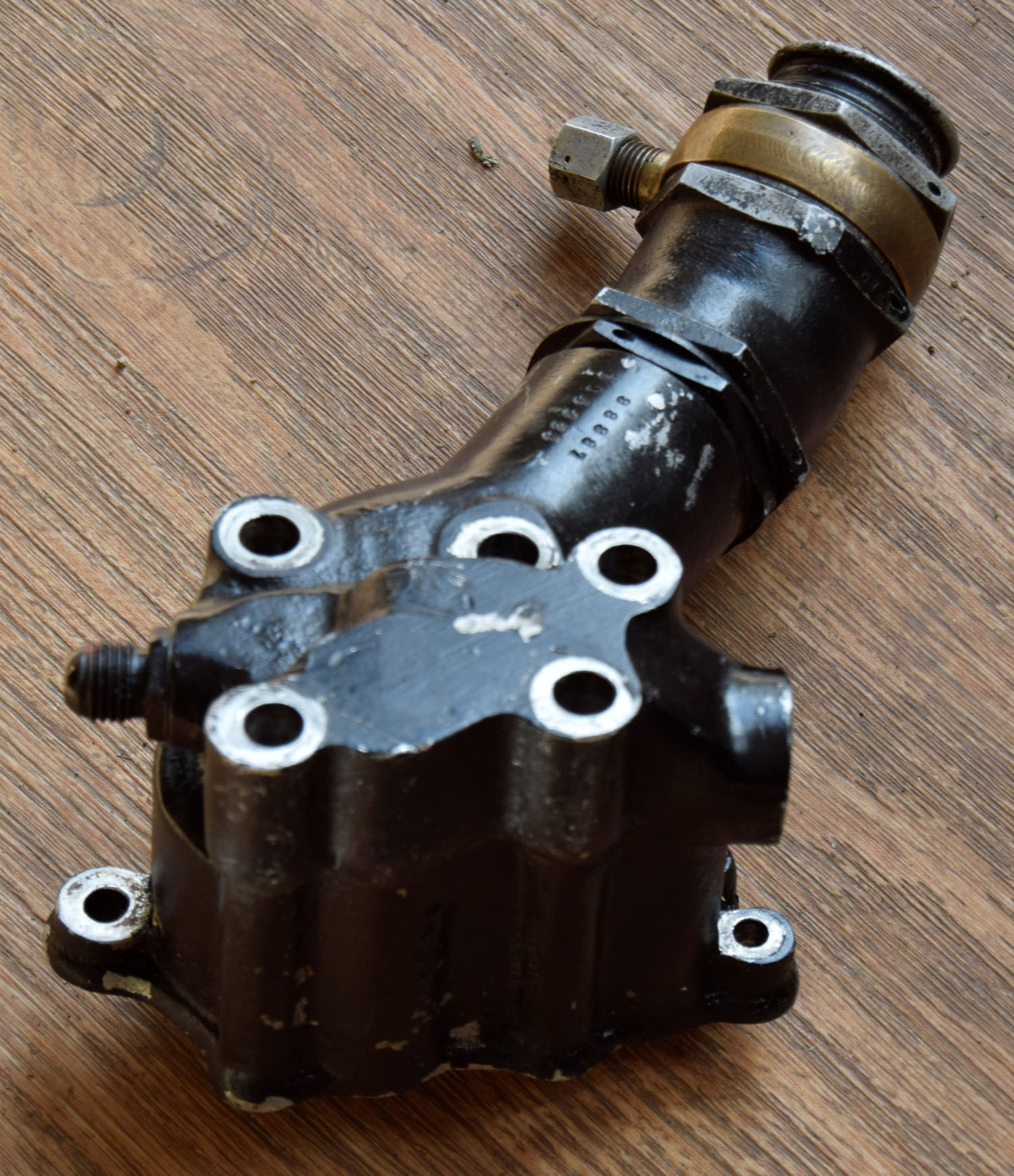

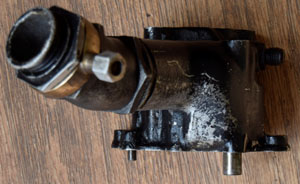

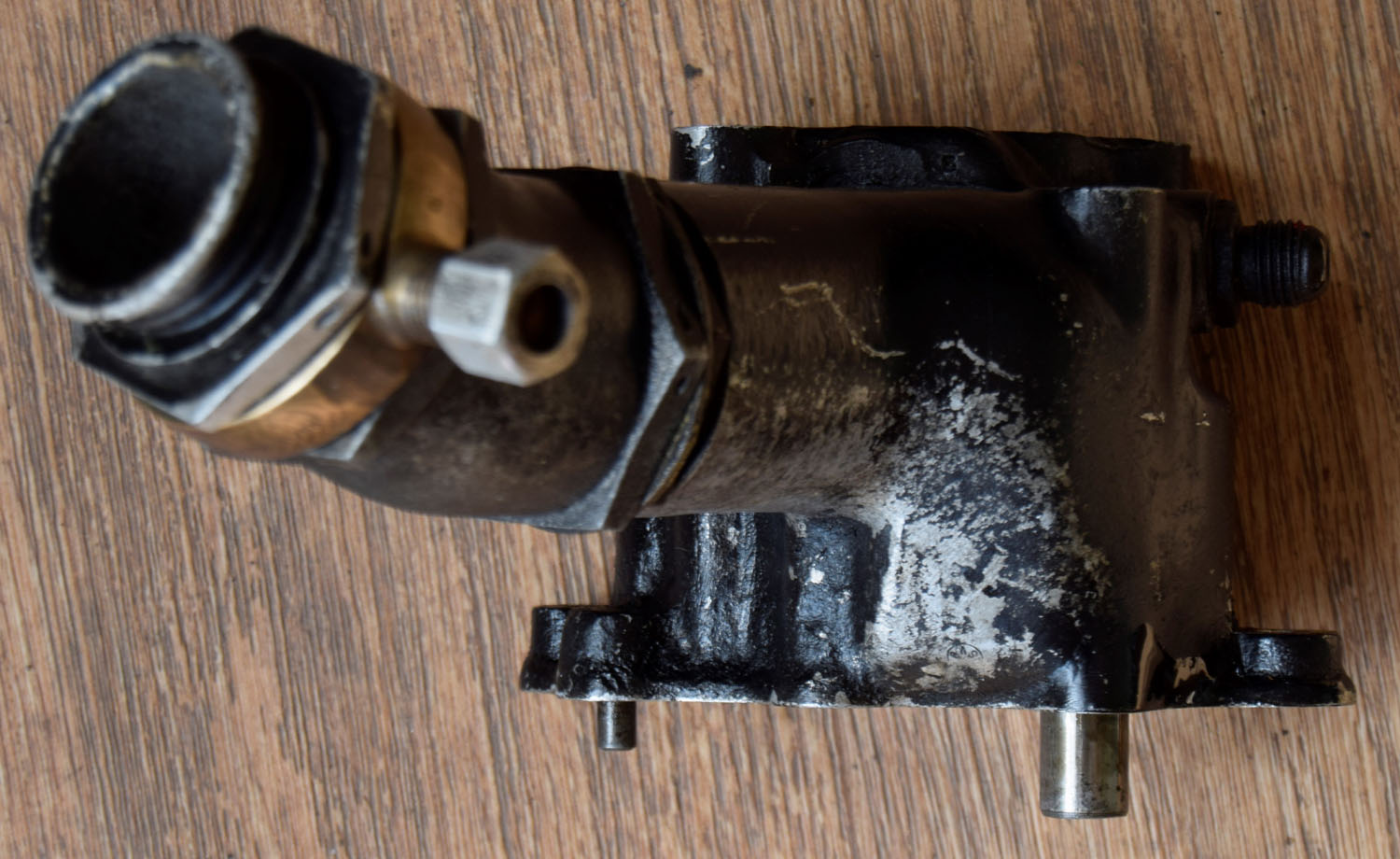

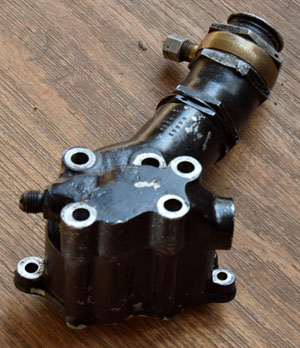

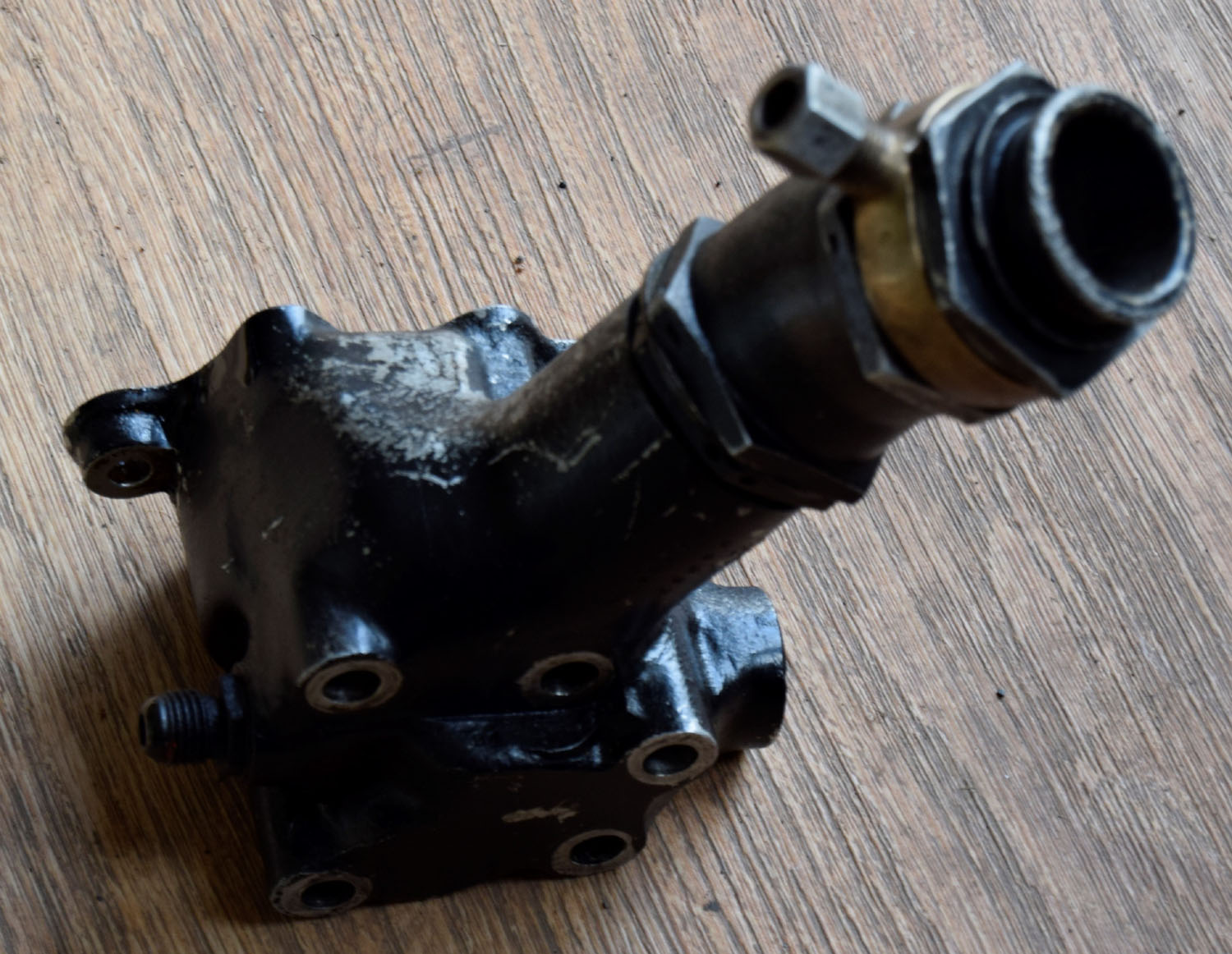

Merlin supercharger pump (pg2 pwr)

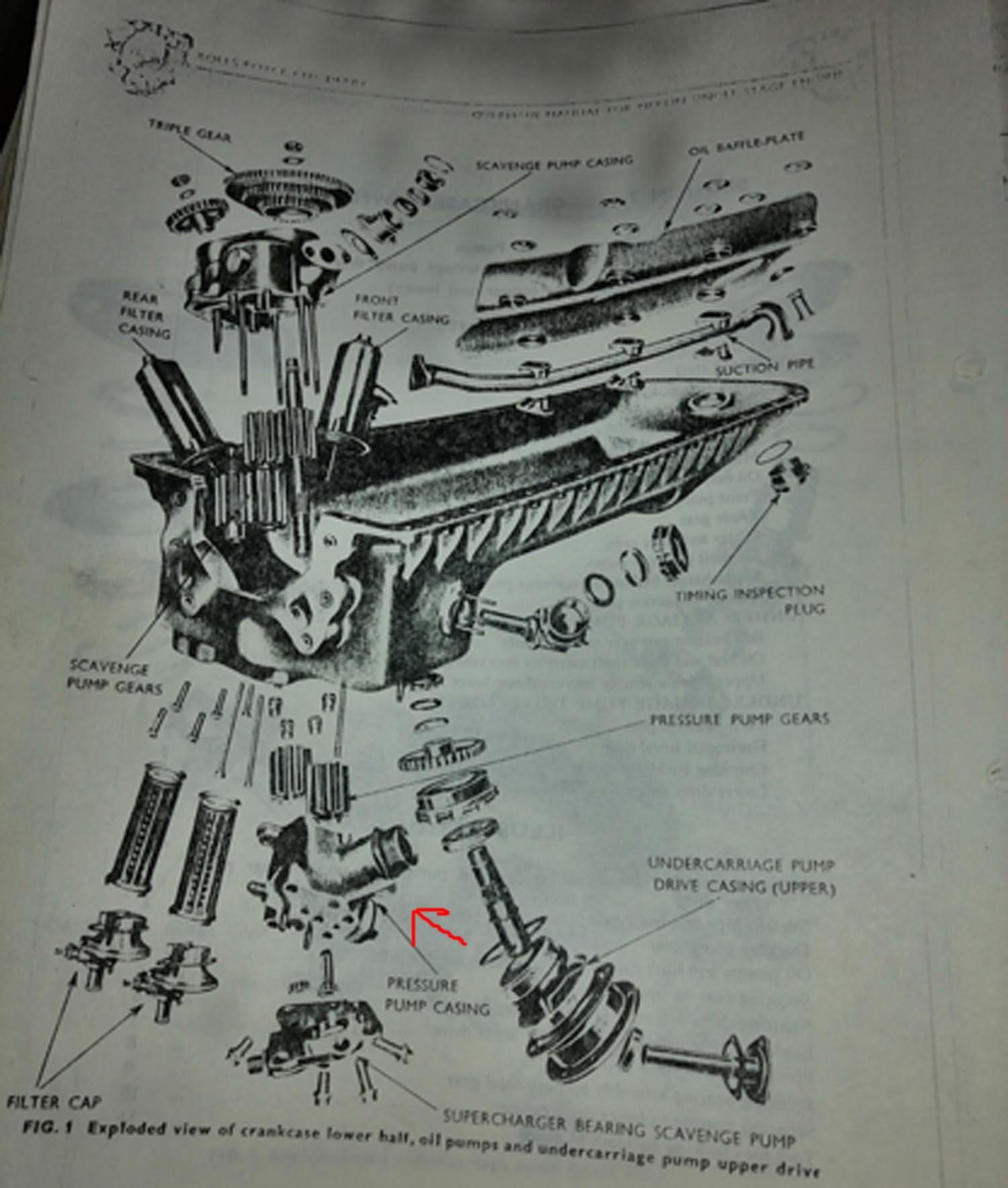

This a pressure oil pump for the Merlin single stage supercharger taken from the the overhaul manual for Merlin single stage engines although it is possible it was fitted to other variants.

Click on the picture's to enlarge them.

This is now out of stock but more always wanted please contact me if you have one for sale.

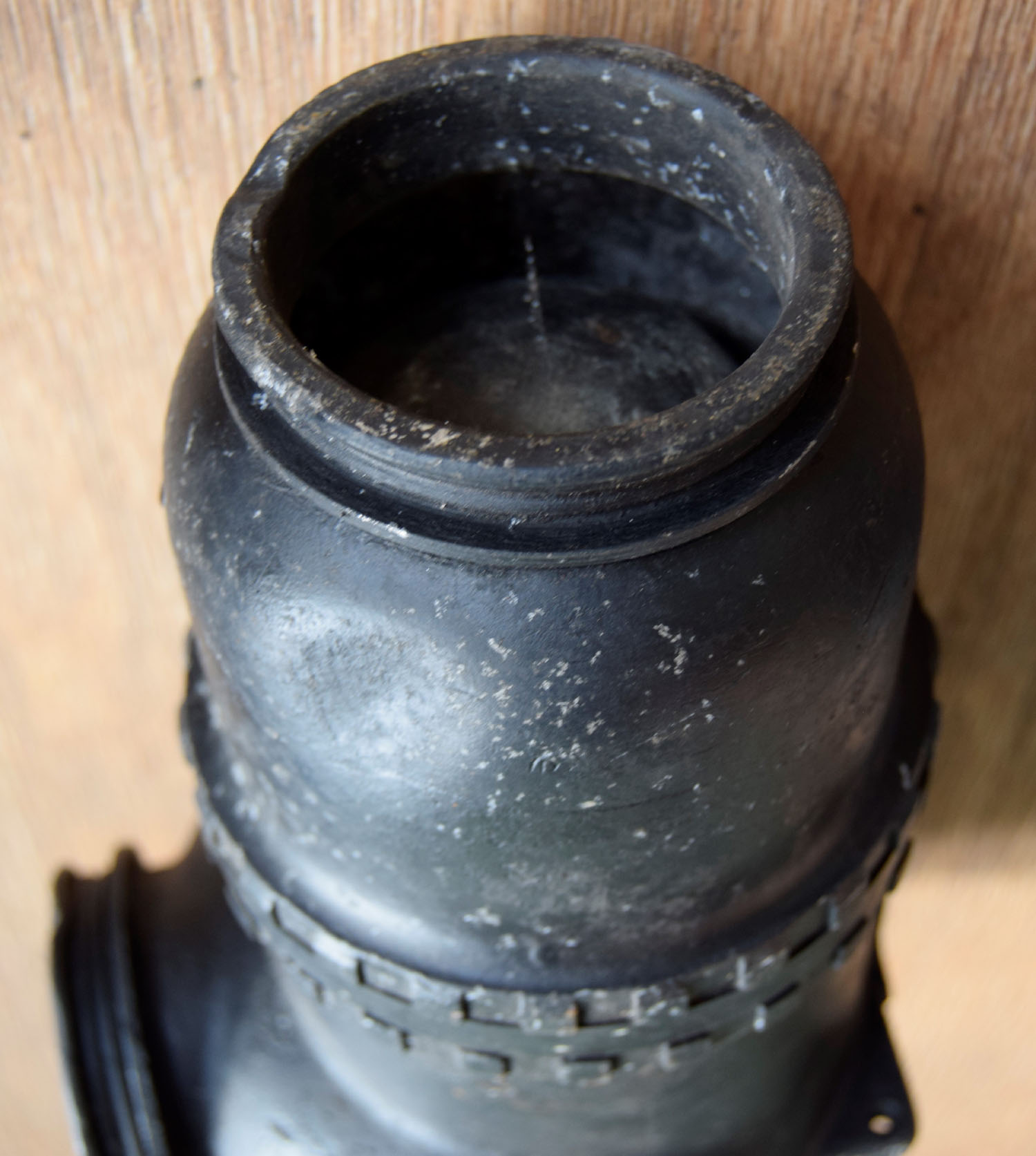

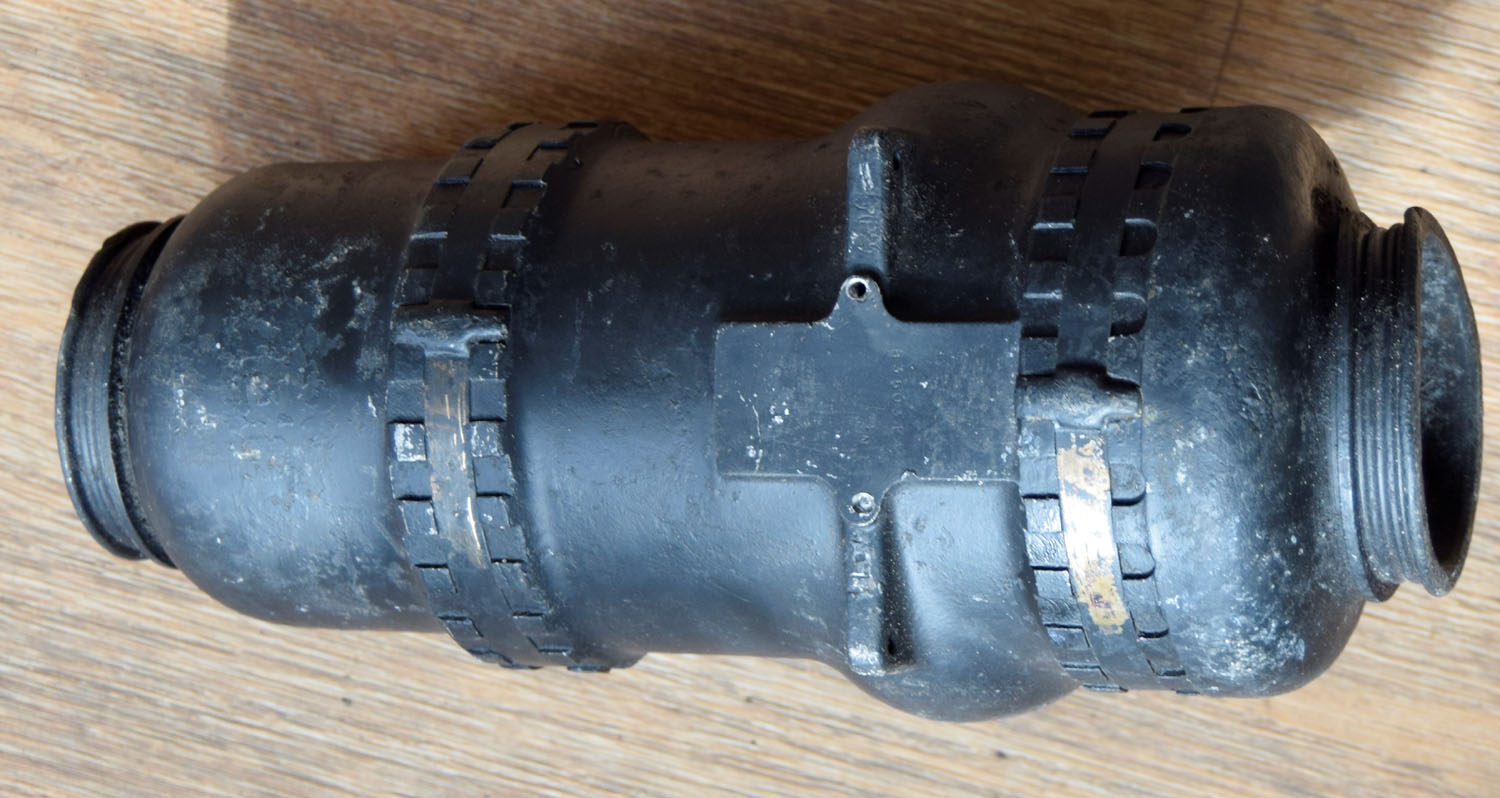

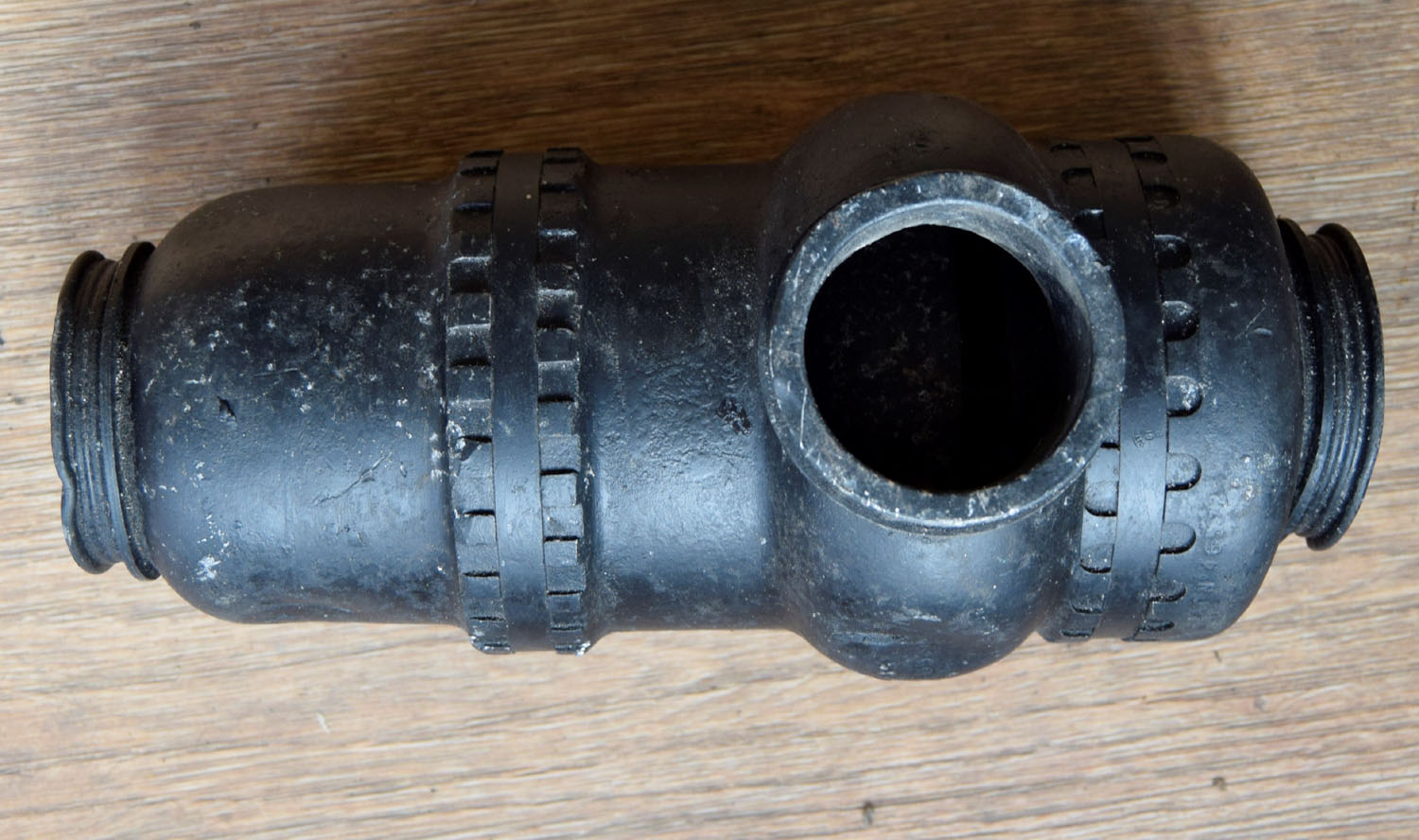

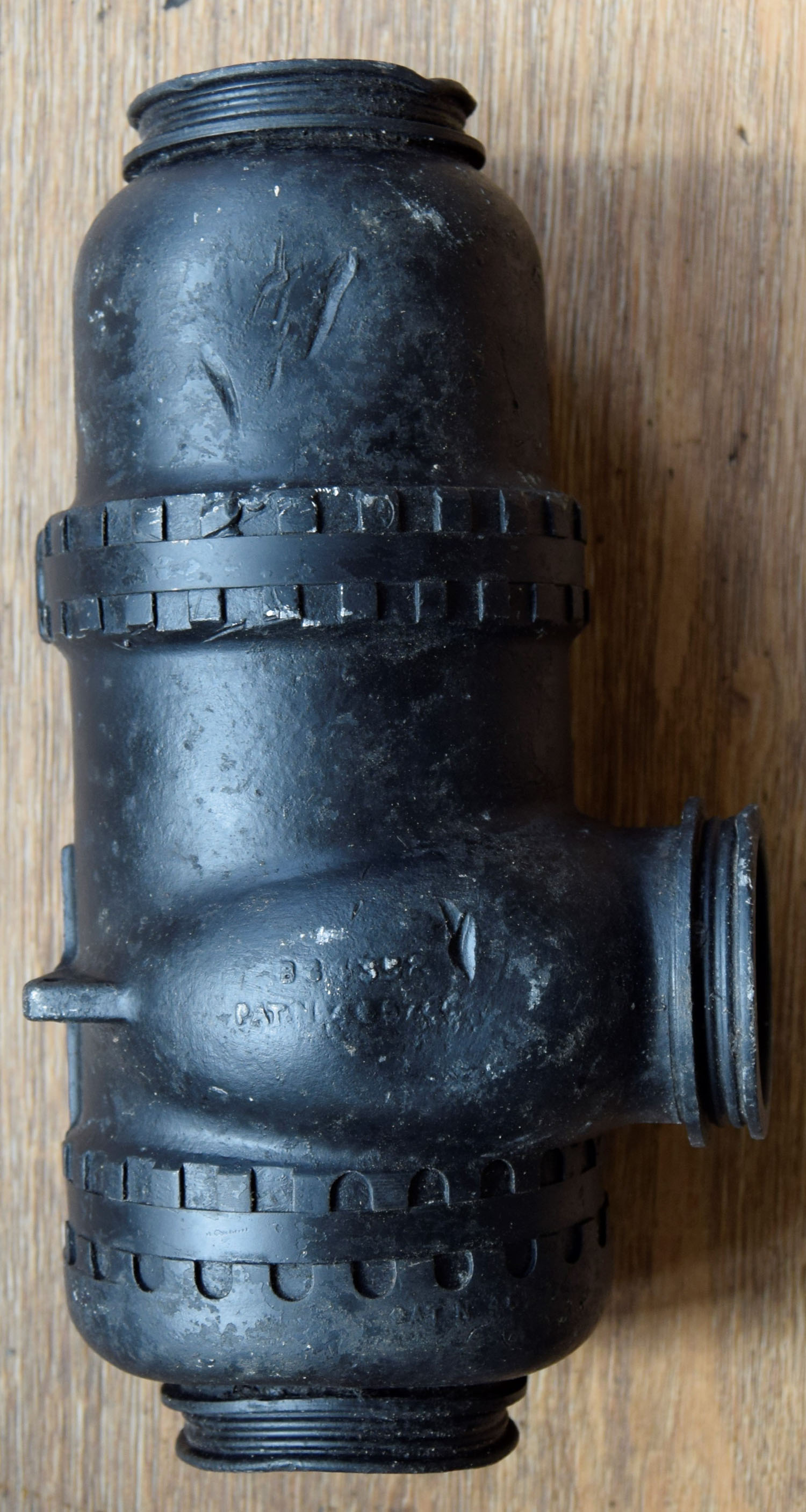

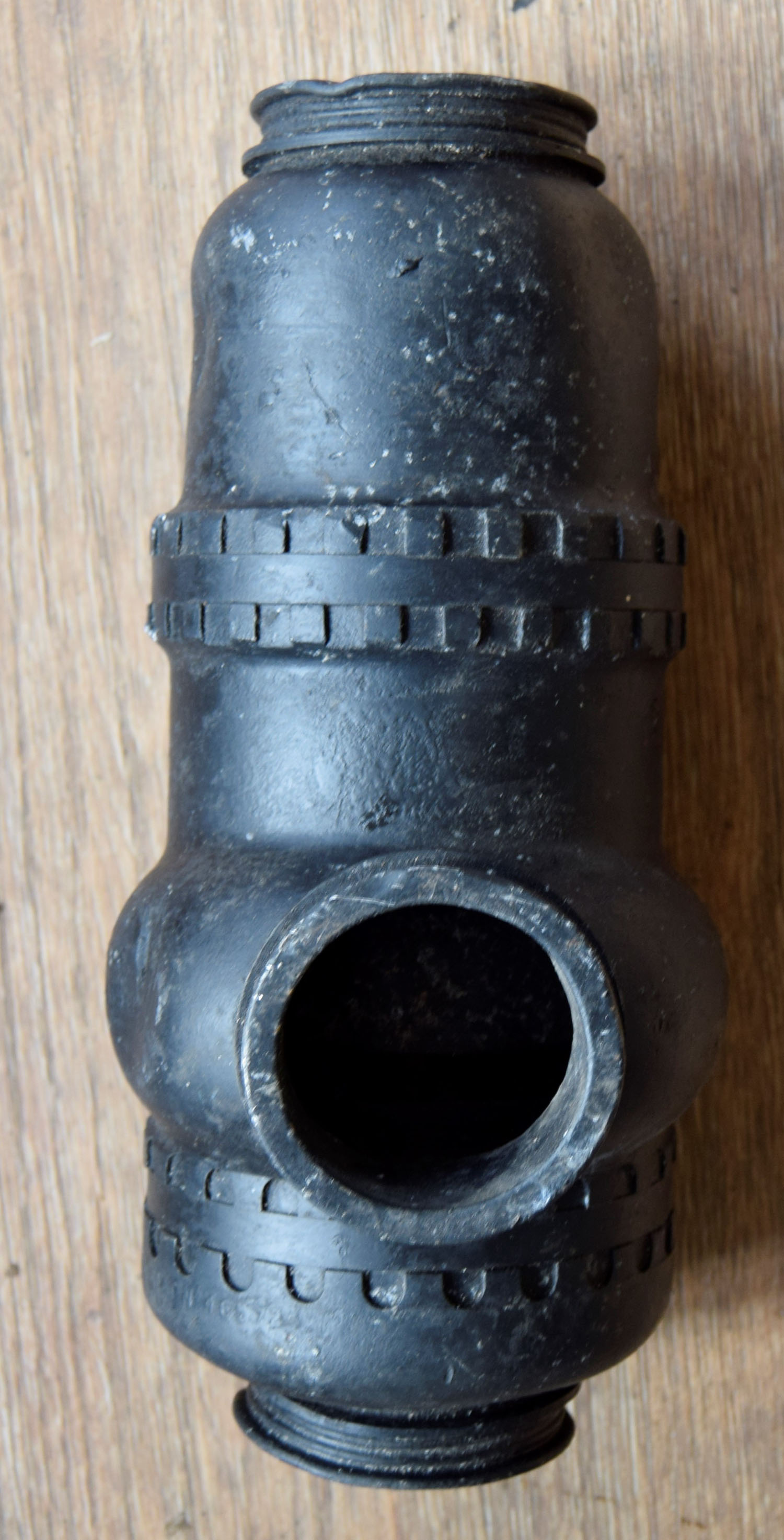

Rolls Royce Merlin thermostat (pg2 pwr)

Here is a Merlin thermostat as you might guess its quite a large piece. Approximately 12" long  with 2 1/2" pipe connections. I am not sure if this design was fitted to all aircraft with the Merlin, currently I can only find one drawing of it fitted to a P 51 Mustang. I have the manual for the MK XIV with the griffon and although you can see it in place its not quite the same design as might be expected. It has its internal parts but have no way to test if its working.

Out of Stock more always wanted please contact me

Click on the pictures to enlarge them

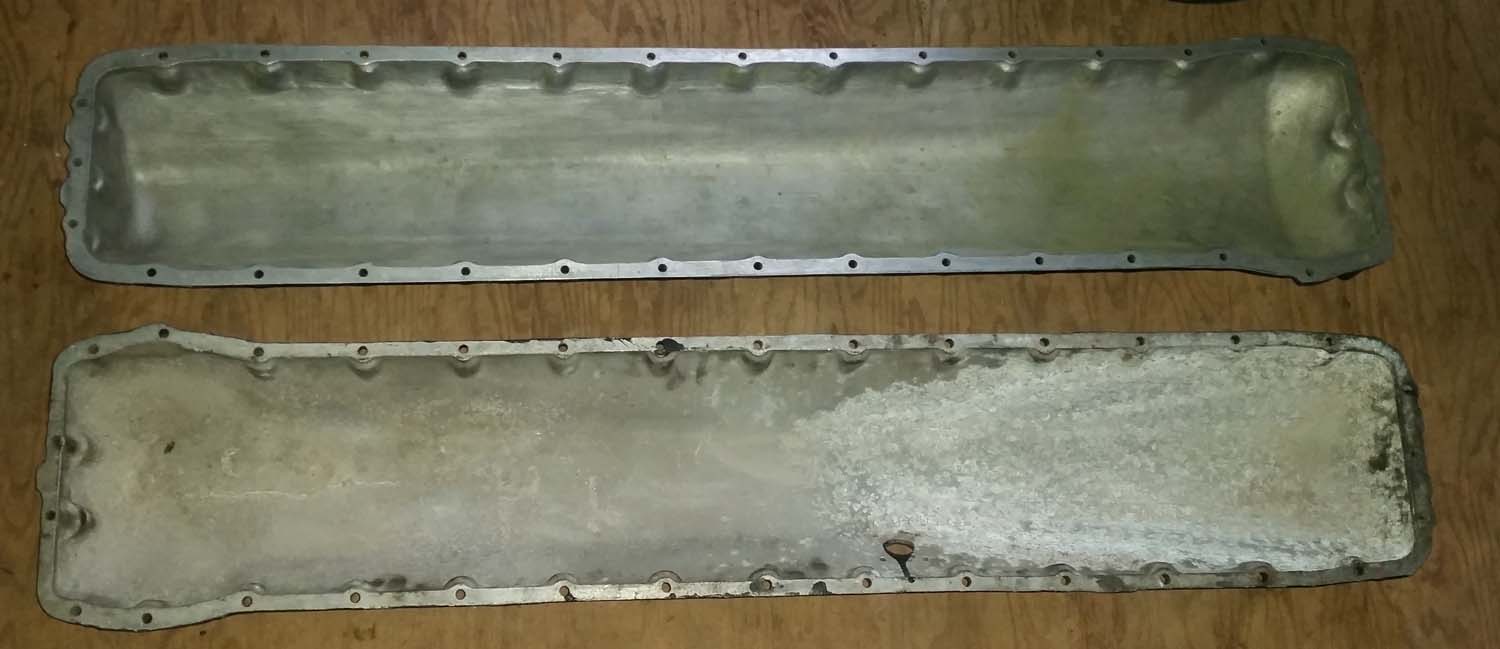

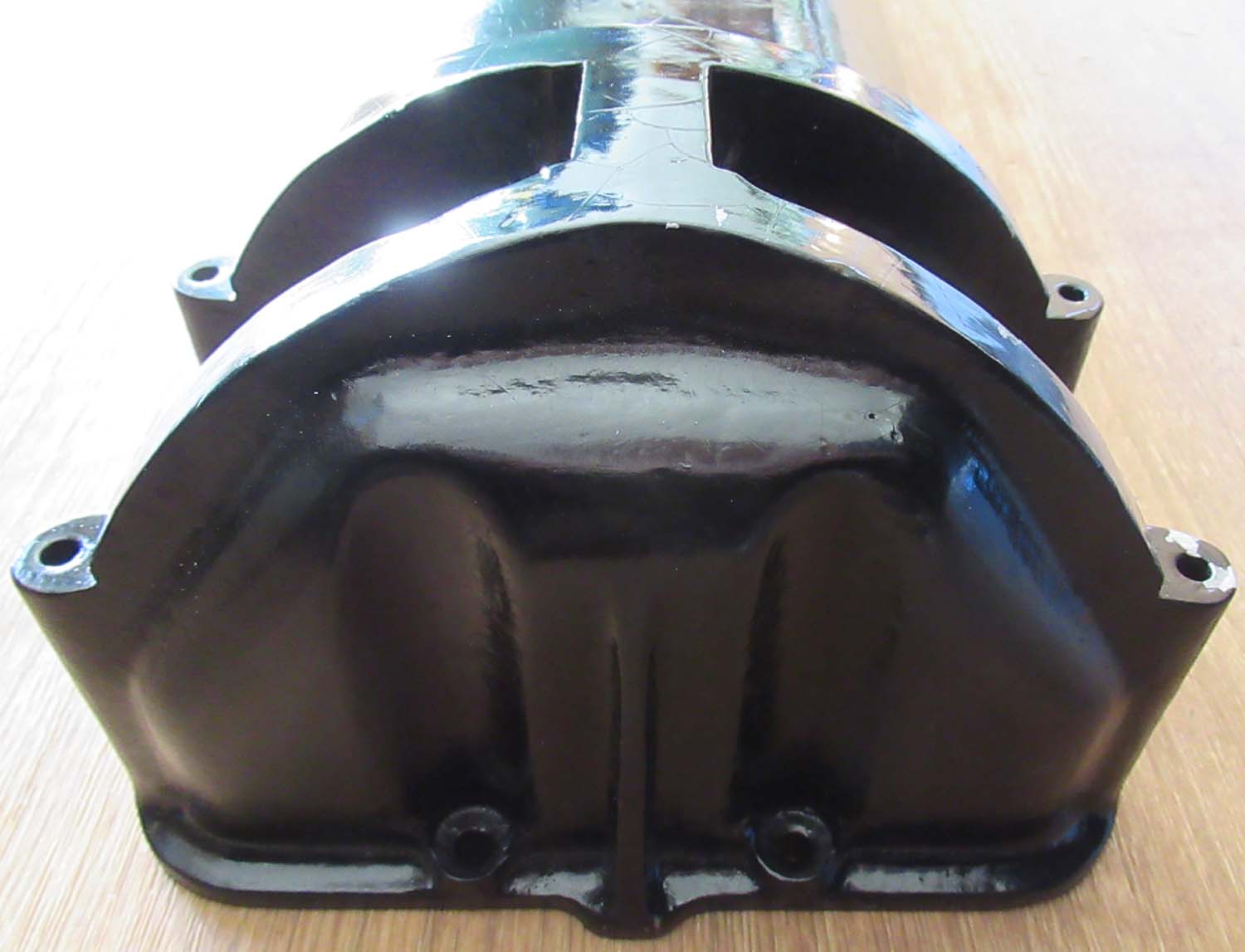

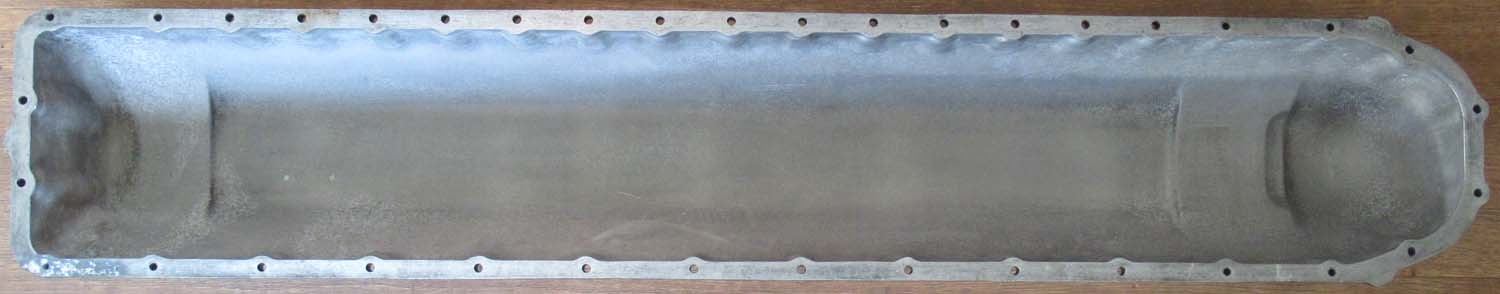

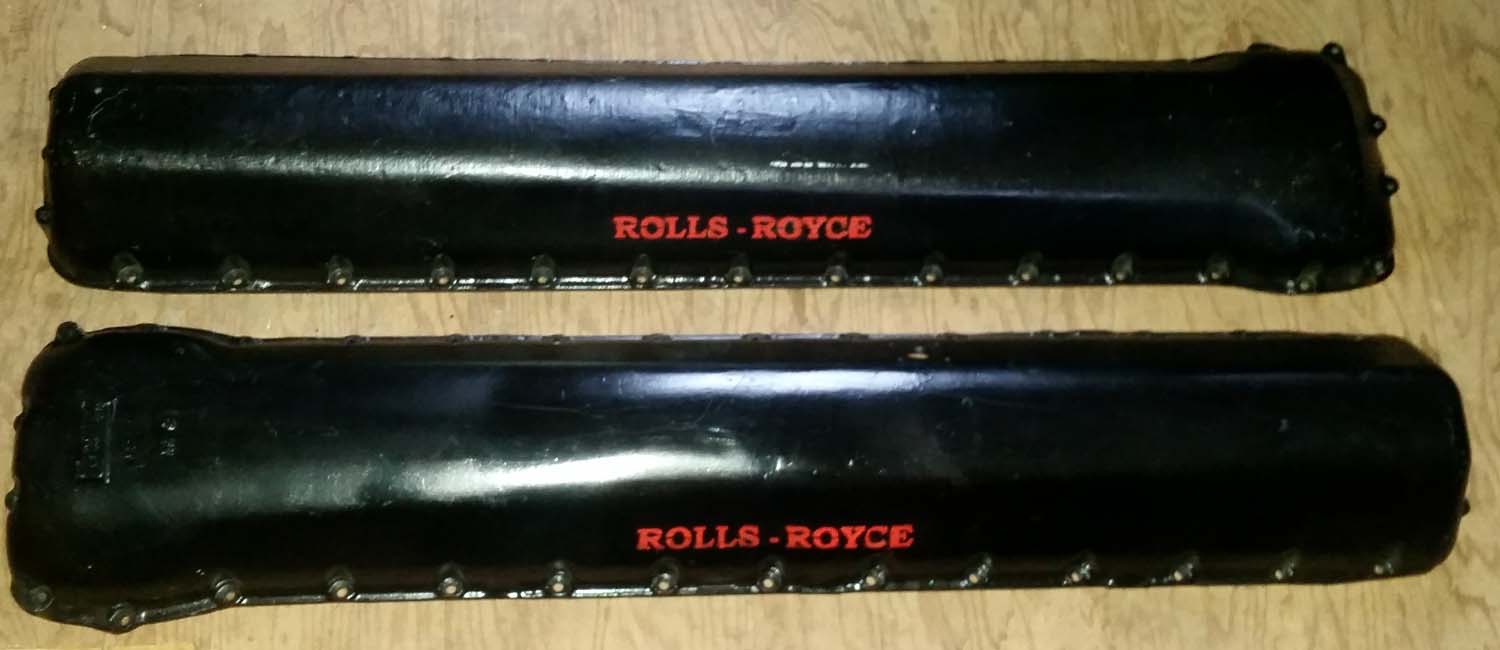

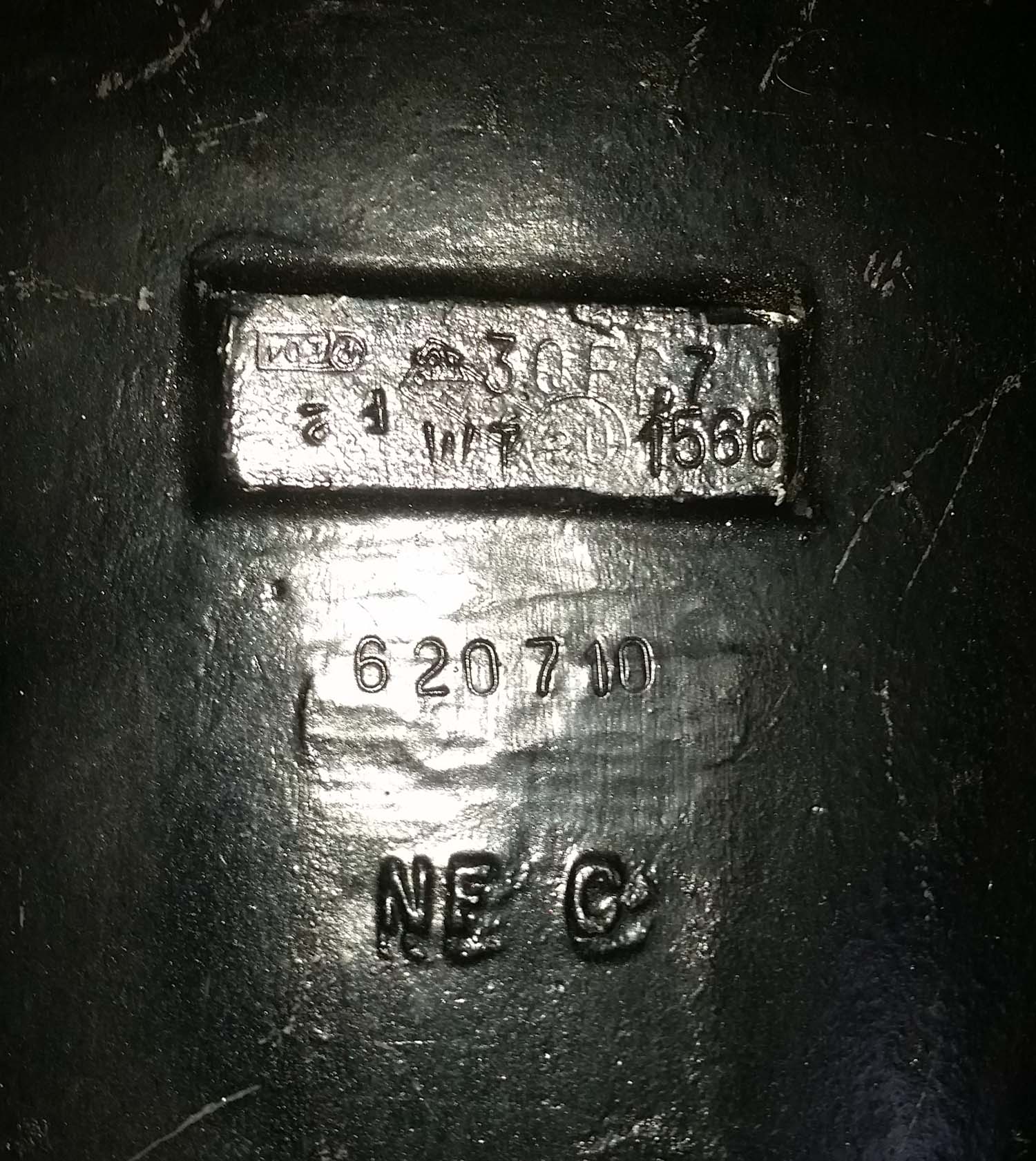

 Rolls Royce Merlin Rocker Covers (pg2 pwr)

Here we have a matching pair of Rolls Royce Merlin Rocker Covers. These are in a good condition although one has some slight oxidisation. These are the ultimate piece for the Merlin enthusiast.

Out of stock more wanted contact me

Click on the pictures to enlarge them

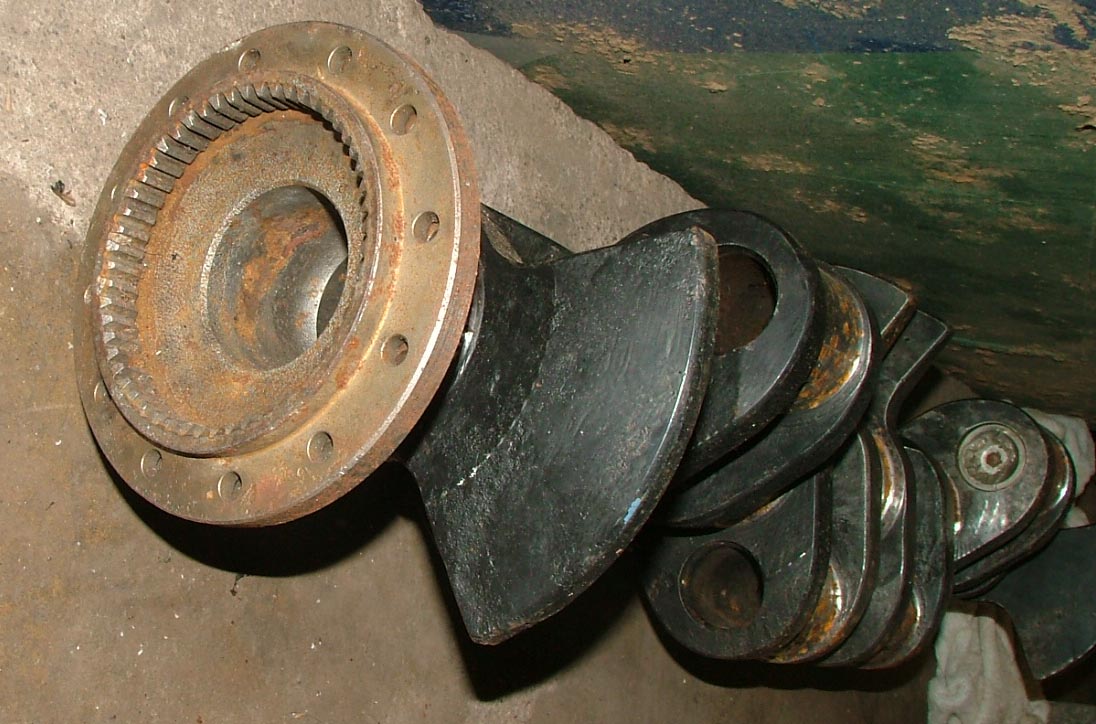

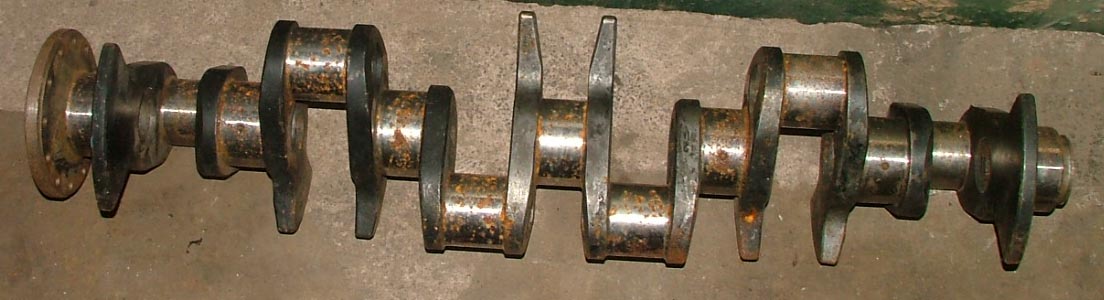

Merlin Crankshaft (pg2 pwr)

Here we have a Merlin crankshaft will fit all pre 100 series Merlins. Has some very light corrosion we will be spraying the whole thing in oil to preserve it after listing. Does not appear to be bent and should run again subject to the required checks.

Out of stock more wanted contact me

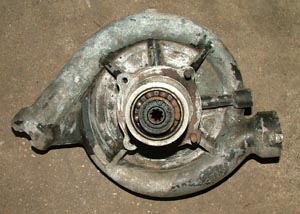

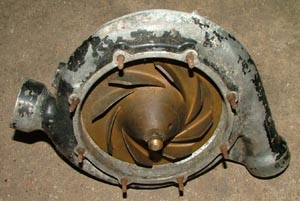

Merlin Coolant Pump 2 (pg2 pwr)

Here we have a packless gland coolant pump introduced around 1942, universal to all Merlins from 1942 onwards. This one has some bits missing and is damaged but is a nice collectable as a genuine Merlin piece and would polish up really well.

Out of stock more wanted contact me



Click on the pictures to enlarge them

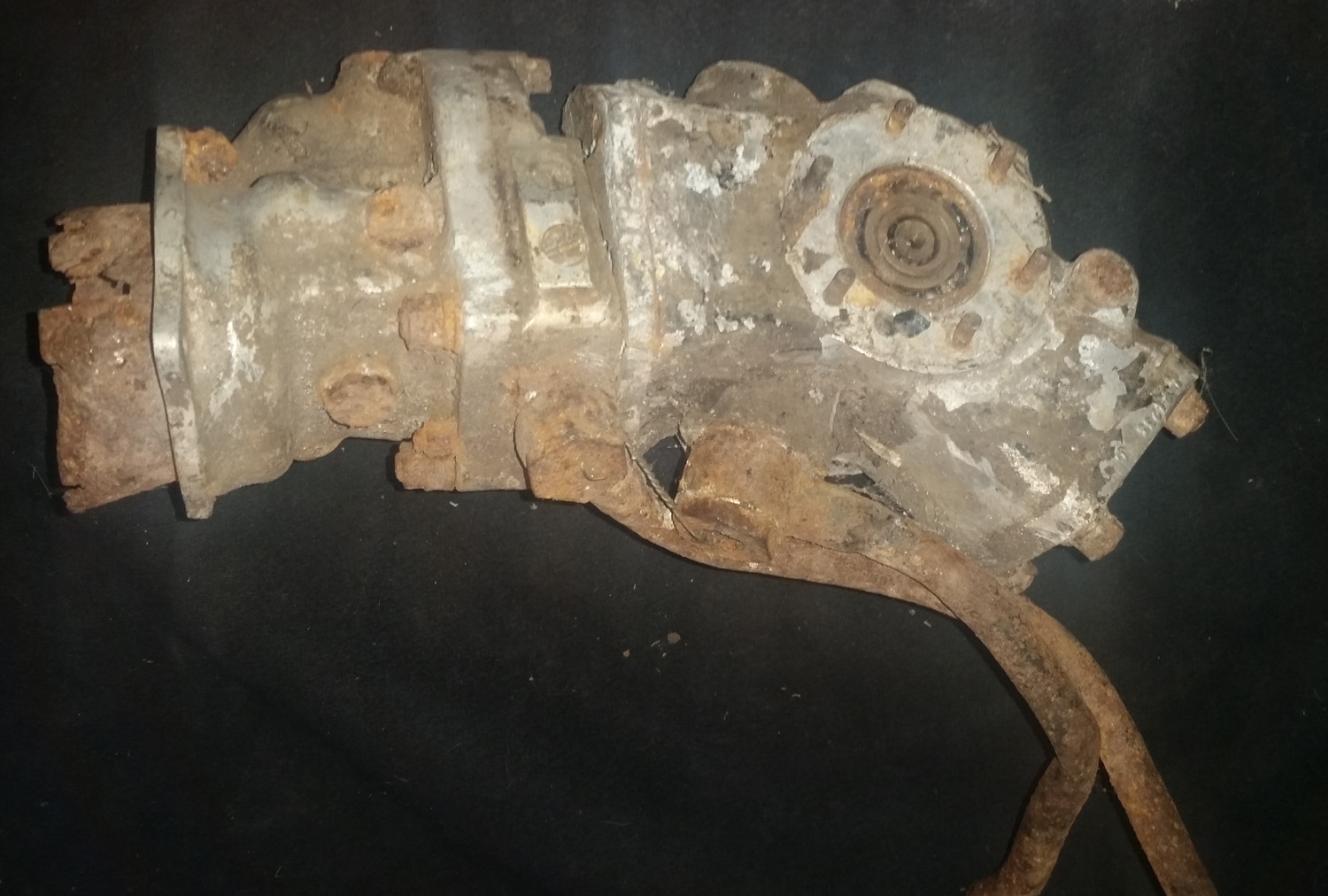

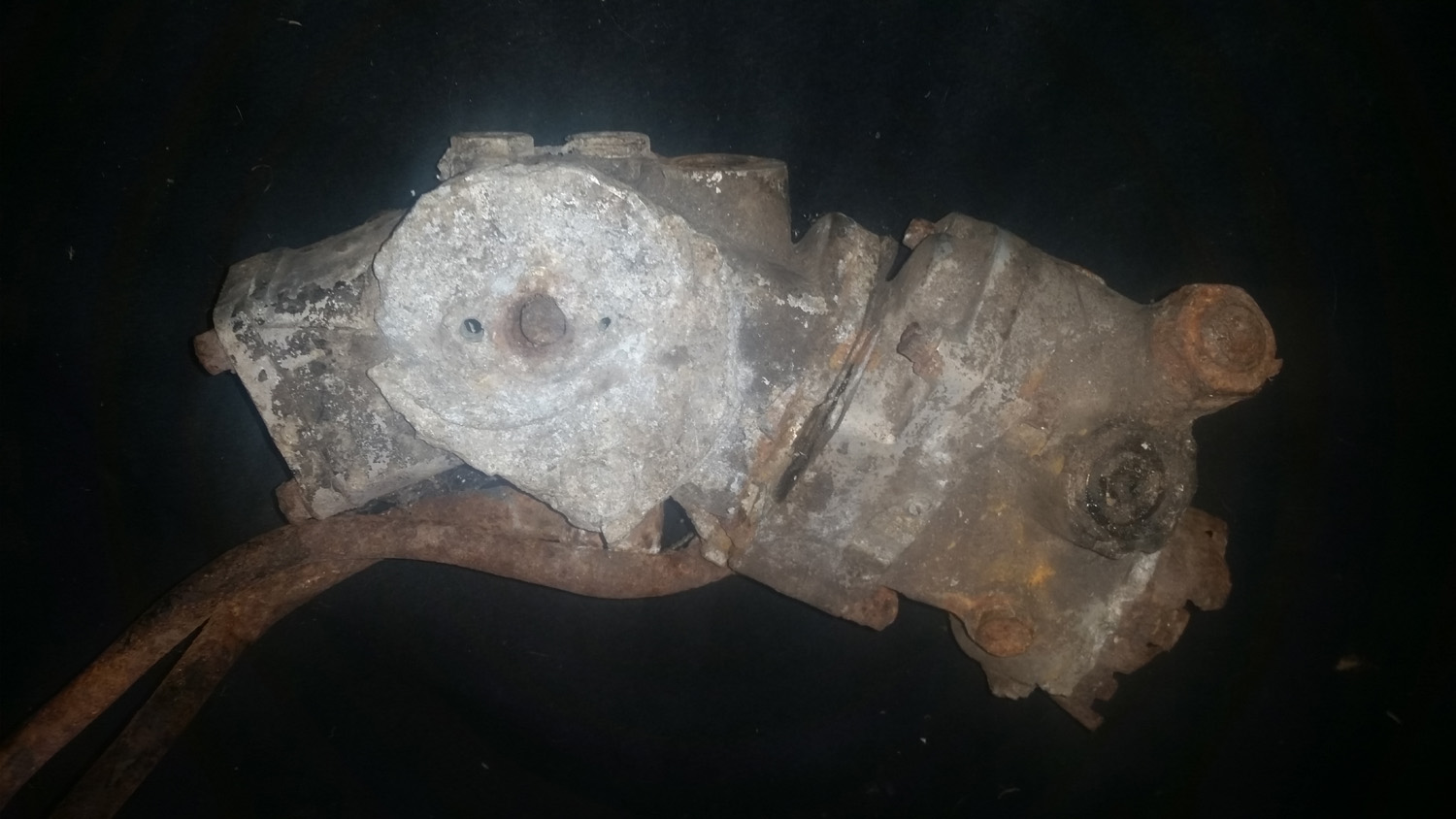

Merlin V Drive (pg2 Pwr)

Here we have a V drive that was Fitted to the Front of the Merlin

 This part is  applicable to any pre 100 series Merlin, and has the remains of a Rotol CSU fitted which controlled the Prop pitch.

In relic condition but a substantial Merlin Collectable

Out of stock more Merlin parts and complete engines always wanted please contact me



Click on the pictures to enlarge them

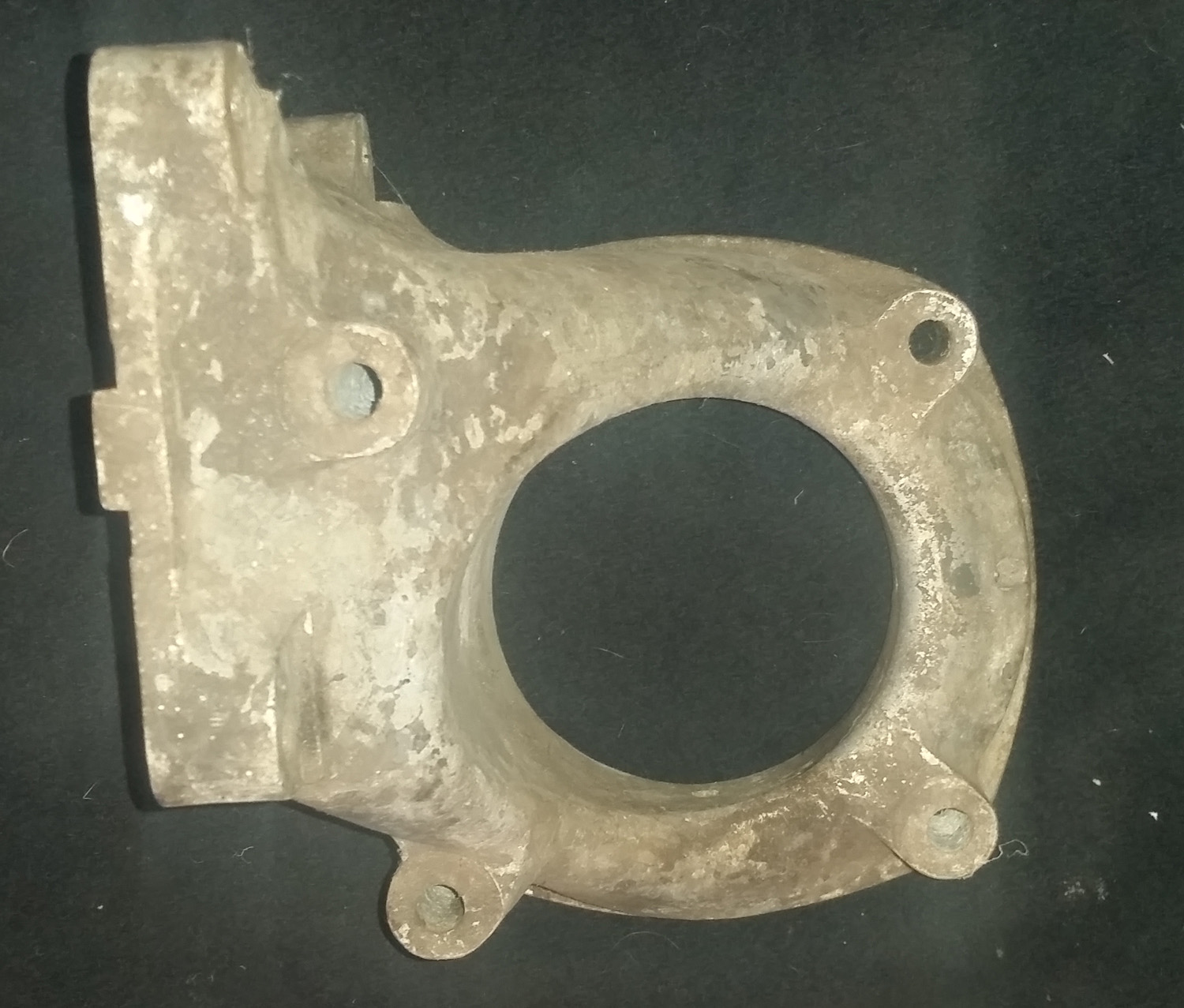

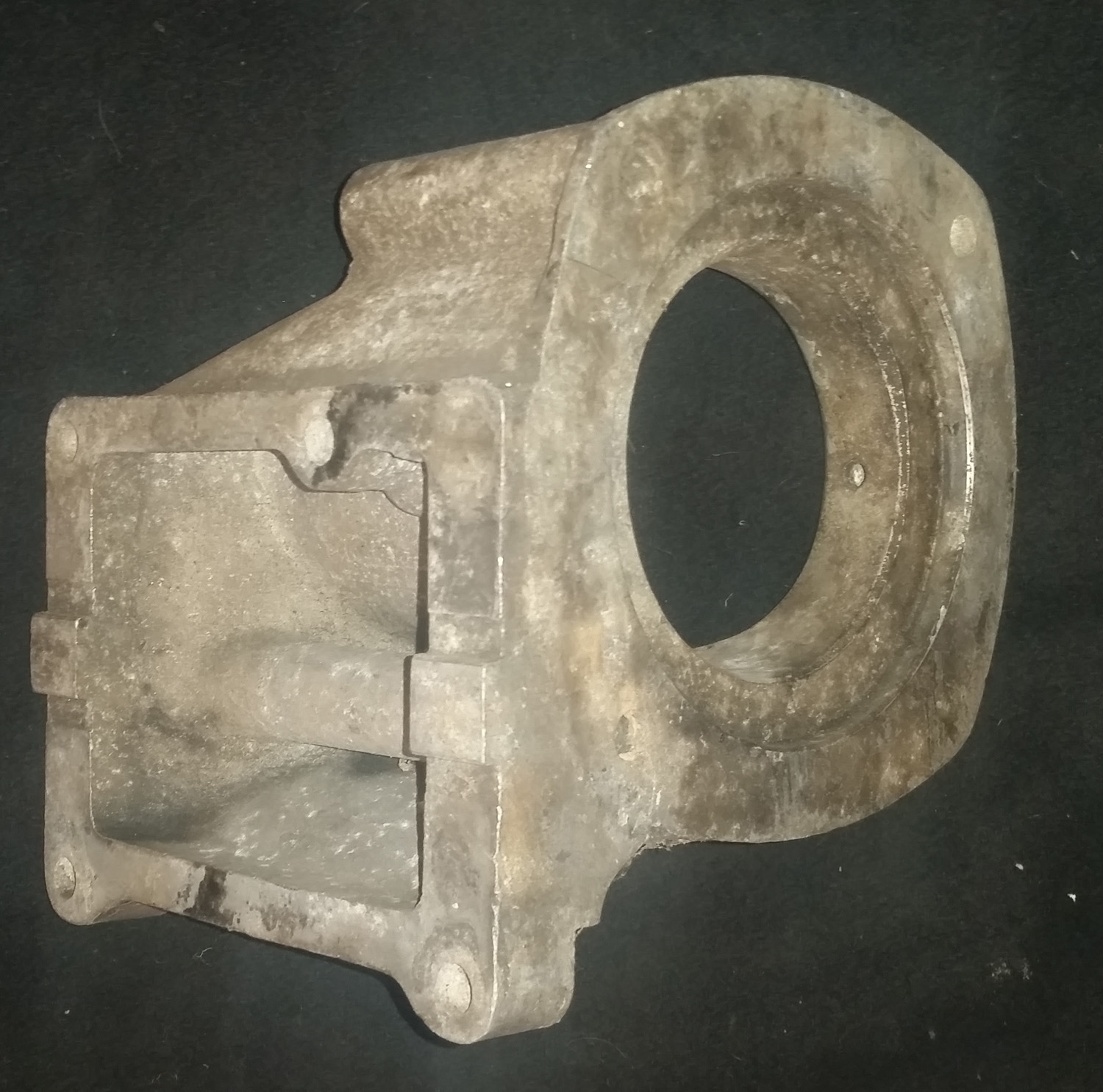

 Rolls Royce Merlin Generator Housing (pg2 pwr)

Here we have the Housing for the Generator as used in the Merlin Engine

Out of stock more wanted contact me







Click on the pictures to enlarge them

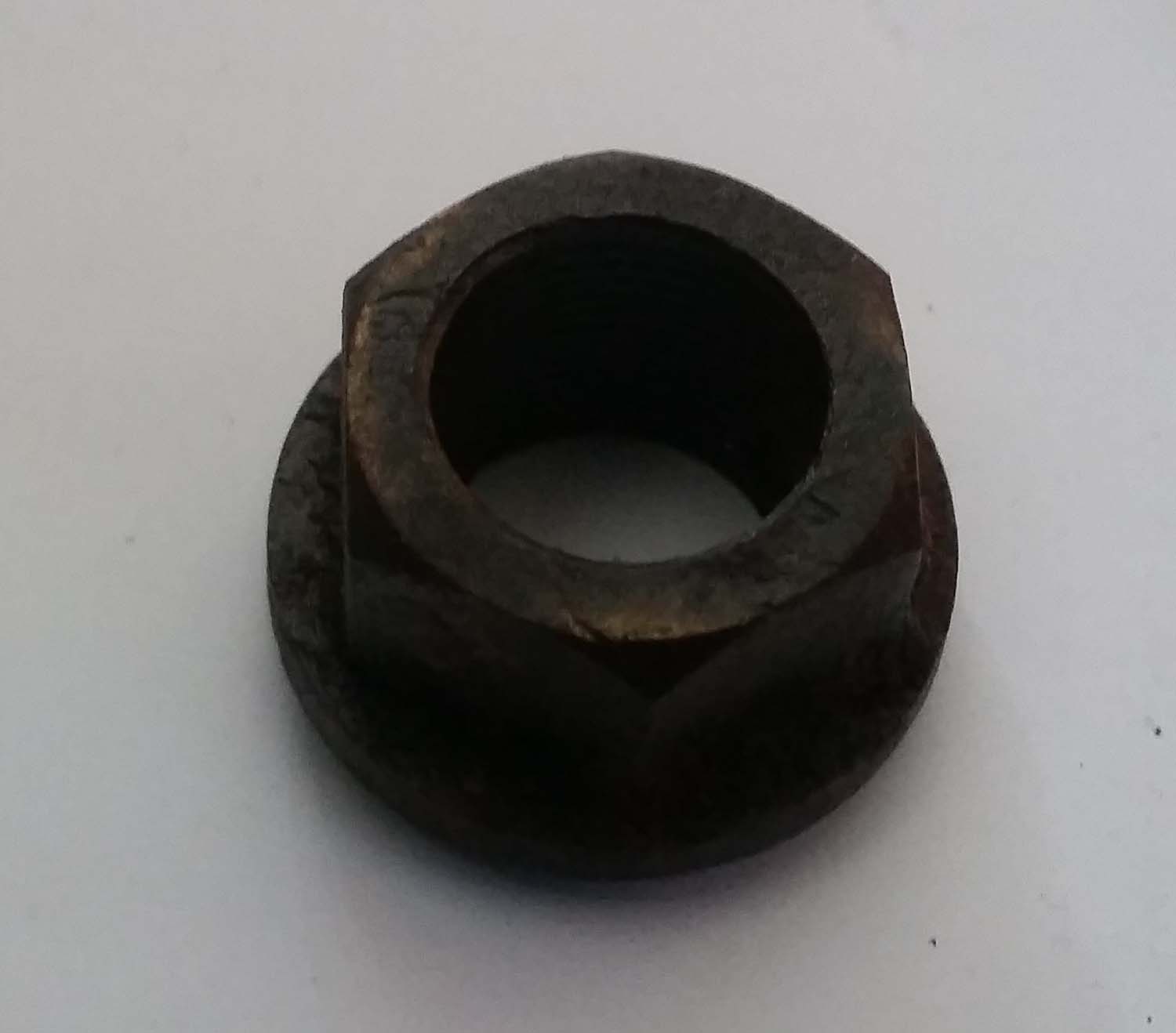

Merlin Crankcase Hold Down Nuts (pg 2 pwr)

Here we have the nuts that are used to attach the Cylinder Cover Hold Down Studs on the Rolls Royce Merlin

These have the 11/16 20 TPI Thread

Out of stock more wanted contact me

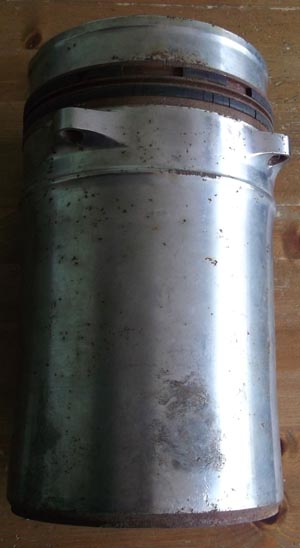

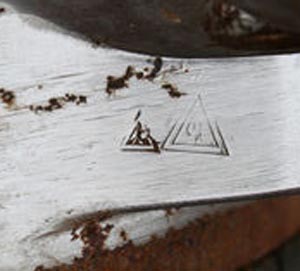

Jumo Engine cylinder liner (pg1 pwr)



This is a cylinder liner from a Jumo engine recovered from Poland. Jumo engines powered a range of WWII German aircraft including the BF 109.



Out of stock more wanted contact me

Click on the pictures to enlarge

Out of stock more wanted contact me

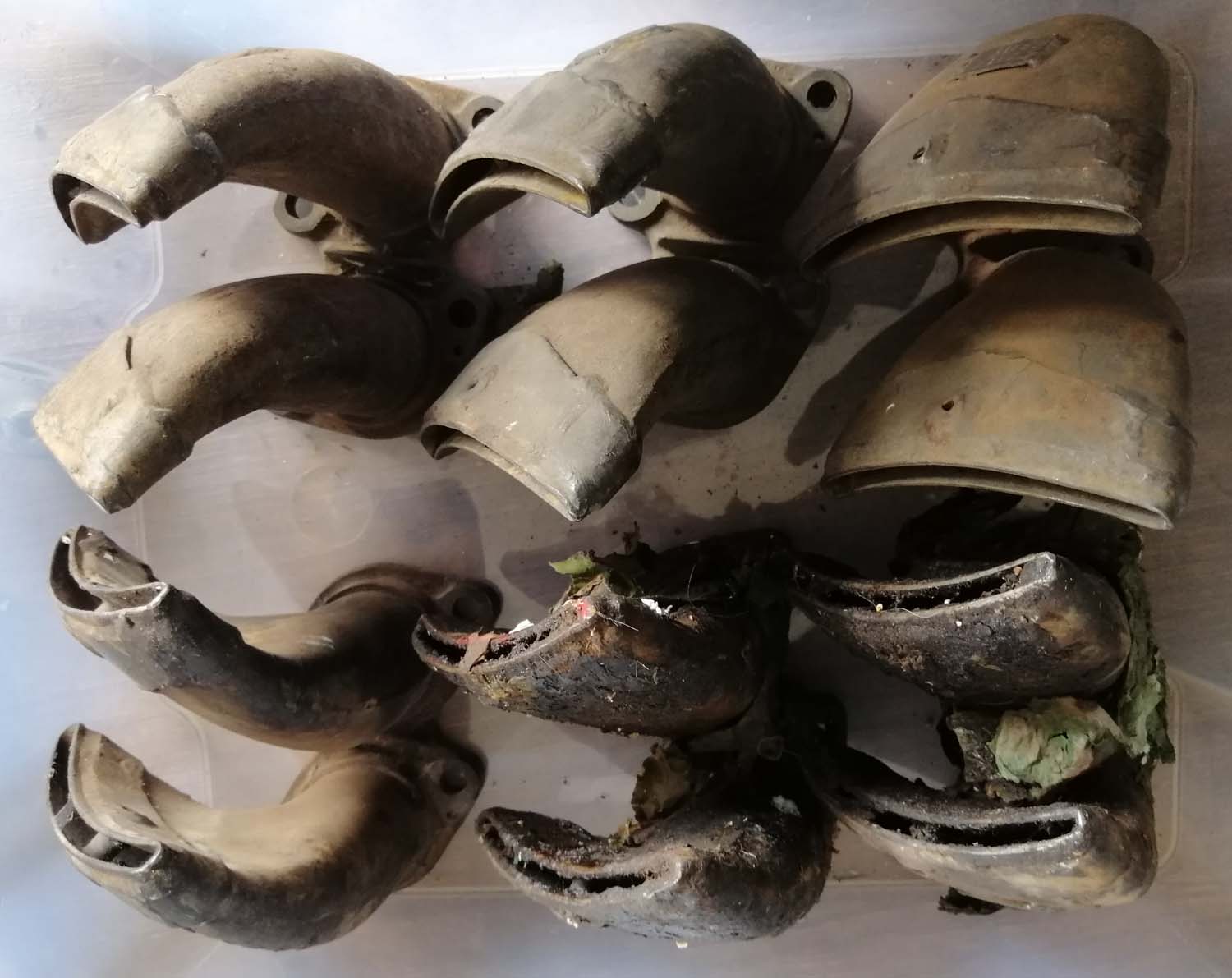

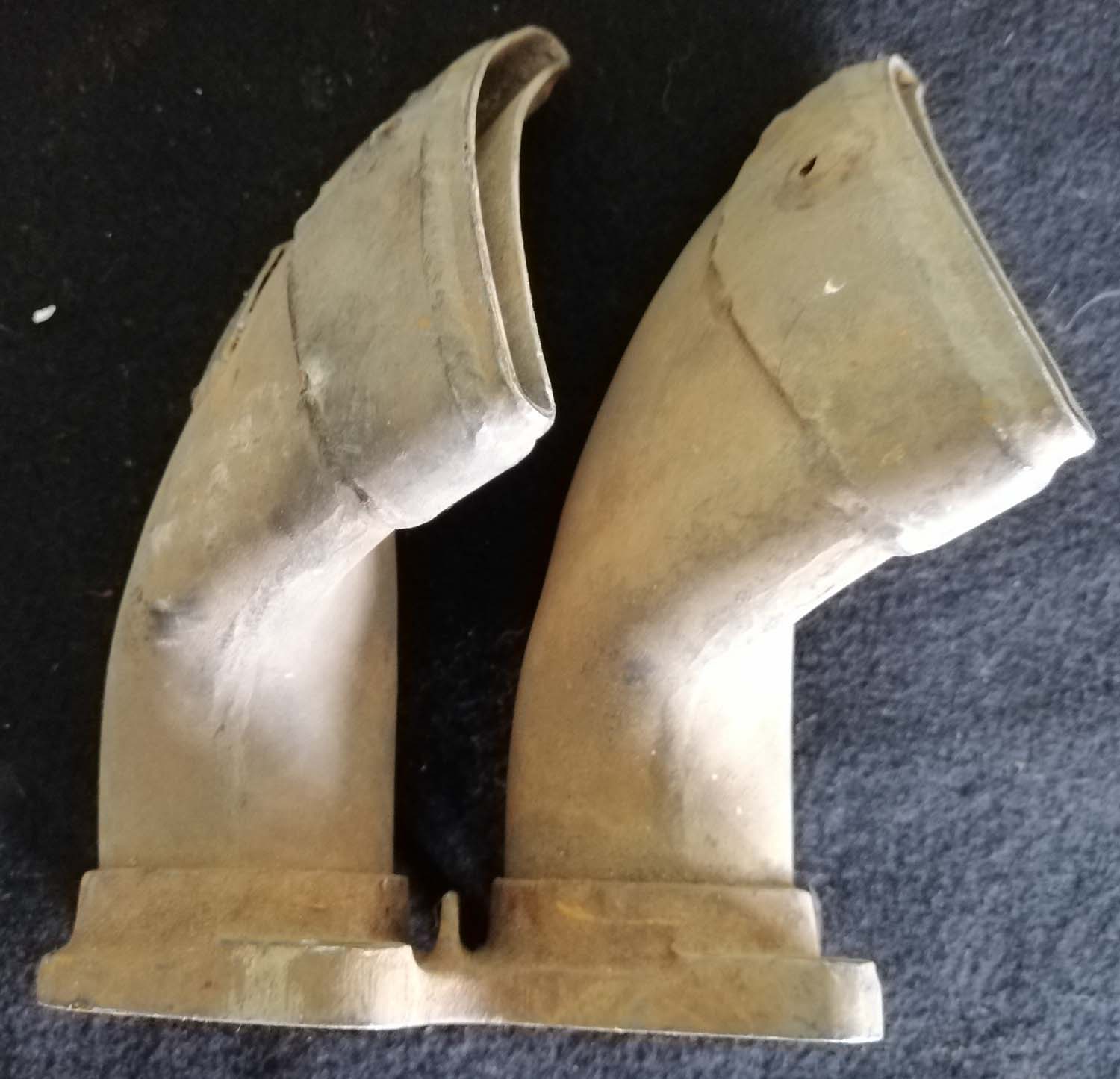

Griffon Exhaust stubs (pg1 pwr)

Here we have exhaust stubs for the Rolls Royce Griffon. They are all in good serviceable condition some still in their original grease wrapping.

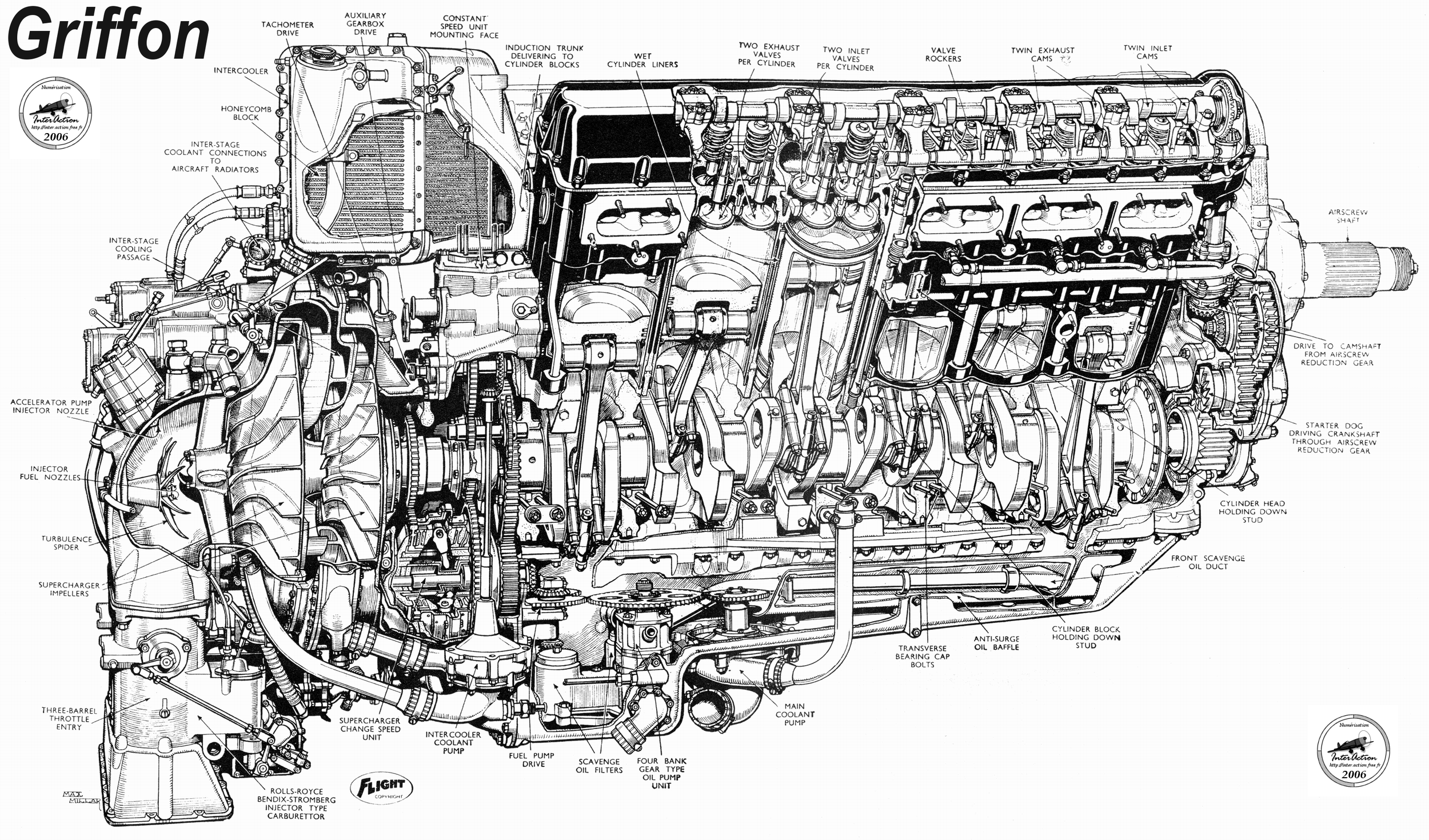

The successor of the great Merlin engine, the Rolls-Royce Griffon

Seen under the MK XIV Spitfire the first Mk of Spitfire to be fitted with the Griffon

Griffon development began in response to a request from the Fleet Air Arm of the Royal Navy in 1938. Navy aircraft tend to be larger and heavier than their land-based counterparts; this obviously puts greater demands on the engine if performance is to be maintained. To meet this demand, Rolls-Royce went back to the concept of the Schnider Air Racing Trophy “R” engine. The Griffon, essentially a modernized Merlin, is a 60 degree V-12 with 2239 cu. in. displacement (the same parameters as the “R” and 36% greater displacement than the Merlin while having an only slightly larger frontal area.) However, this was a totally new engine, featuring many design updates and improvements over the Merlin.

Click on pictures to enlarge

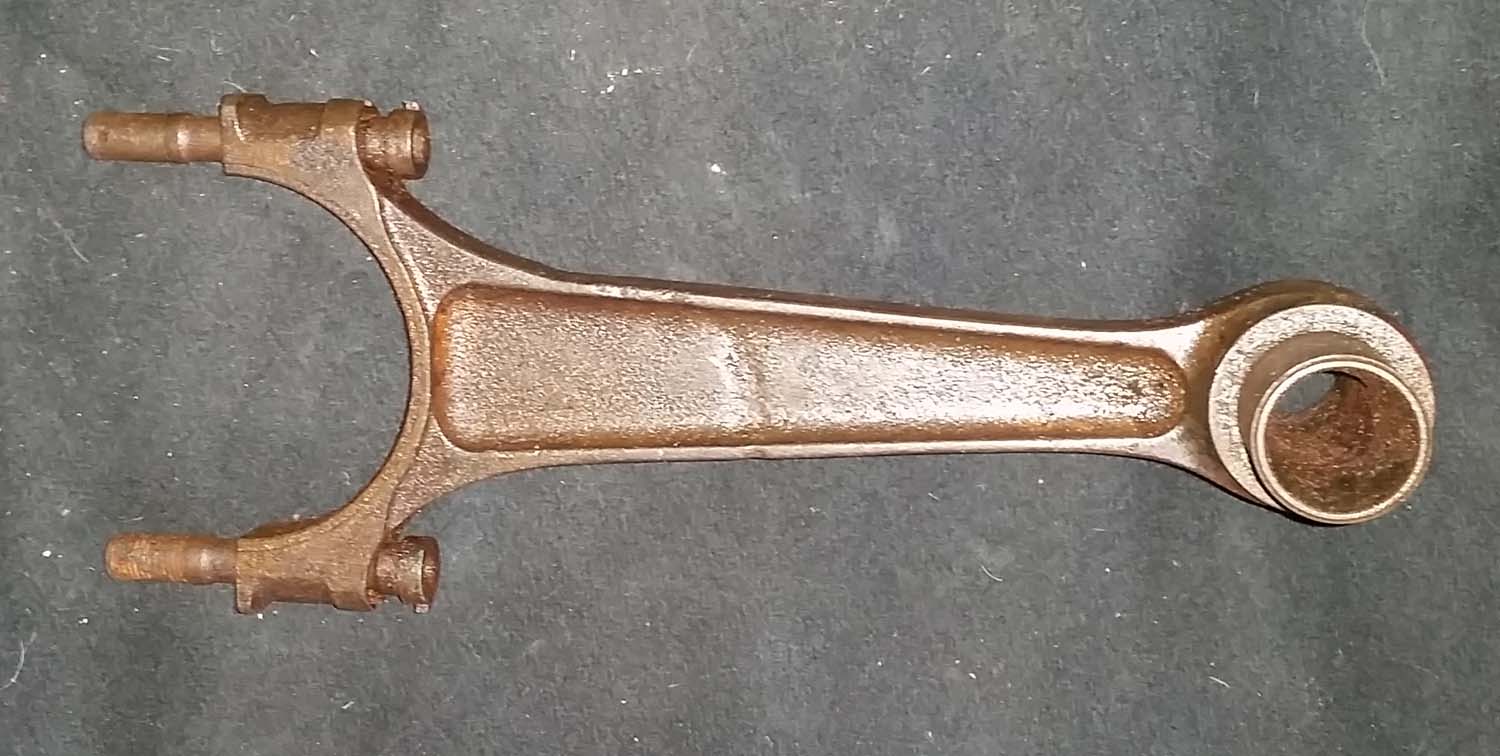

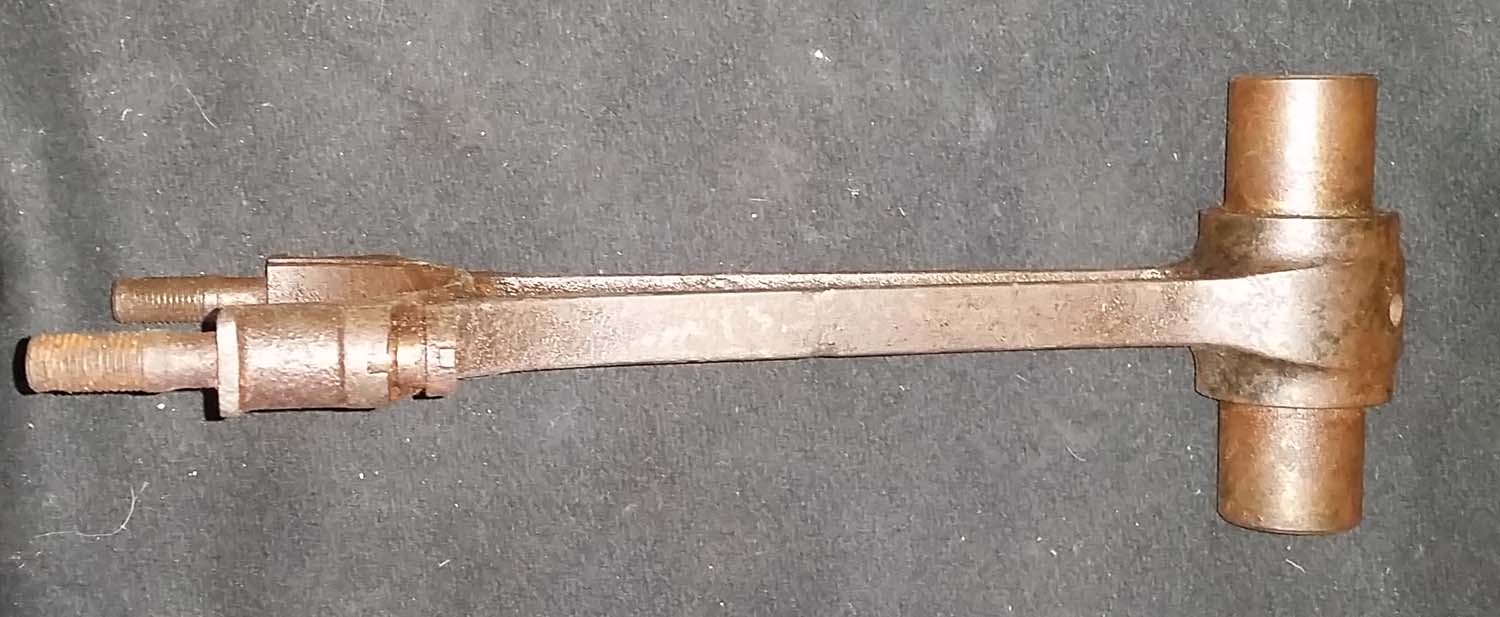

Merlin Con Rod (No 8 pg 1 PWR)

Here we have the Con Rod From a Rolls Royce Merlin Engine.

In a reciprocating piston engine, the connecting rod or conrod connects the piston to the crank or crankshaft. Together with the crank, they form a simple mechanism that converts reciprocating motion into rotating motion.

As a conrod is rigid, it may transmit either a push or a pull and so the rod may rotate the crank through both halves of a revolution, i.e. piston pushing and piston pulling.

Out of stock more wanted contact me

Click on the pictures to enlarge

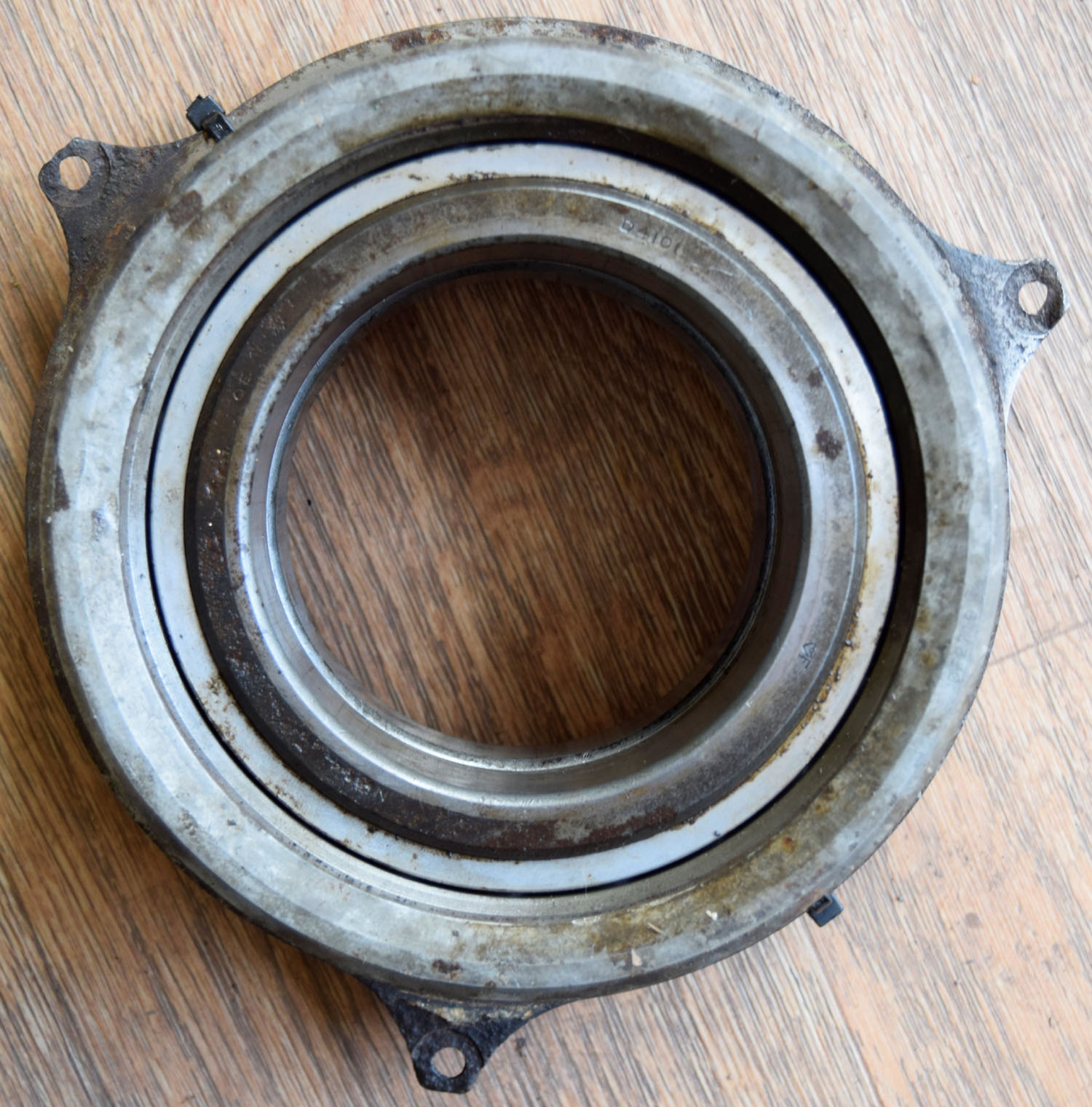

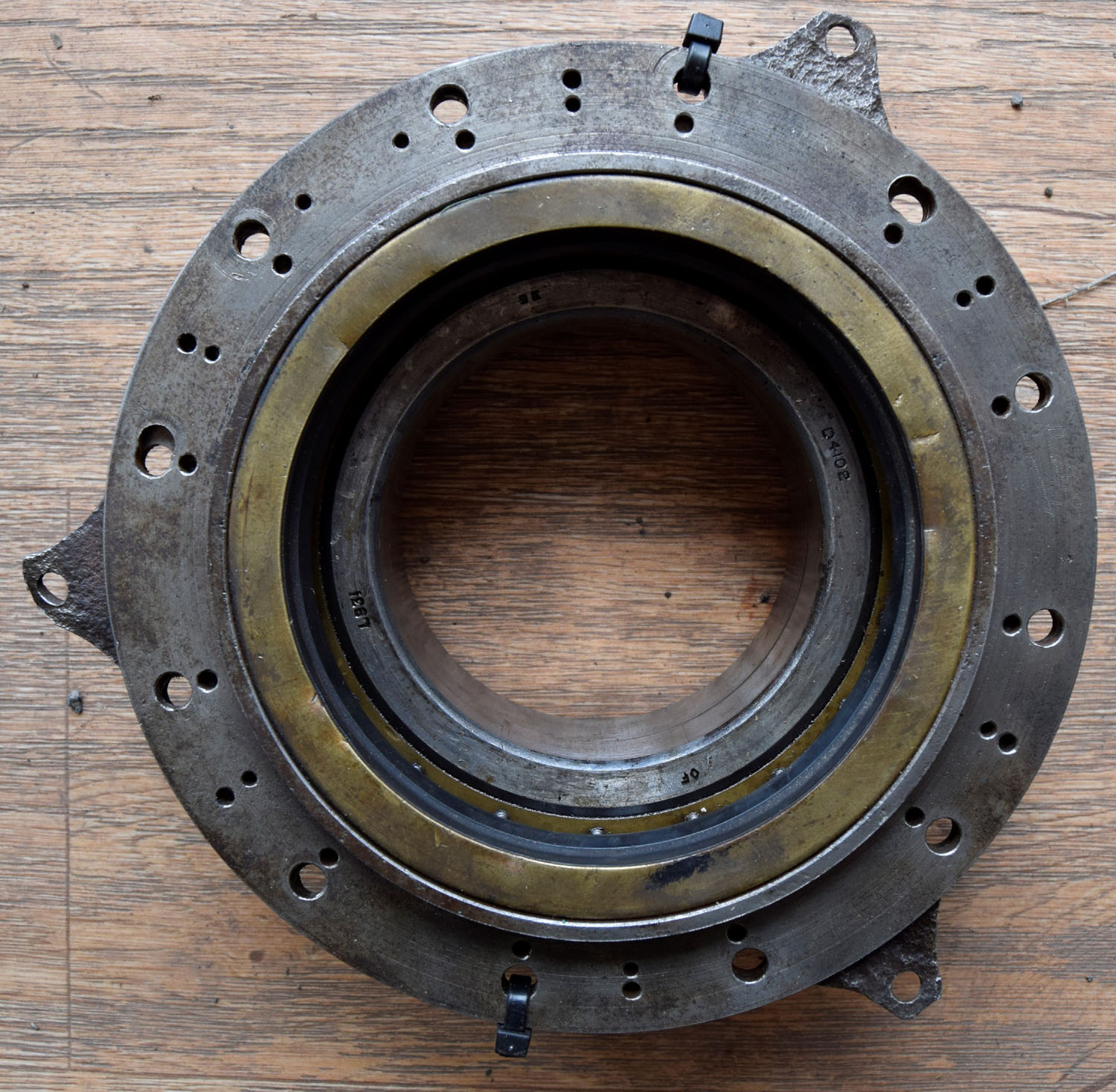

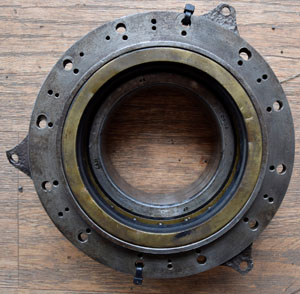

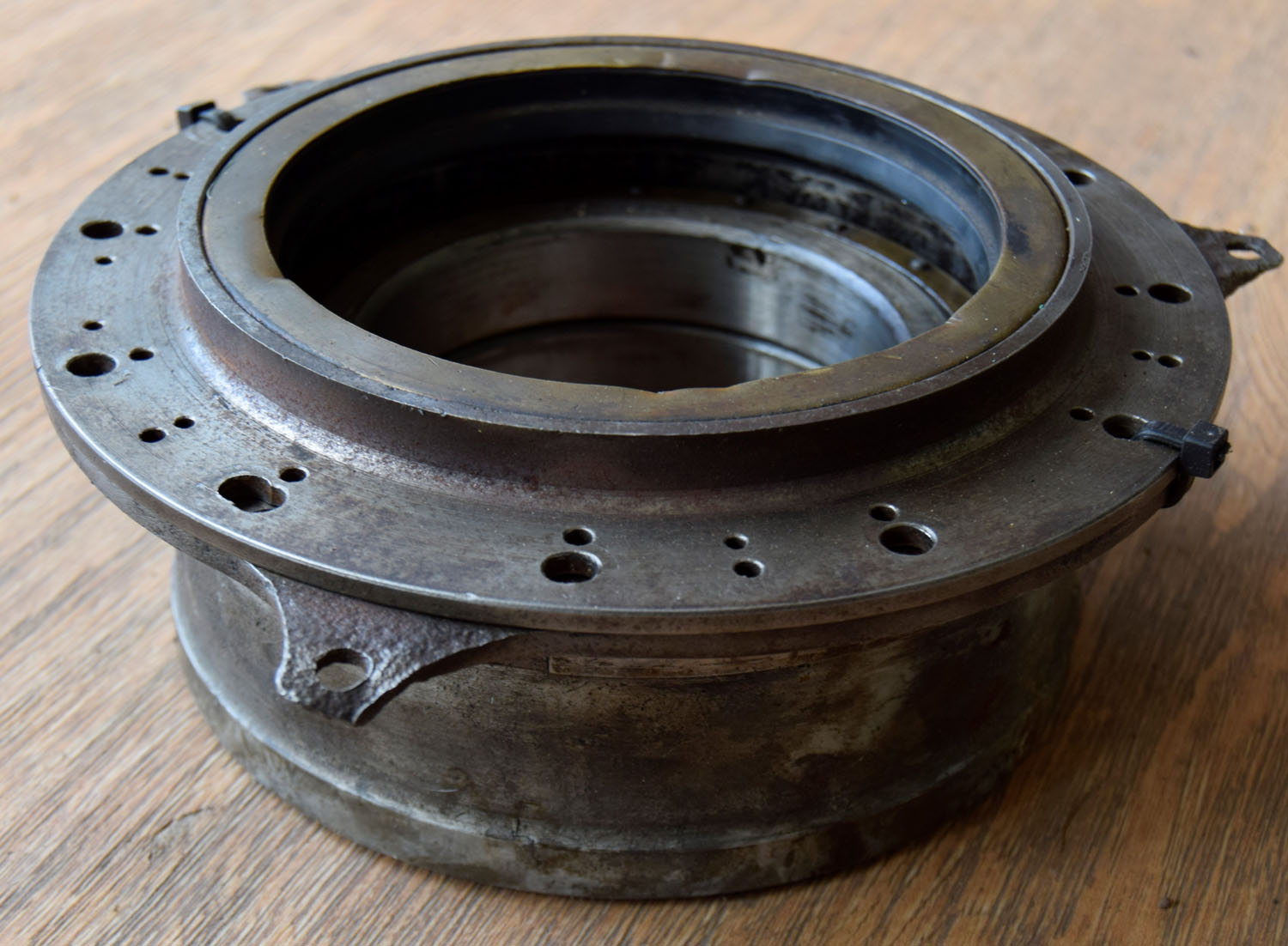

 Merlin reduction gear bearing (pg1 Pwr)

Here is a reduction gear bearing from a Merlin it appears to be in good condition but the lugs are slightly bent and do have some corrosion.

Click on the pictures to enlarge

Internal diameter approximately 100 mm or 4" External diameter approximately  225 or 9"

Visable Part Numbers D 4101. D4162.  L031

Out of stock more Merlin parts and complete engines always wanted please contact me

This is quite a heavy piece overseas buyers please contact me for a shipping quote.
