Brake gauges

Page 10 Instruments

RAF Brake gauges indicators are generic instruments, the aircraft shown in our adds did use the parts shown but they may of course been used in a different type of aircraft . If you are not sure what part you require then please contact us and I will do my best to advise you on the most suitable purchase. Triple  brake gauges were used in practically every RAF from the Lancaster to the Spitfire.

Page 1 Instruments Home       Page 2 Airspeed Indicators       Page 3 Altimeters       Page 4 Boost Gauges       Page 5 Clocks & Compasses

Page 6 Climb & Descend      Page 7 Directional Indicators & Artificial Horizon       Page 8 Fuel gauges       Page 9 Flap Indicators

 Page 10 Brake Gauges      Page 11 Oxygen Gauges      Page 12 Pressure Gauges      Page13 Revolution Counters      Page 14 Temperature Gauges

  Page 15 Turn & Slip       Page 16 Undercarriage Indicators      Page 17 Trim Gauges      Page 18 Volt & Ammeter

£125

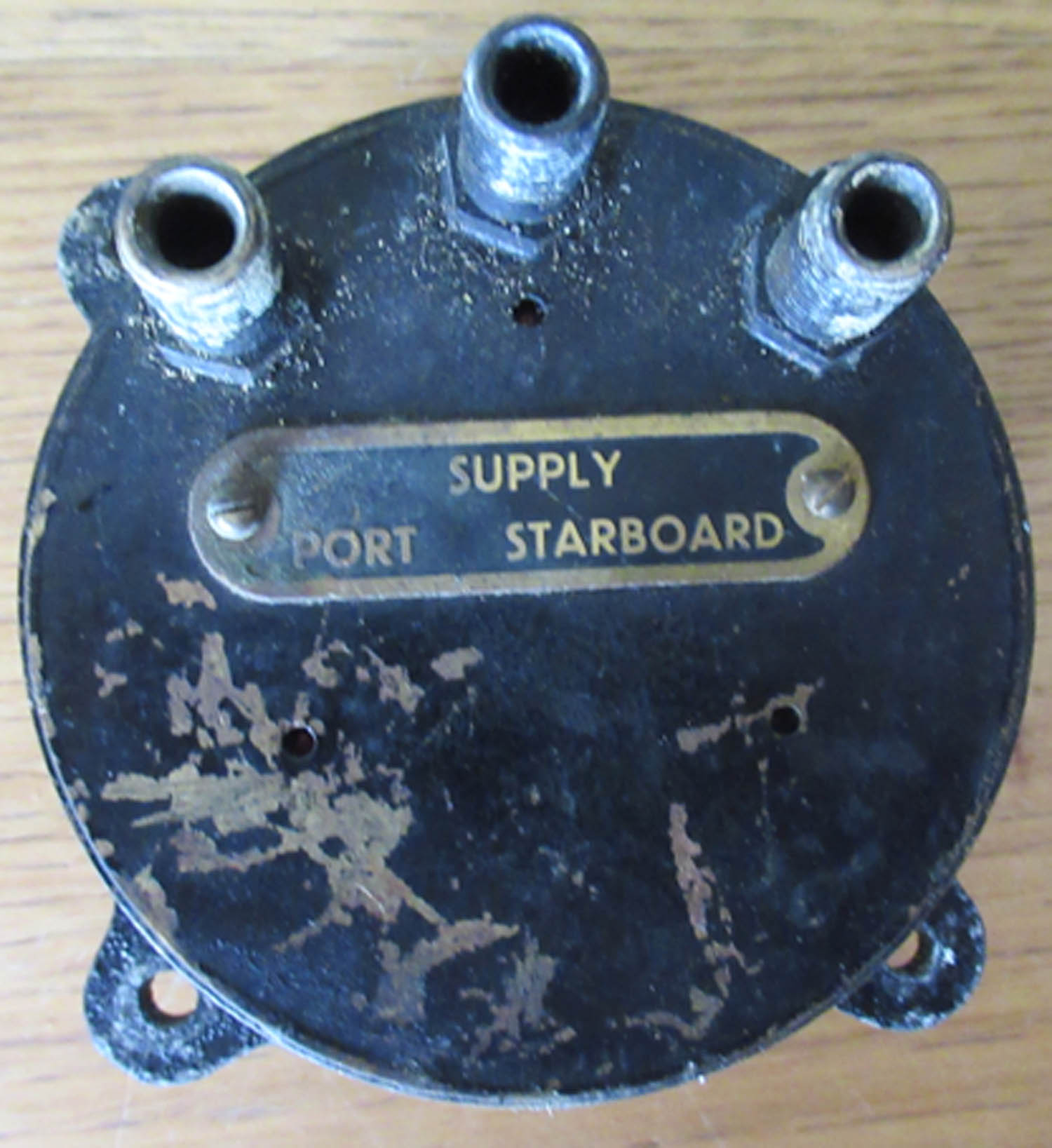

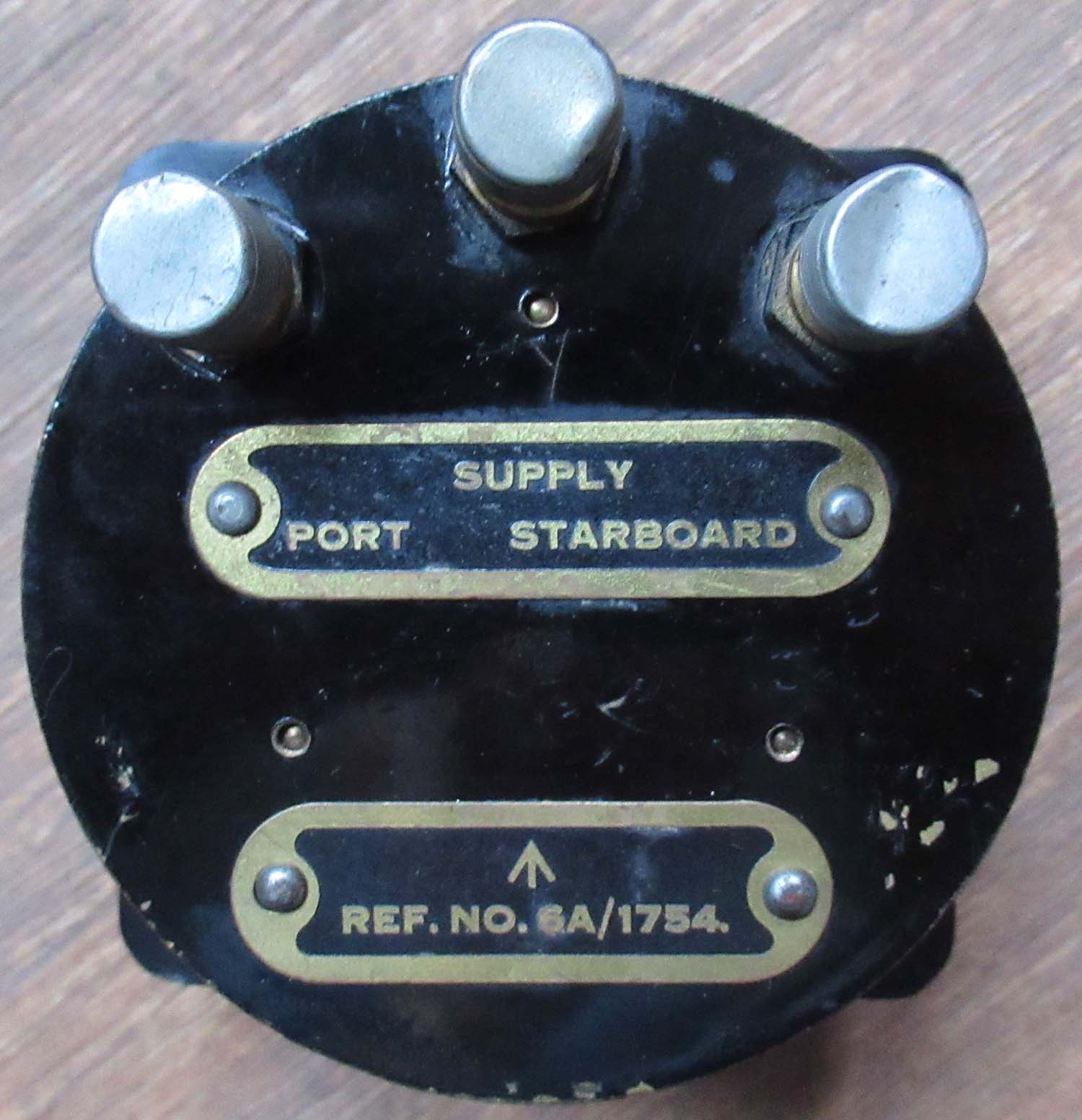

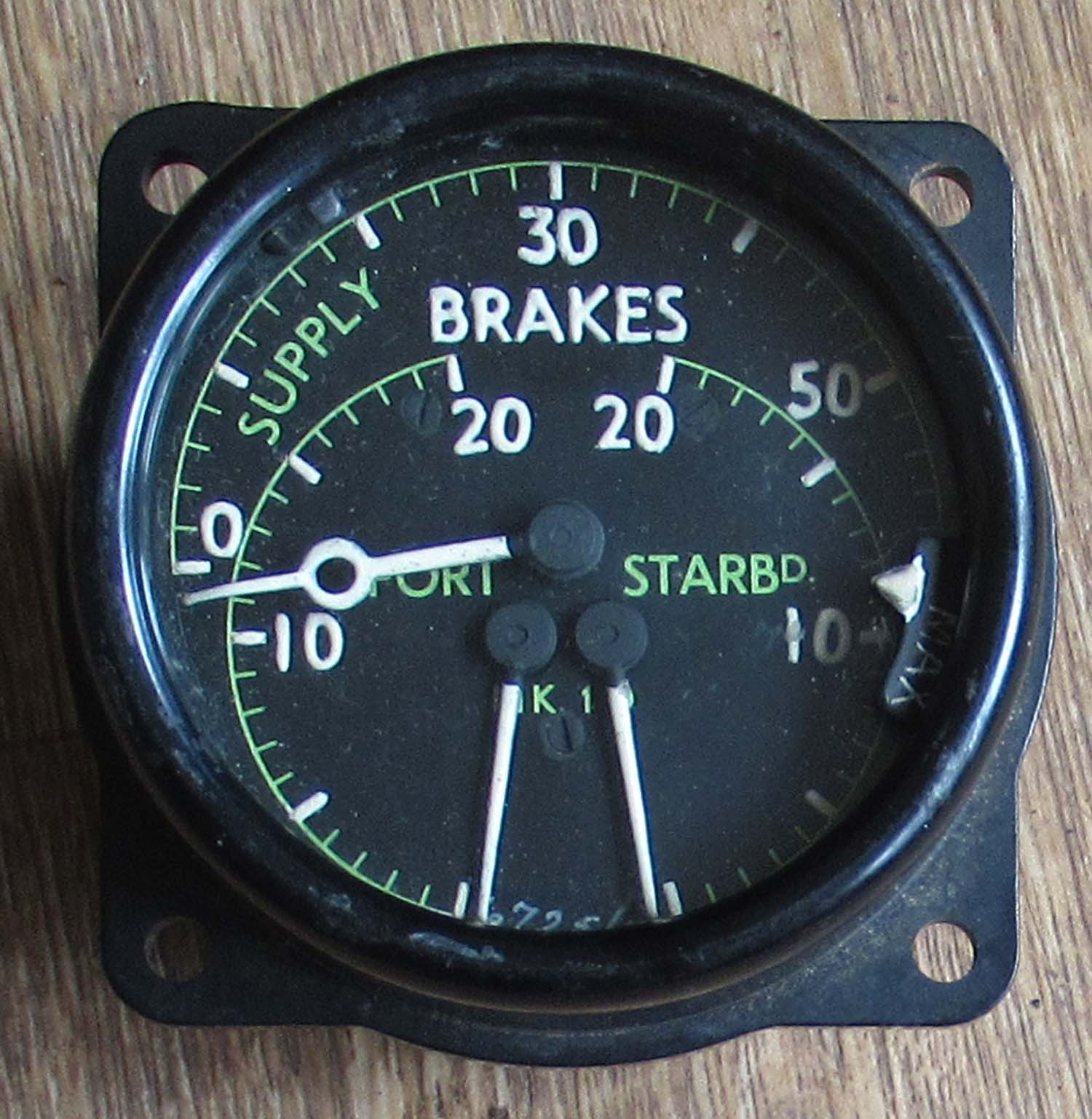

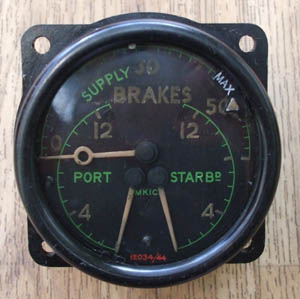

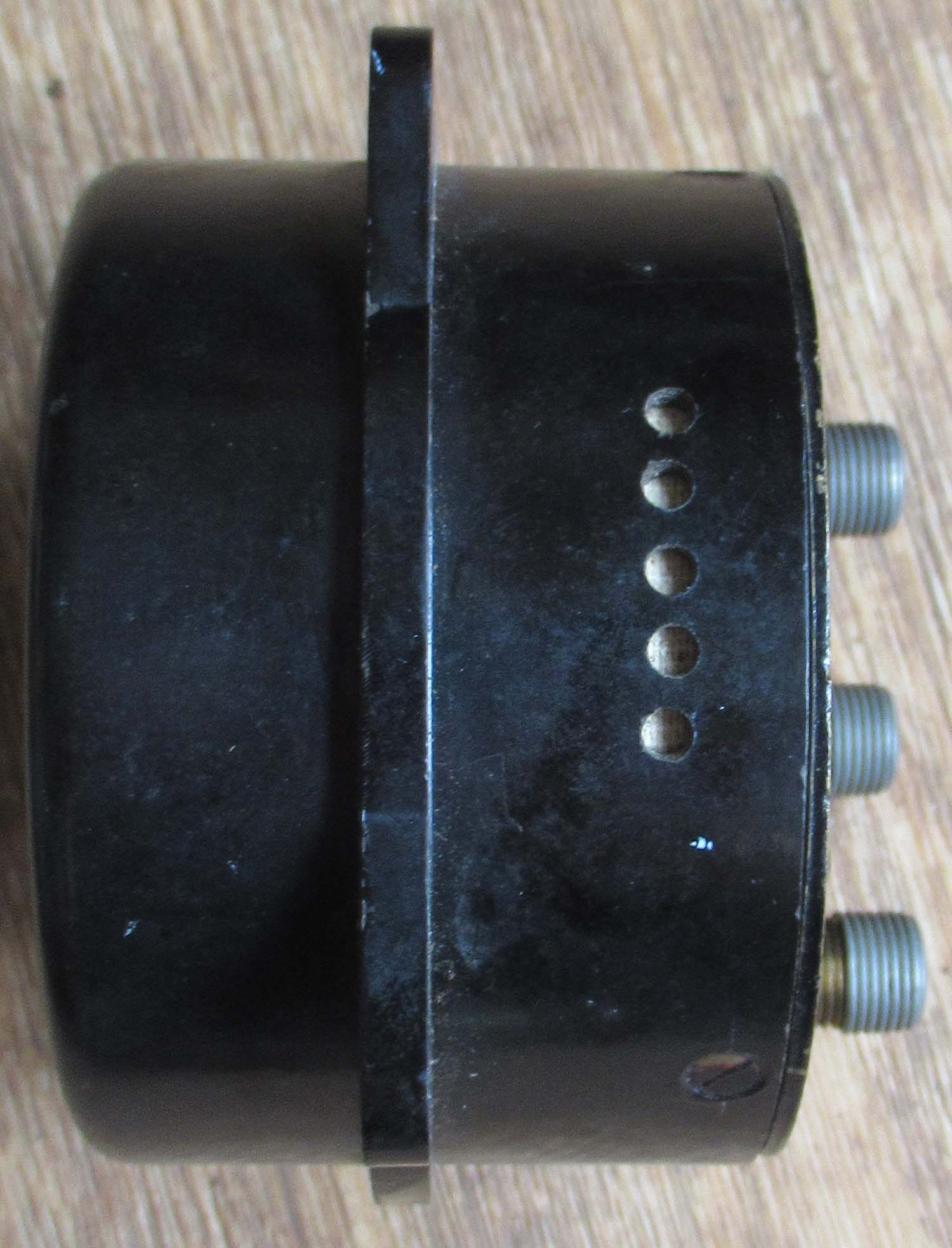

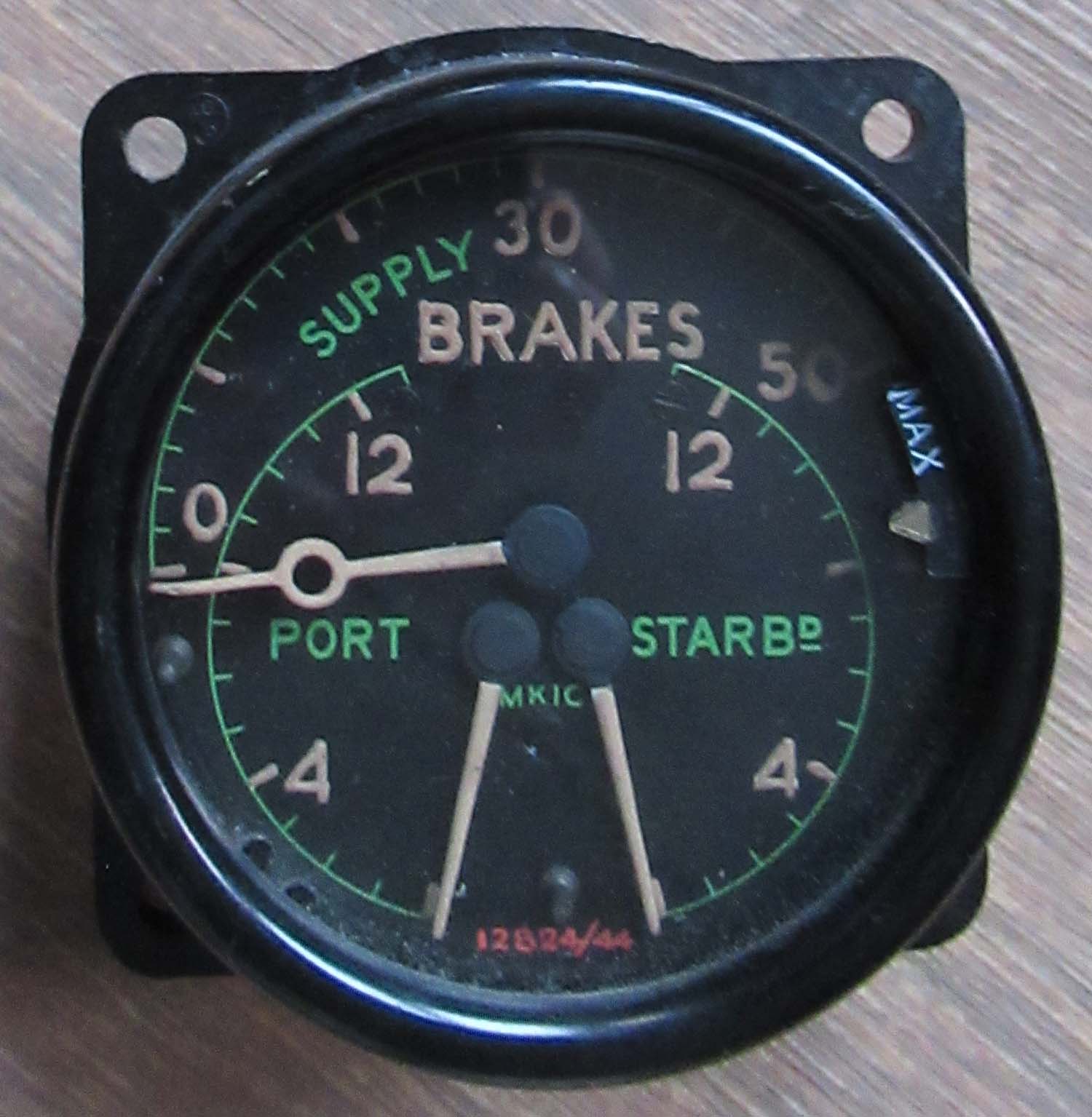

Triple Brake Gauge (Instruments pg 10 Brake gauges 1 )

A nice clean example of a triple brake gauge used in practically all WWII RAF aircraft including the Spitfire, Hurricane, Lancaster and Mosquito to name a few.

Dated 1944

Mk IC 6A/1754

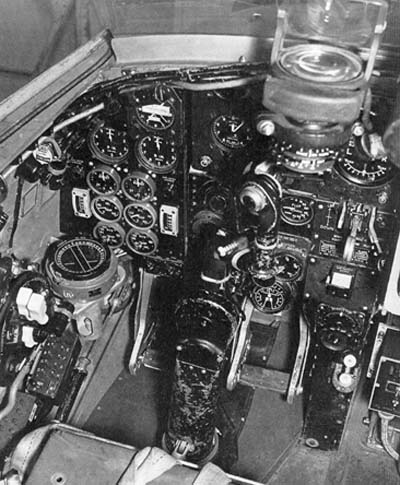

Seen in situ  in a Mosquito Cockpit just above the right rudder pedal.

 Click on the picture's to enlarge .

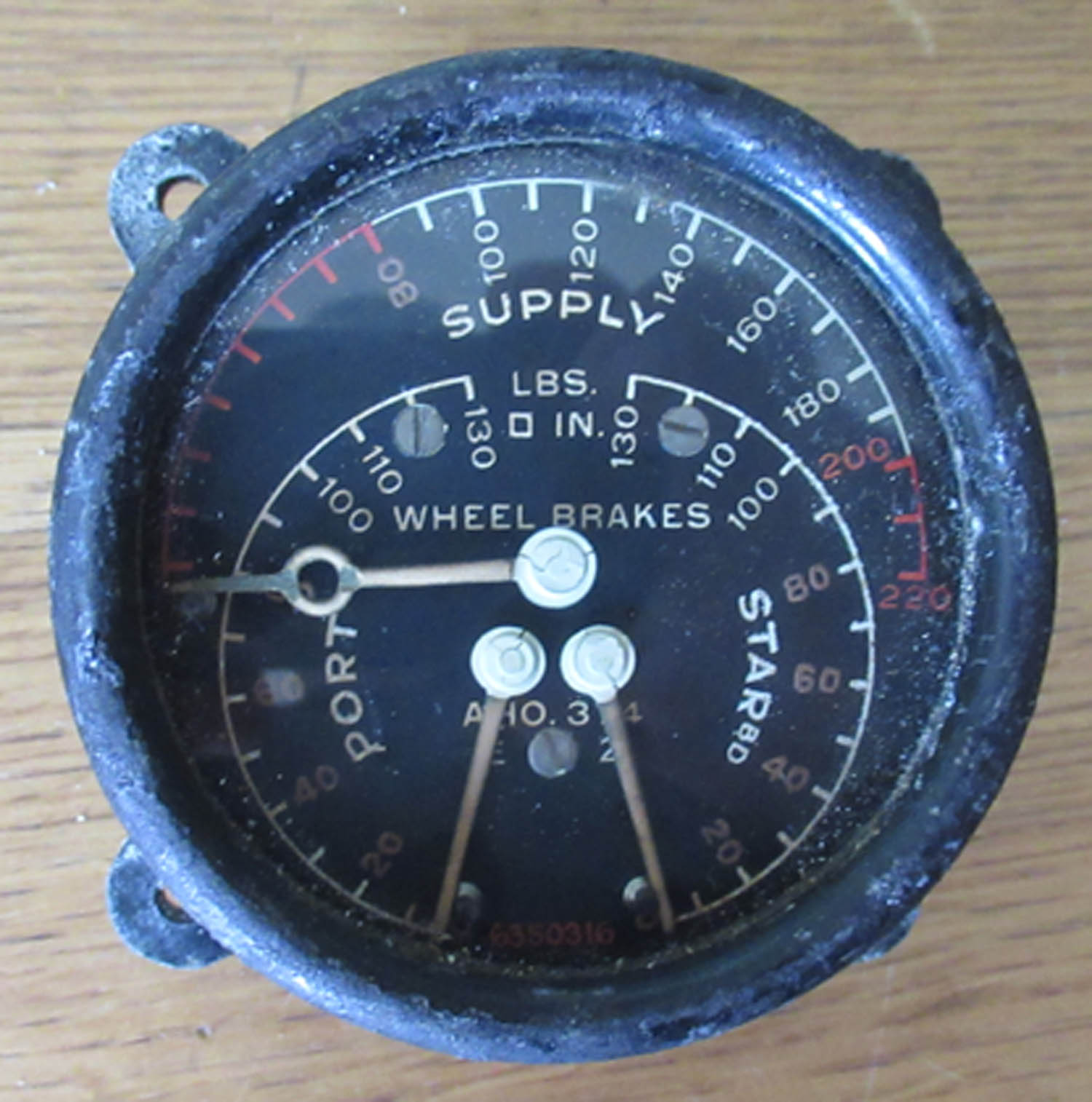

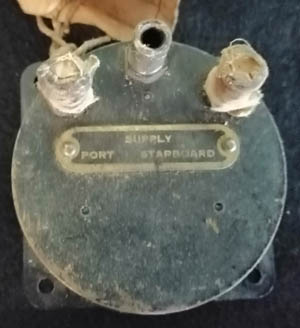

Triple Brake Gauge AHO 374 (Instruments pg 10 Brake gauges 8 )

This is a very early brake gauge in good original condition. the case and bezel are entirely made of alloy as opposed to bakolite.

 AHO 374

Out of stock



Click on the picture's to enlarge

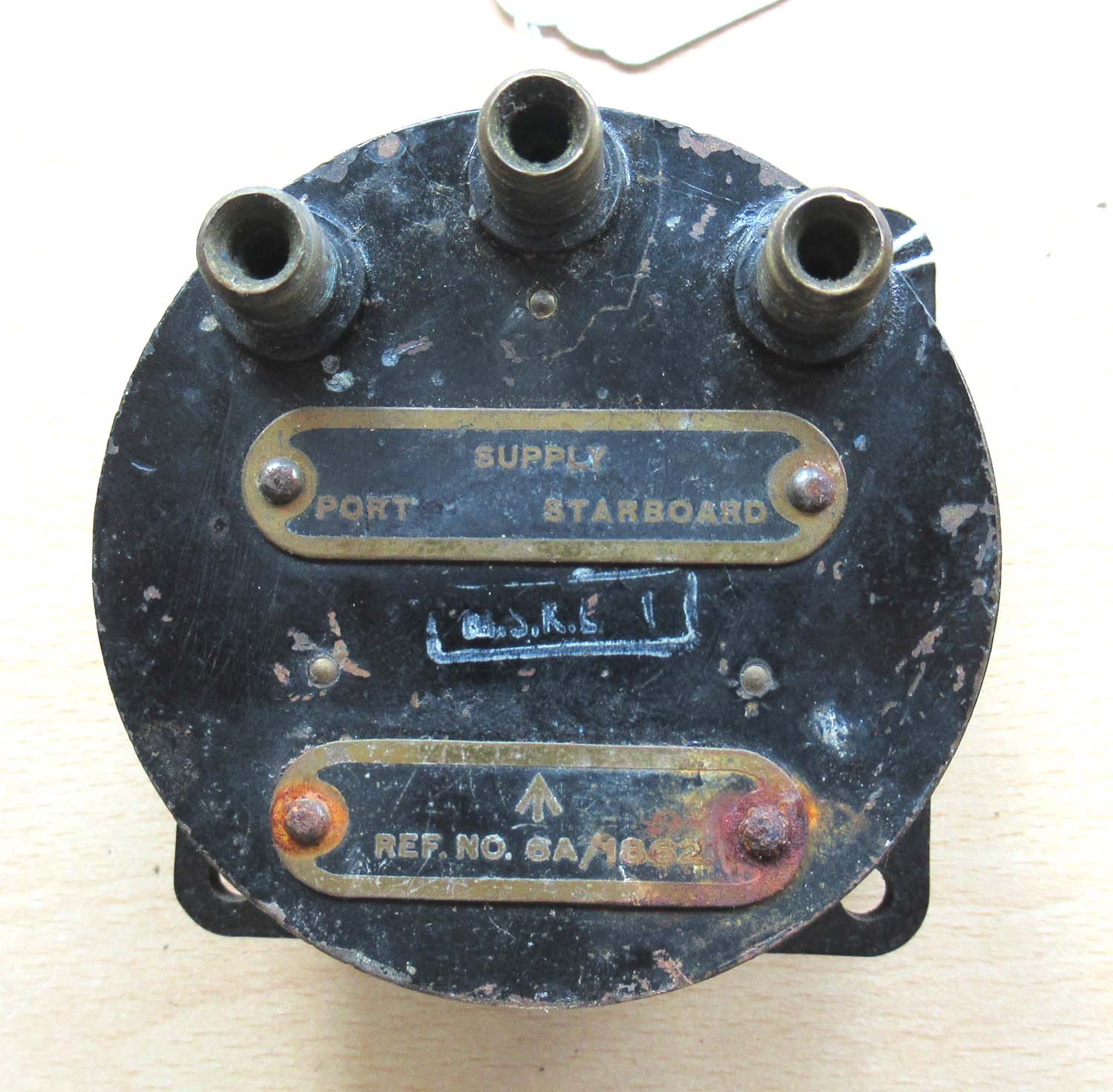

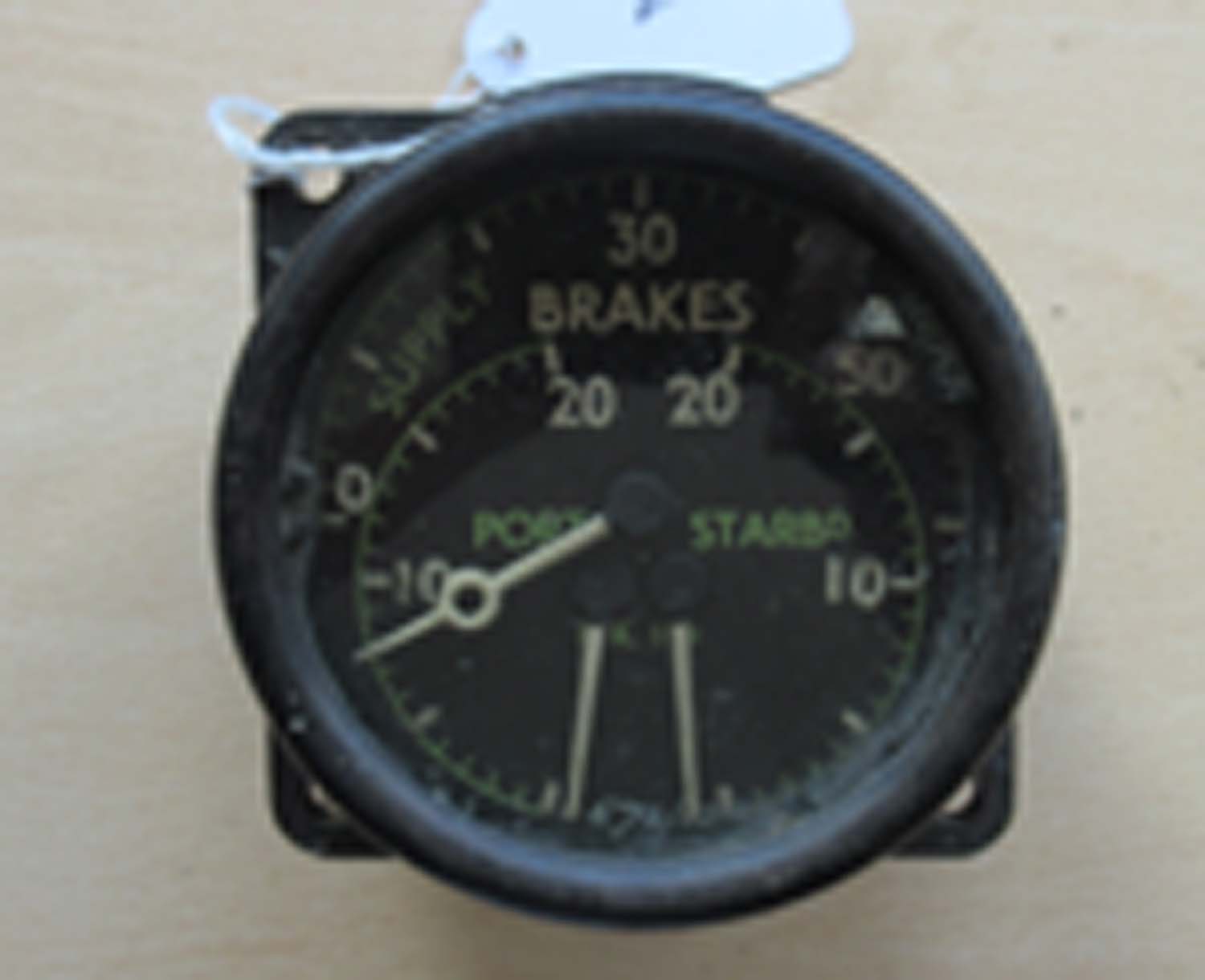

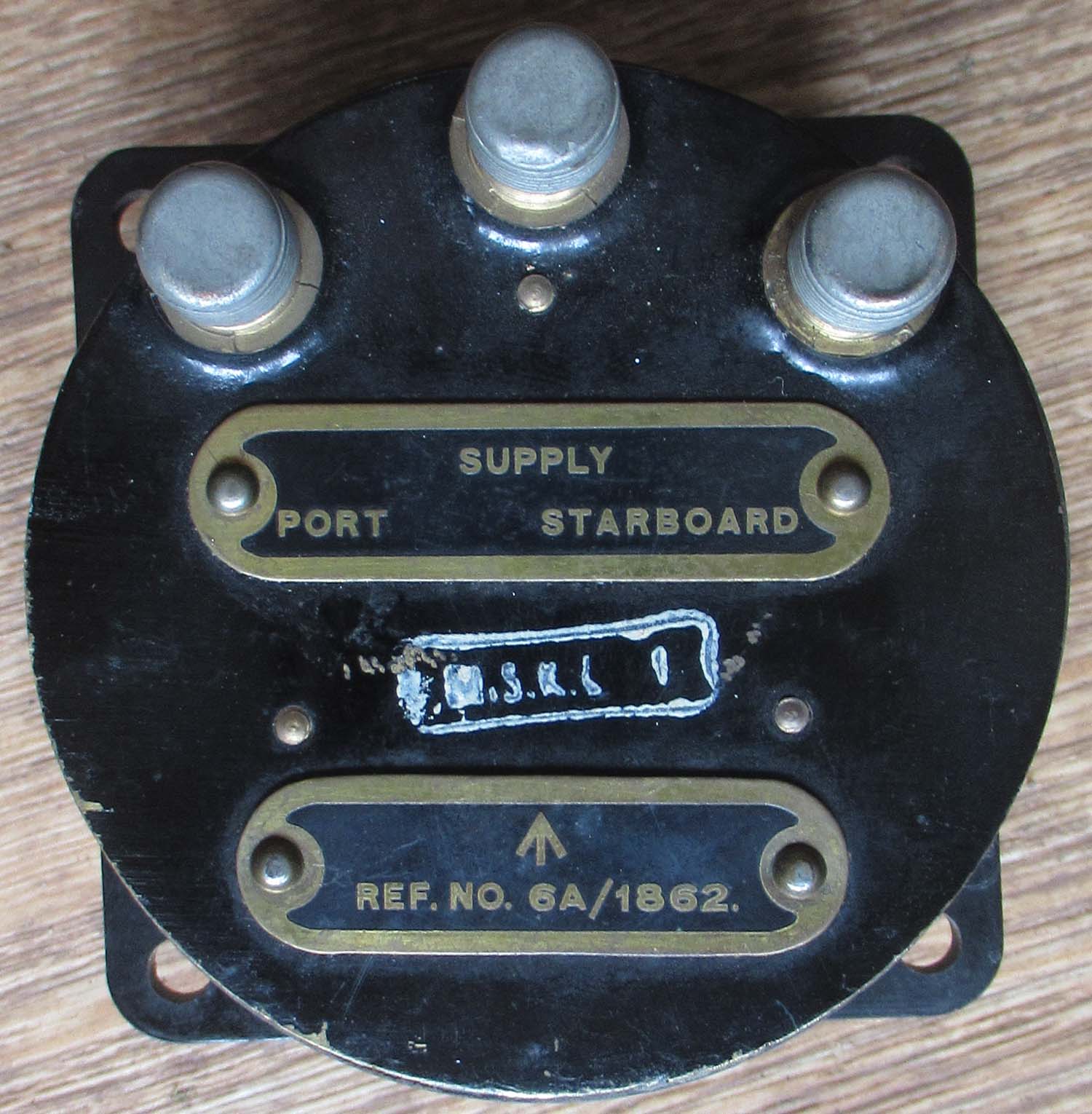

Triple Brake Gauge (Instruments pg 10 Brake gauges 2 )



6A/1852

This instrument has one missing lug

£75

Click on the picture's to enlarge

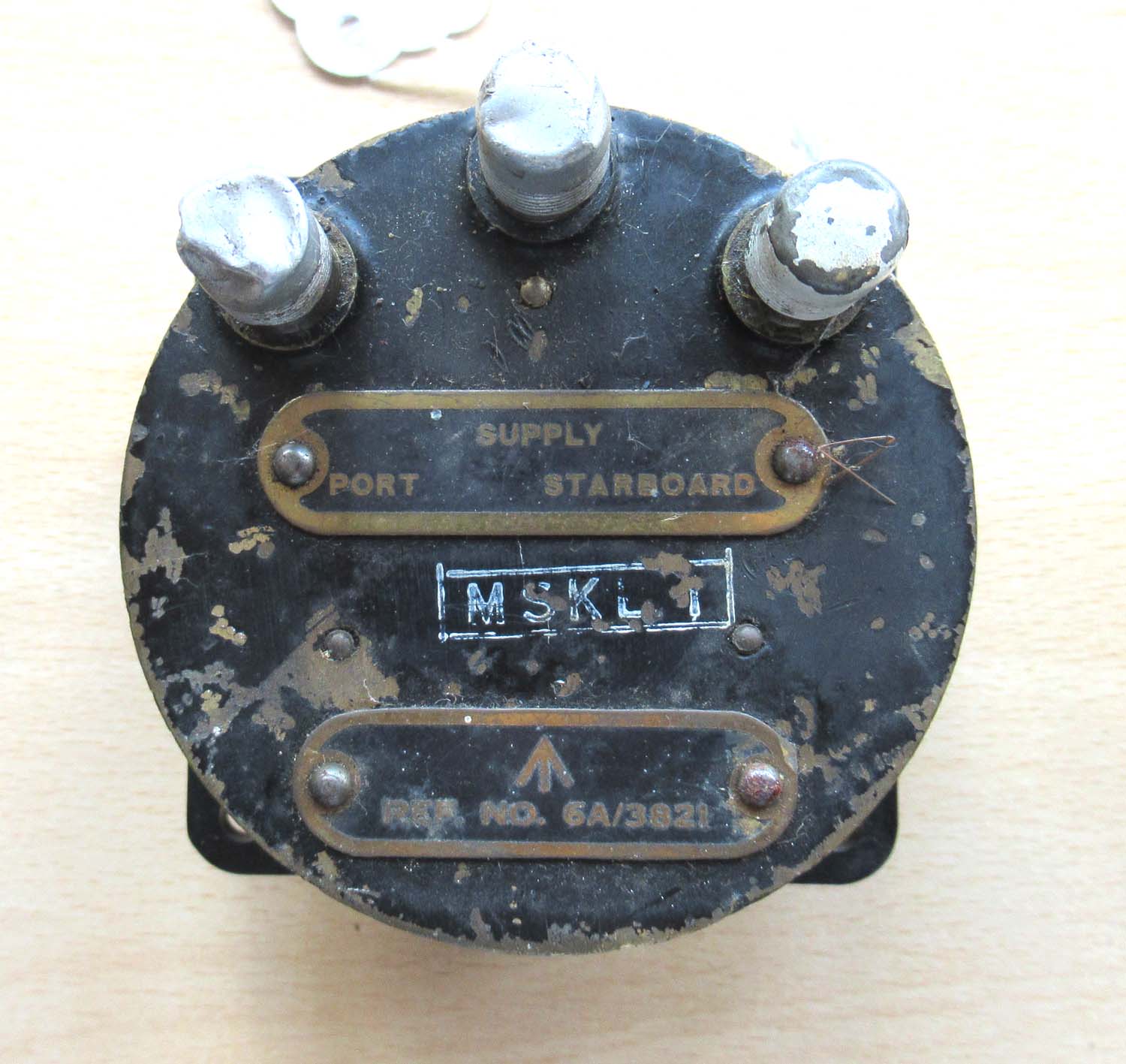

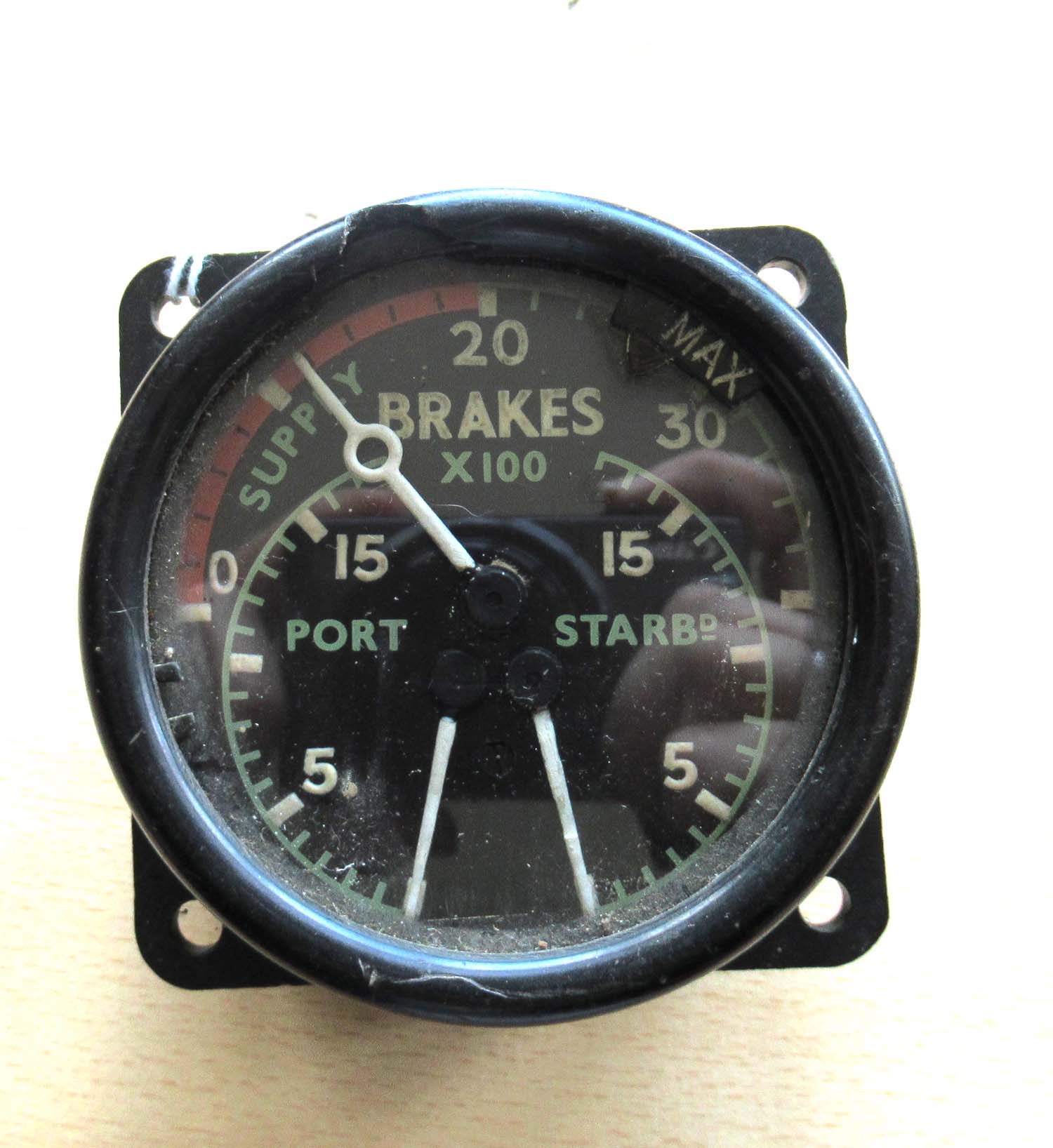

Triple Brake Gauge (Instruments pg 10 Brake gauges 3 )

Has a small chip on the bezel as seen on the picture.



6A/3821

£75

Click on the picture's to enlarge

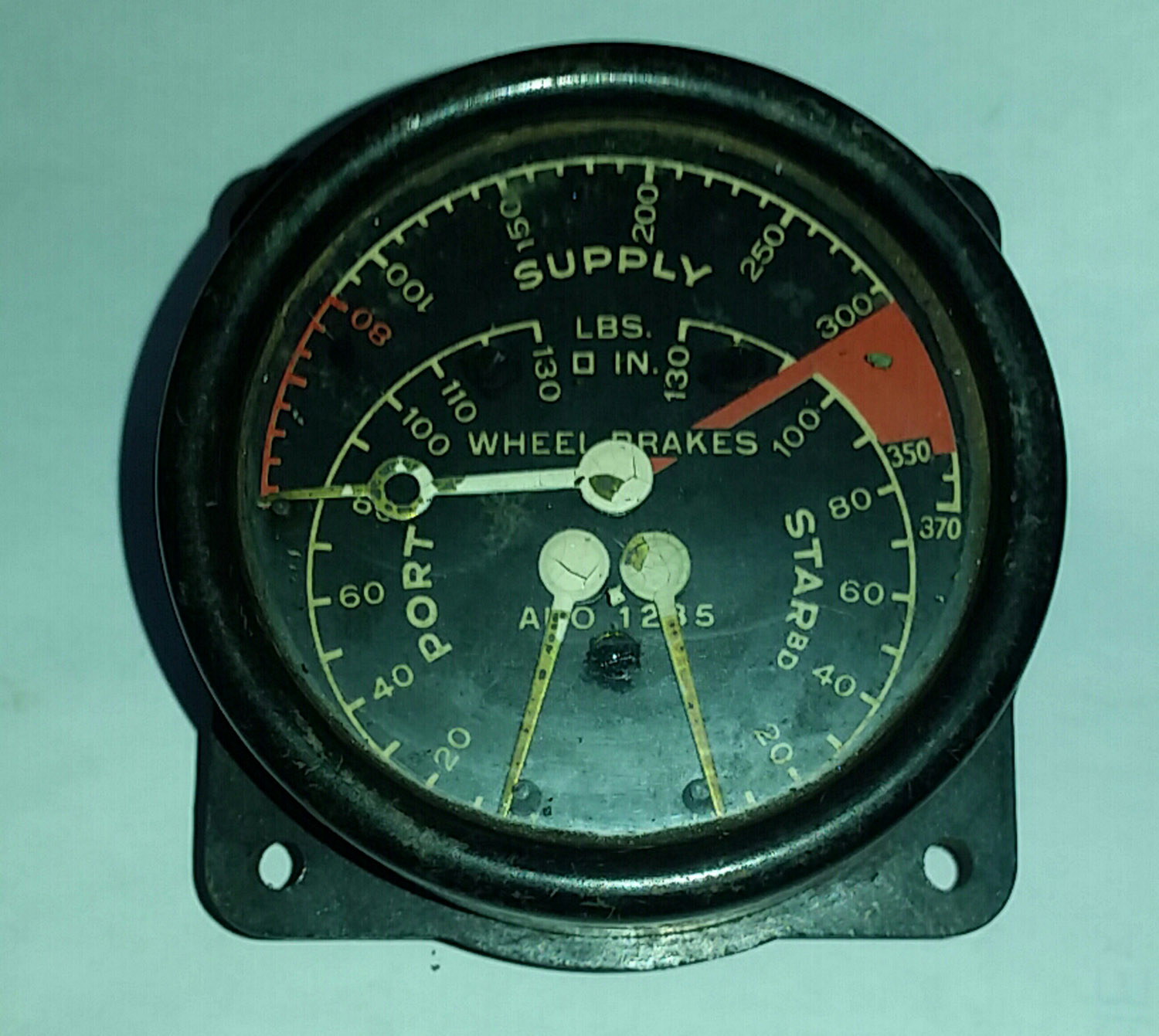

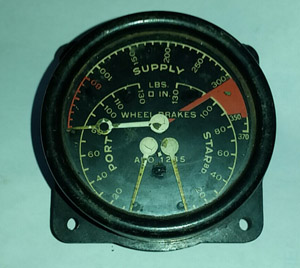

Triple Brake Gauge (Instruments pg 10 Brake gauges 4 )



AHO 1235

Out of stock more required please contact me

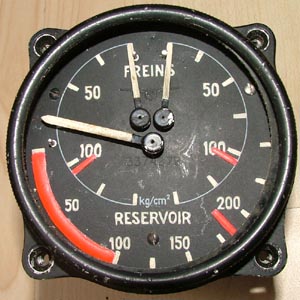

Freins Brake Gauge (Instruments pg 10 Brake gauges 6 )

French TBG

The glass is missing.

Monometre-Tripple

Hann and  Cie. SA Jeegenstoff. Instr.controle 12.37 F+W 35

£40



Click on the picture's to enlarge .

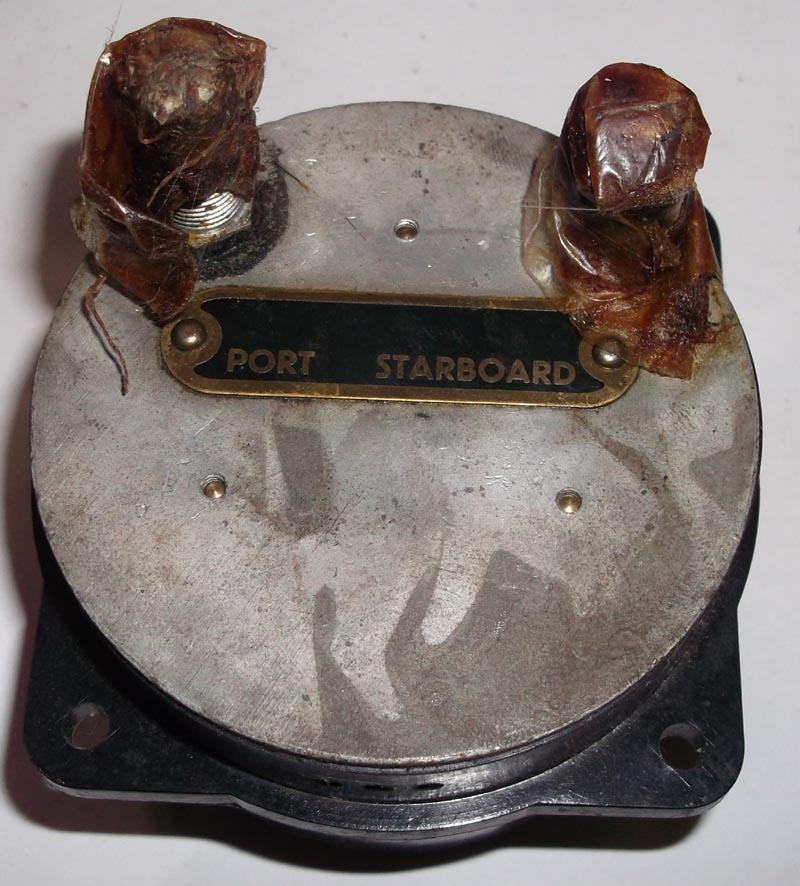

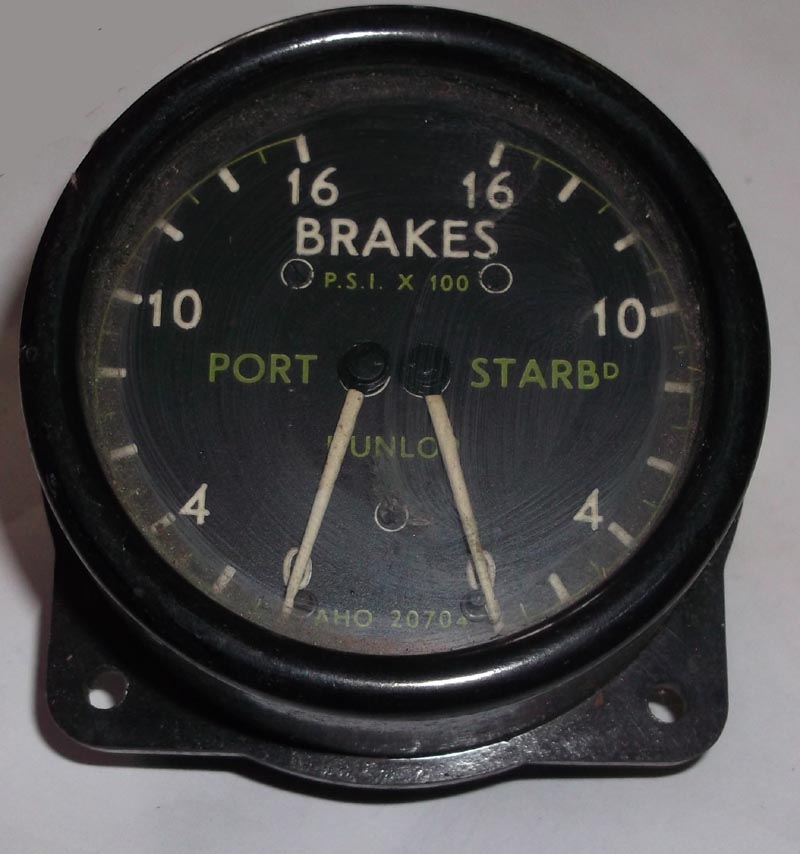

Twin Brake gauge (Instruments pg 10 Brake gauges 7 )

AHO 2070



£65

Click on the picture's to enlarge .

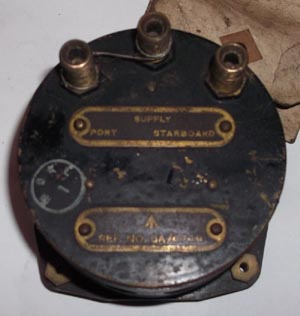

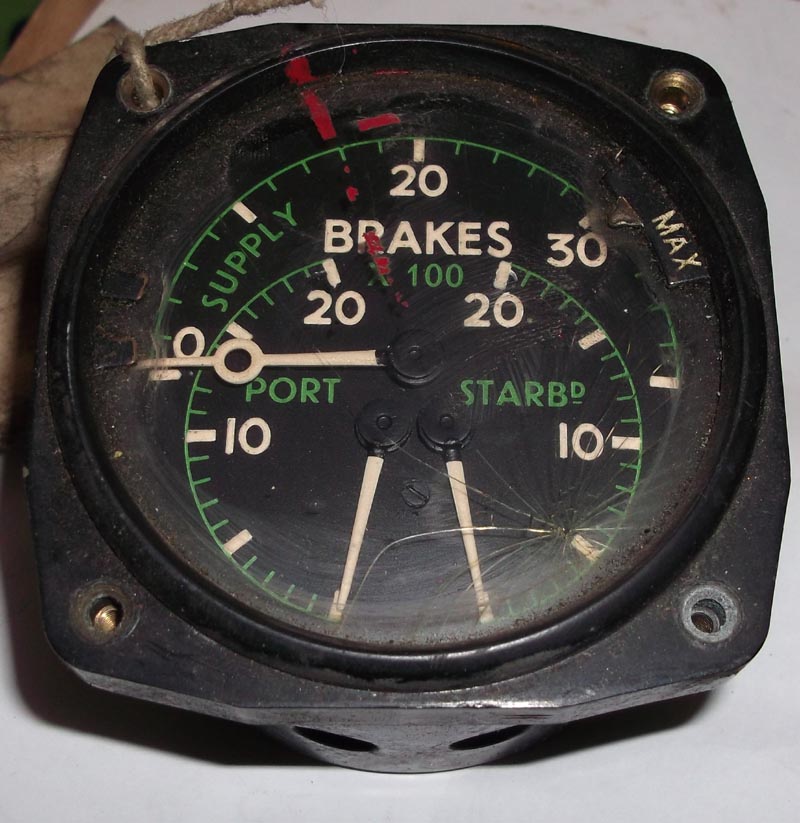

Triple Brake Gauge (Instruments pg 10 Brake gauges 13 )





6A/4740

The glass has some very small hairline cracks.

£45

Click on the picture's to enlarge .

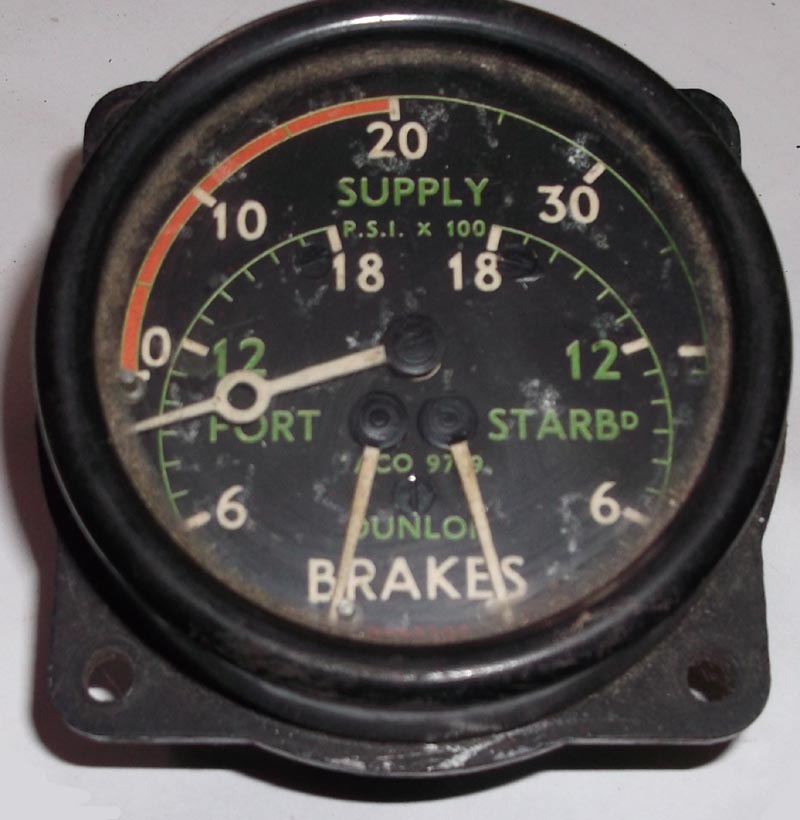

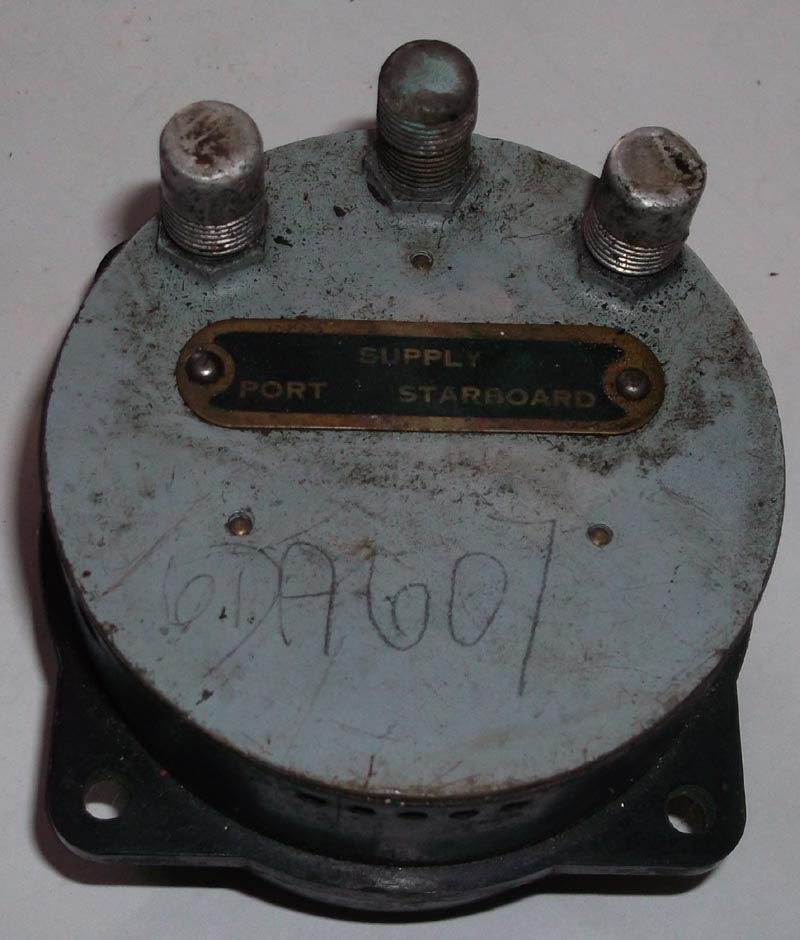

Triple Brake Gauge (Instruments pg 10 Brake gauges 15 )

ACO 9719



£95





Click on the picture's to enlarge .

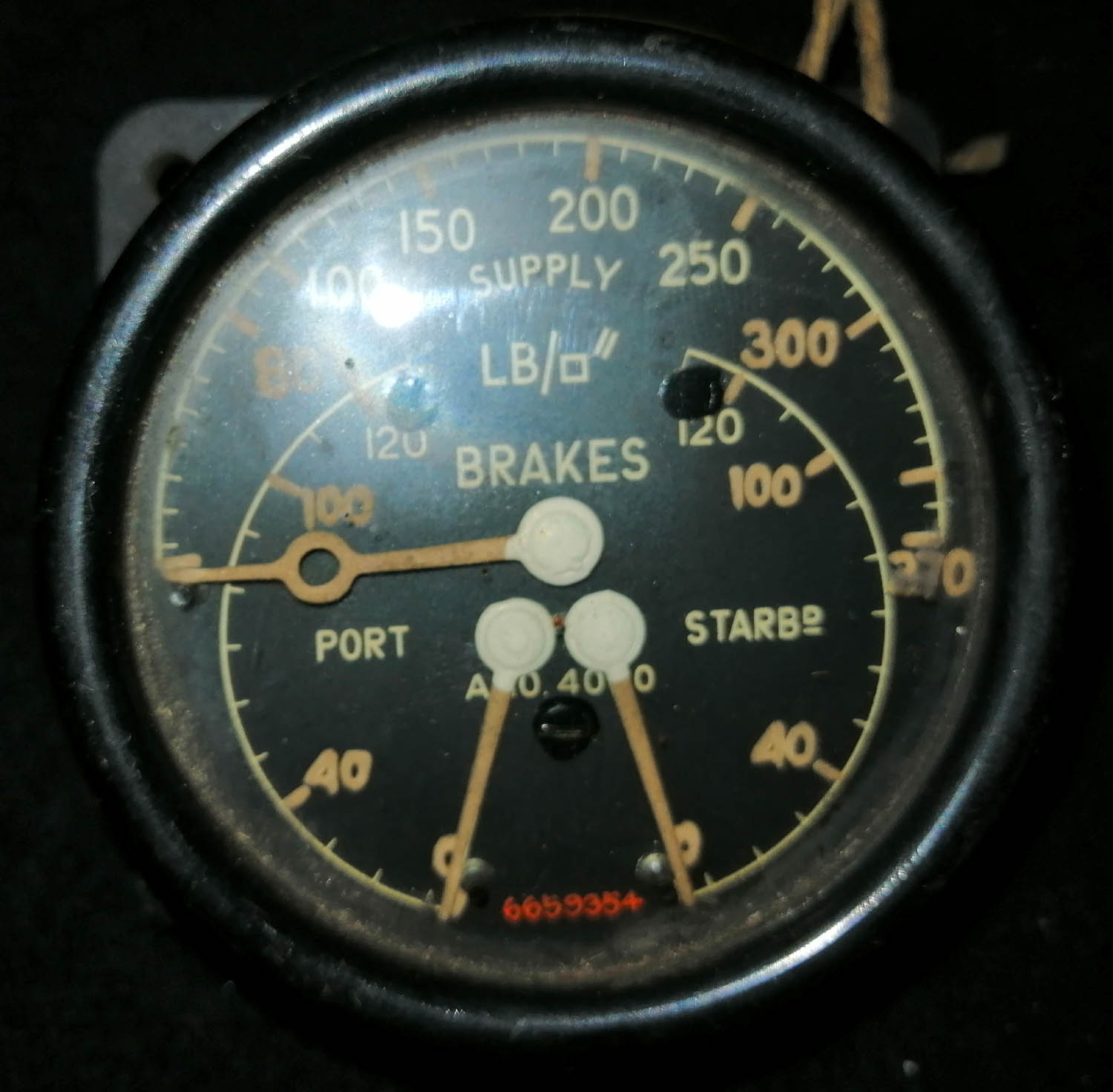

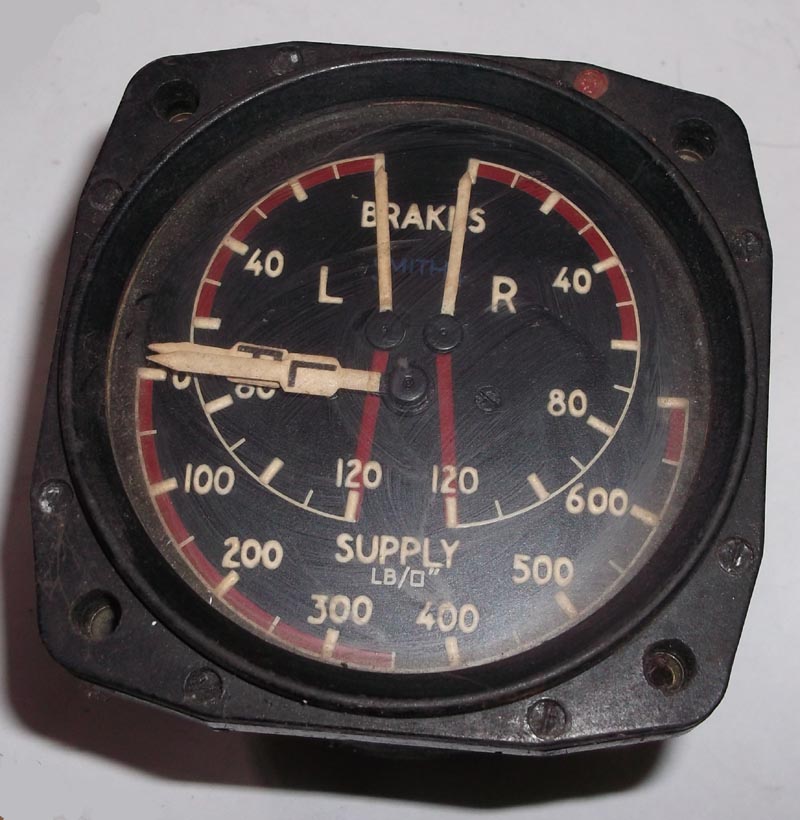

Spitfire Triple Brake Gauge AH0 4040 (Instruments pg 10 Brake gauges 17 )



Here is a triple brake gauge as used in the Spitfire

AH 4040

Nine in stock

£125
