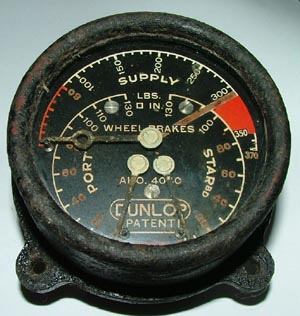

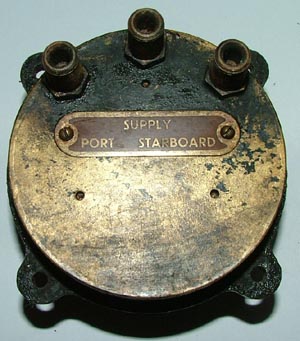

Really nice wartime triple brake gauge as fitted to all marks of Spitfire and many other Wartime RAF aircraft. This is unusual in that the case is metal most were bakelite. Some damage to the paint on the case.

N/A

MK VIII it has a service date of 1945 painted on the back . 6A/1313

Classic radiator temperature gauge with capillary. I have tested this instrument and it is working. Its a slightly out of focus picture but is a nice clean gauge. Quite a long capillary so probably for twin engine aircraft, possibly Mosquito or something similar.

£175

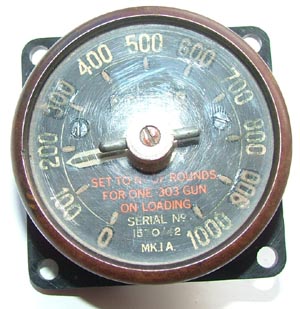

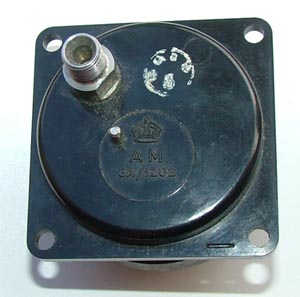

This is a superb 303 ammunition counter.

Dated 1942

Dated 1942

£225

API is an air position indicator.  You set the North and East as the aircraft’s initial position or from a fix point.  The True Course is the aircrafts magnetic heading offset using the VSC – variation setting control – to get a True Heading or True Course.  A feed is the aircraft’s airspeed corrected for temperature and height.  This then gives a position of where the aircraft would be assuming no wind.  As there is usually wind the position is its air position. Comparing the given air position with an updated fix we can calculate the wind over the previous period.

This instrument has one cracked lug see picture. This will not affect its appearance when mounted in a panel.

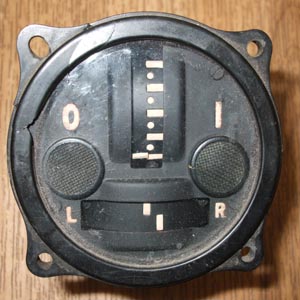

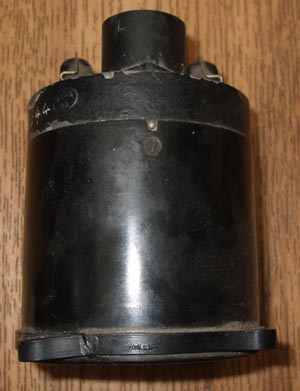

Beam approach, fitted to the Lancaster's main Pilots instrument Panel.

£55

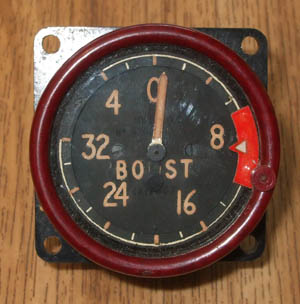

32Lb Boost Gauge 2 (pg9 ins)

Dated 1944

Good condition boost gauge dated 1944. Used in the Hawker Tempest and Typhoon. This is a generic instrument and probably used in other RAF Wartime aircraft.

£55

32Lb Boost Gauge 2 (pg9 ins)

Dated 1944

£55

For one Halifax crew on 6 October 1944, the presence of 610 Squadron’s Spitfires became a godsend.

Fuel Gauge Halifax Bomber (pg 9ins)

Good original condition. 400FG Fuel Port nose tank

£65

Mint T&S Sea Fury (pg9 ins)

This is mint Turn and slip used in Hawker Sea Fury's and other late piston fighters.

£40

Flap gauge 2 (pg9 ins)

£38

Flap gauge 3 (pg9 ins)

£38

Spitfire Cockpit

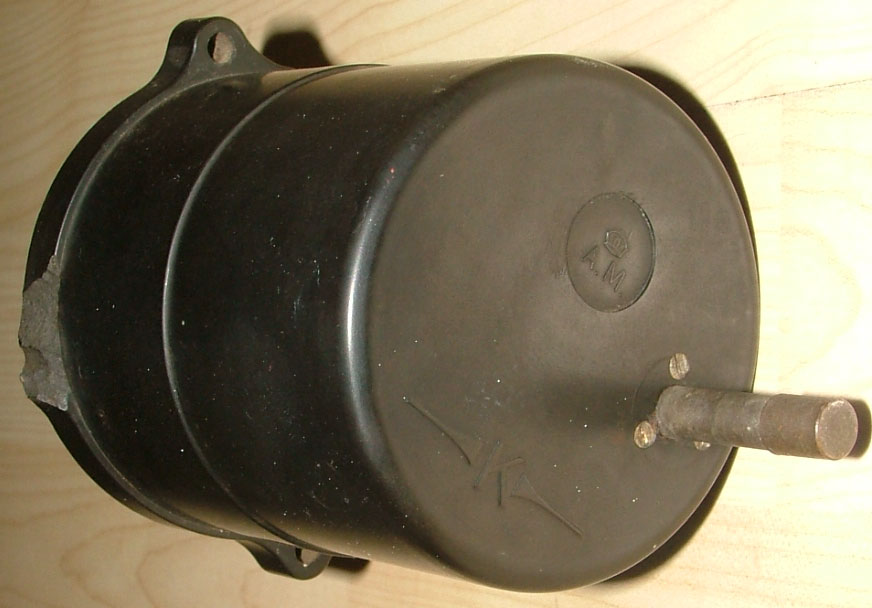

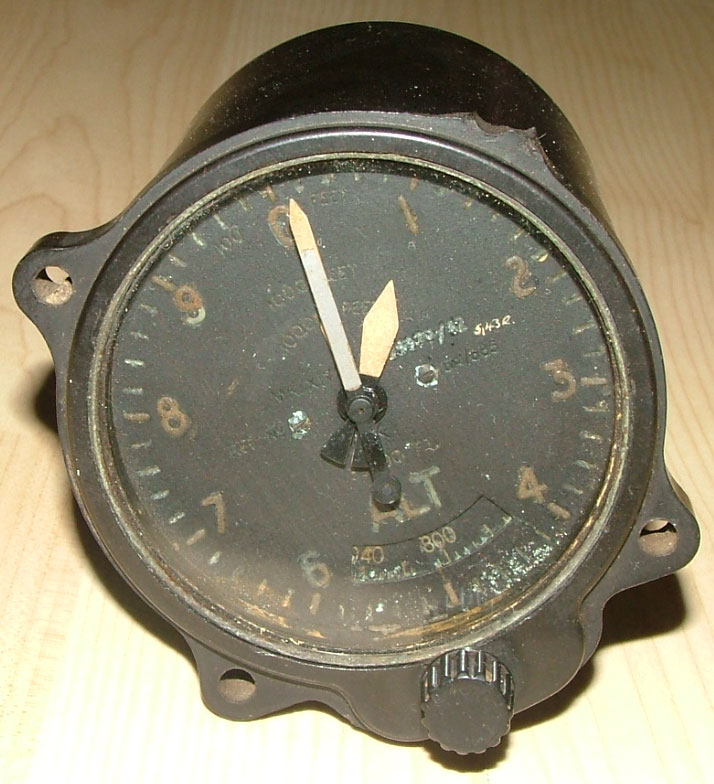

Kollsman Altimeter 1942 (pg9 ins)

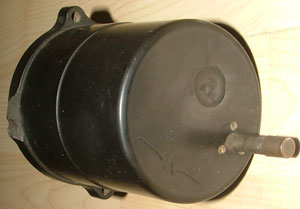

A really nice early altimeter fitted to Spitfire's Hurricanes and practically all other RAF Wartime aircraft. The top right lug is damaged. I don't know why but allot of these altimeter's have this lug either damaged or ground off. As the altimeter mounts from the back of the panel the broken lug won't be seen.

£115

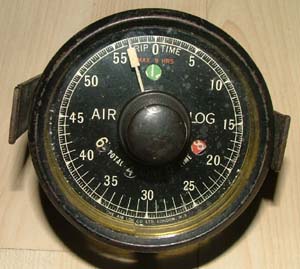

Air Log (pg9 ins)

Pre war instrument used for navigation. A quality, early piece when air navigation was in its infancy .

Made by Air Log Company Ltd  London W 9

£225

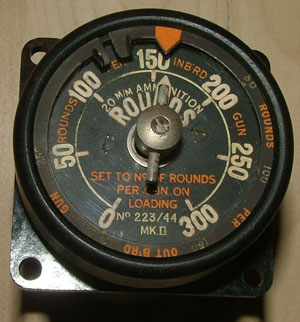

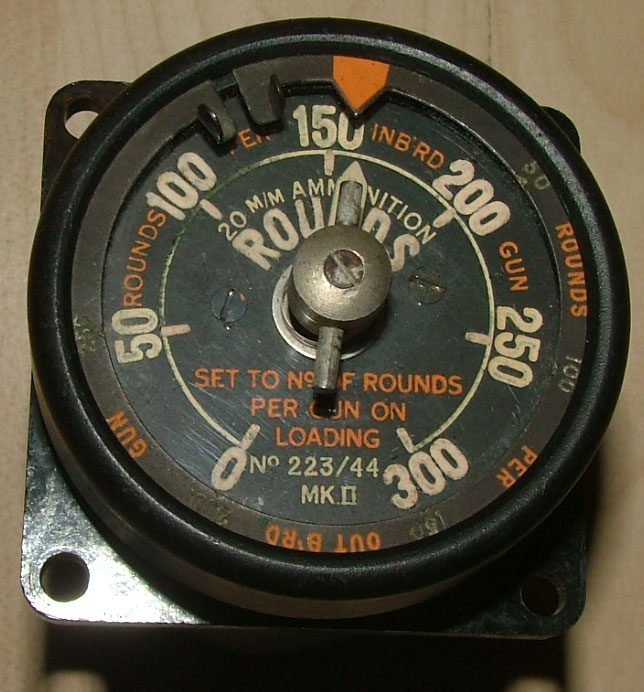

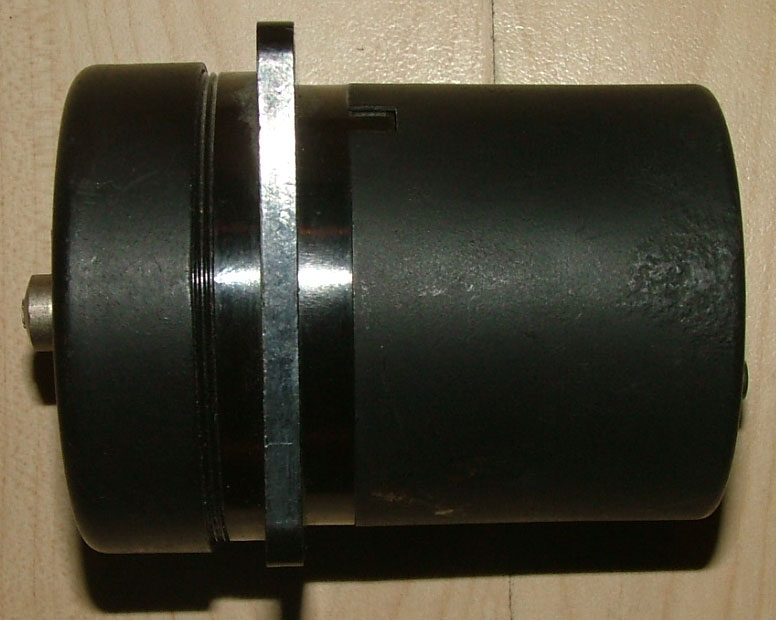

Cannon Round Counter (pg9 ins)

click on the picture's left to enlarge

Here's a super rare wartime item. It's a counter for the 20 mm cannon. These were needed due to the very limited supply of ammunition that the aeroplanes were able to carry. Some form of guide as to how much had been expended was therefore necessary. This instrument is in superb, original condition.

Click here to see 20mm cannon for sale in armaments.

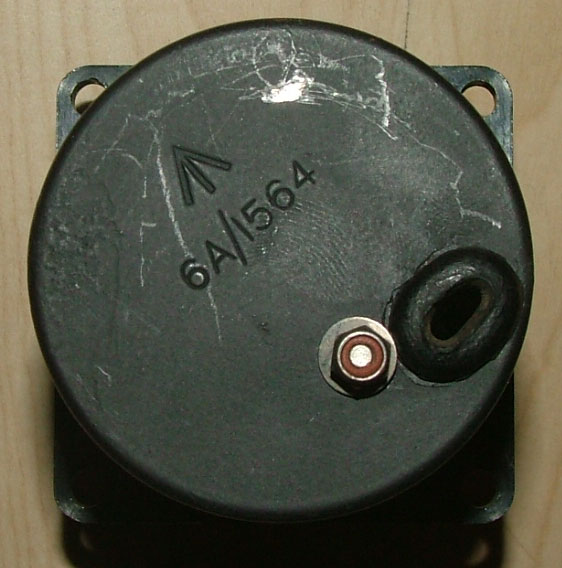

6A/1564

Dated 1944.

N/A

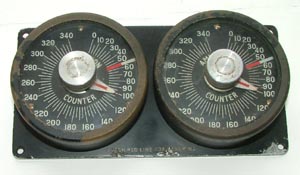

Ammo Counter G Turret(pg9ins)

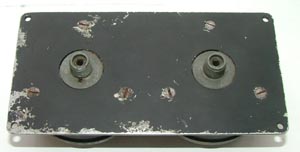

Here we have a really nice ammo counter for a Twin MG G type turret.

£175

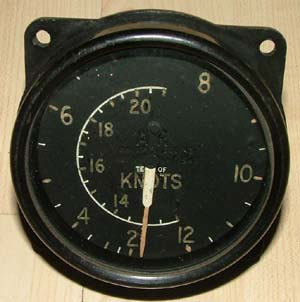

ASI 210 Knots Fairey Swordfish (pg9 ins)

Nice wartime airspeed indicator suitable for the legendary Fairey Swordfish, perhaps this one saw action as the frail string bags caused the destruction of the mighty Bismarck.

Dated 1943 A/M 6A/1543

N/A

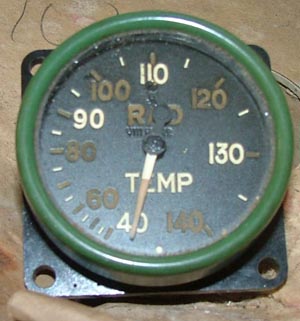

Radiator Temp Gauge 1942  (pg9 ins)

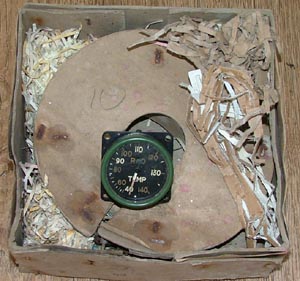

Classic  early type BOXED Radiator Temperature gauge with complete capillary, it has short capillary so for fighter use. Could have been fitted to an early Hurricane . It is also suitable for use in the early MK's of Spitfire. It is in its original box and in excellent condition. This gauge has quite a late 1942 date for this type of temp gauge.

June 1938- The Supermarine Spitfire, enters service with No. 19 Squadron at Duxford.

£325

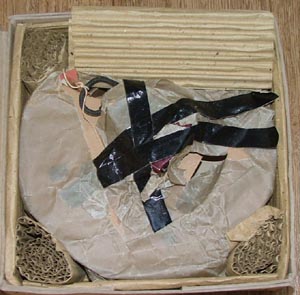

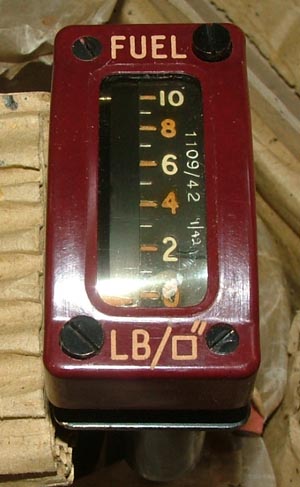

Fuel Pressure gauge (pg9 ins)

This is a superb piece, in mint boxed condition with a complete capillary. This type of gauge was fitted to the early Mks of Spitfire and Hurricane. This gauge is rare in any condition, this is the best example I have seen.

Dated 1942

N/A

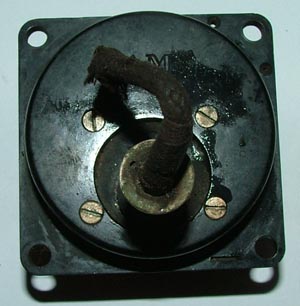

Early Type Oil Temp (pg9 ins)

This is the early type of oil temp gauge used in early Mk's of Spitfires, and Hurricanes. Suitable for use in our Mk1 Spitfire instrument panel. The capillary has been removed so for Display only.

Dated 1941

N/A

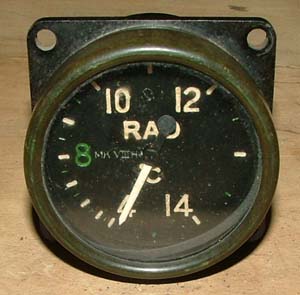

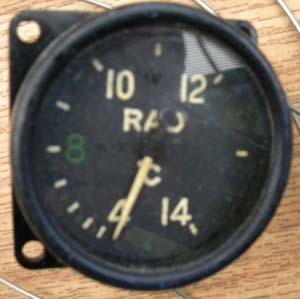

Early Type RAD Temp (pg9 ins)

This is the early type of Rad temp gauge used in early Mk's of Spitfires, and Hurricanes. Suitable for use in our Mk1 Spitfire instrument panel. The capillary has been removed so for Display only.

N/A

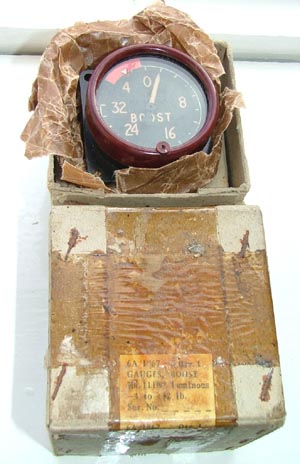

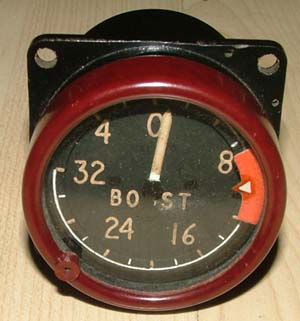

This is a mint boxed 32 Boost gauge used in the Hawker Tempest, Sea Fury, and Typhoon.

Pictured under the Hawker Tempest

This boost gauge is dated 1944

N/A

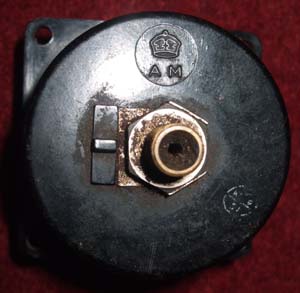

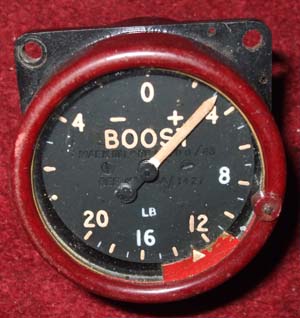

A 20Lb Boost gauge in excellent condition. Suitable for use in a MK IX or MK VIII Spitfire. The MK IX entered service in July 1942 rushed into to service to combat the threat of the FW 190. Some would say that the MK IX is the most classic Spitfire being a superb balance between power and handling.

Pictured under the Classic MK IX Spitfire.

This boost gauge is dated 1943

6A/1427

N/A

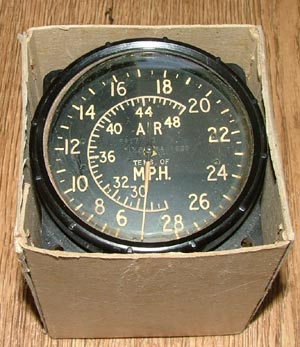

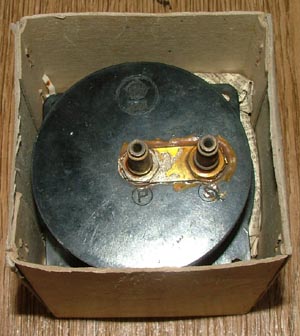

Classic 480 MPH Spitfire ASI. Used exclusively in the later Spitfire Mks and the Mosquito replacing the earlier 400MPH ASI. This one comes in an original box and is in excellent condition. It carry's an early 1941 date. Suitable for use in the MK V Spitfire onwards.

Pictured under the  MK V Spitfire.

N/A

Sea Otter fuel gauge (pg9 ins)

The Sea Otter was broadly based on the Walrus, with a tractor engine and more refined construction. It could be either Carrier or shore based and served with the RAF Coastal Command and the Fleet Air Arm. It consisted of two marks, Mk I Amphibian with optional under wing bombs or depth charges and the A.S.R. Mk II Air/Sea rescue version. The first production aircraft was delivered in August 1943, and a total of 4 had been delivered by the end of the year, the rest been delivered in 1944 and 1945. The Sea Otter was the last biplane to enter RAF and FAA service in 1944. A total of 292 were built mainly for the FAA although only 94 had been delivered by August 1945.

FG176

£65
